Dockerfile – Build & Package Java Microservice (Spring Boot)¶

Docker Concepts Covered¶

Do You Want to Know What Docker Concepts Power This Real-World Retail Store Microservices Application?

Docker Concepts Covered

Step-01: What You’ll Learn¶

In this demo, you’ll build a production-grade Docker image for a Java-based Spring Boot microservice using multi-stage builds and best practices tailored for AWS environments.

You’ll learn how to:

✅ Write a multi-stage Dockerfile using Amazon Linux 2023 as the base image
✅ Build and package a Java (Spring Boot) app using Maven
✅ Secure your container by creating a non-root user
✅ Use .dockerignore to keep the image clean and fast to build
✅ Understand Docker layer caching and how to structure builds efficiently
✅ Validate your image using docker exec and inspect the container contents
✅ Rebuild from scratch using --no-cache
✅ Clean up all Docker build artifacts and system clutter
✅ Grasp the “why” behind multi-stage builds for smaller, safer, and faster images

This is the most complete and realistic Dockerfile example in the course — designed to prepare you for real-world DevOps pipelines.

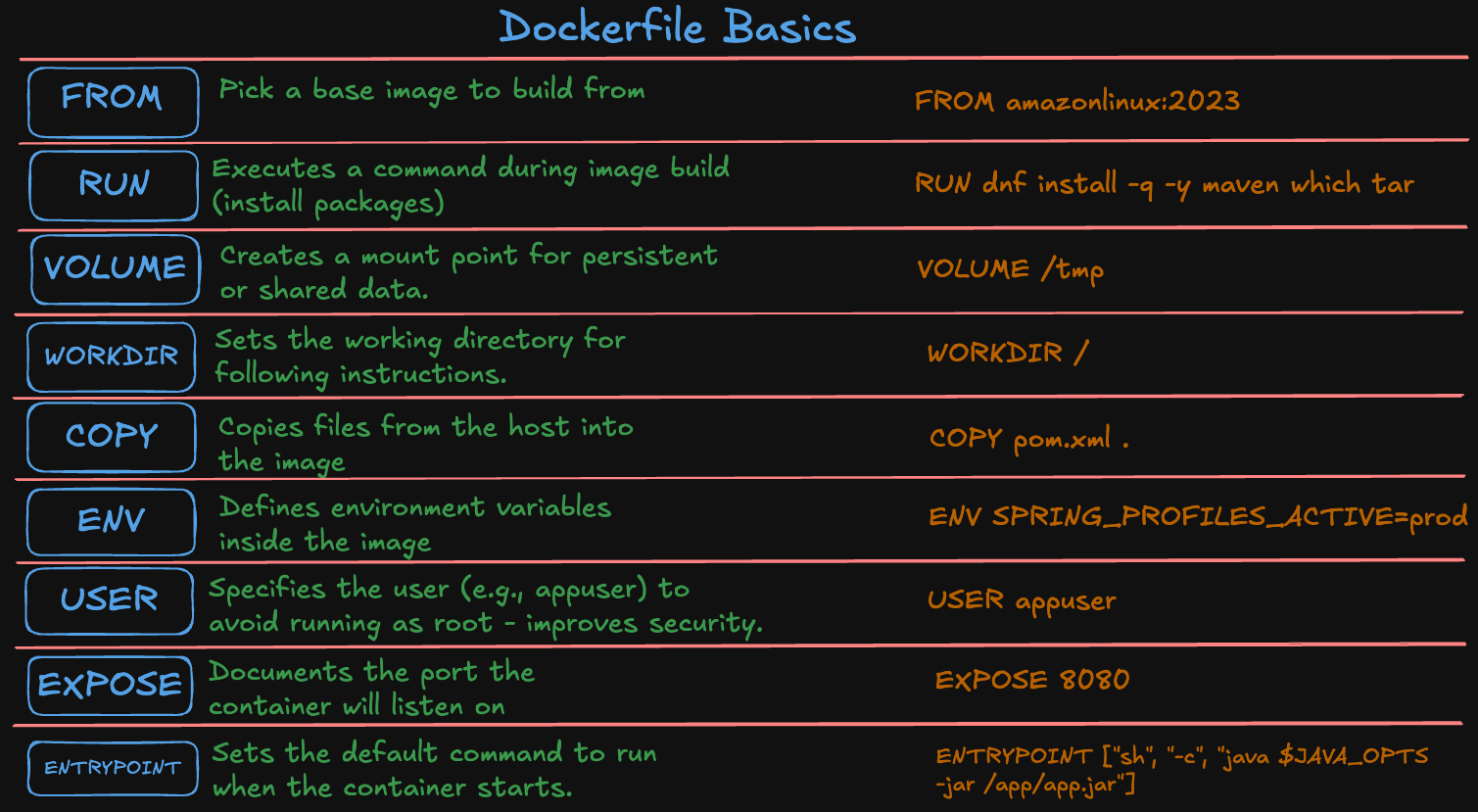

Dockerfile Basics

Step-02: Multi-stage Dockerfile¶

Step-02-01: Multi-stage Docker Builds - Dockerfile Breakdown¶

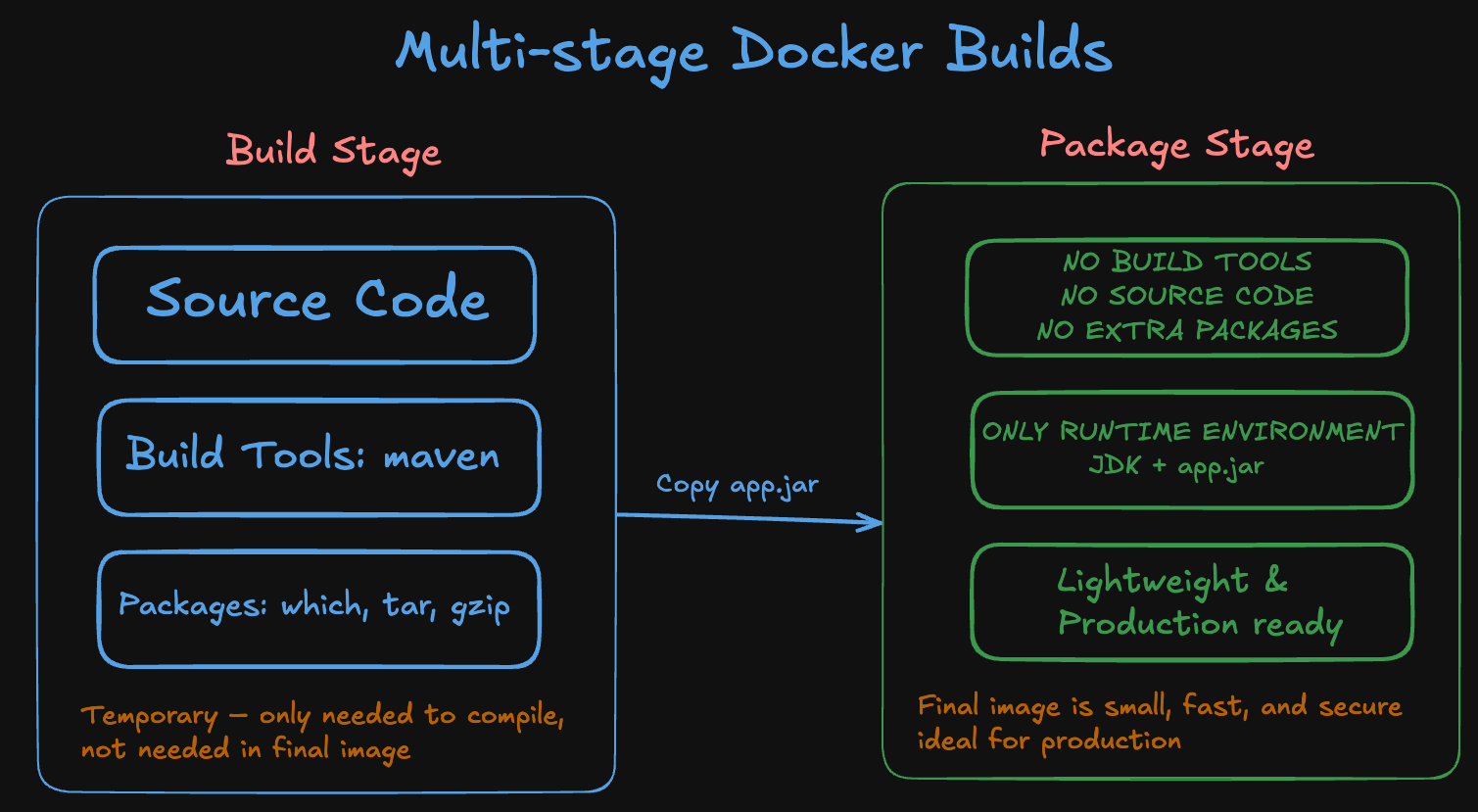

Multi-stage Docker Builds

Step-02-02: Multi-stage Docker Builds - Dockerfile Instructions¶

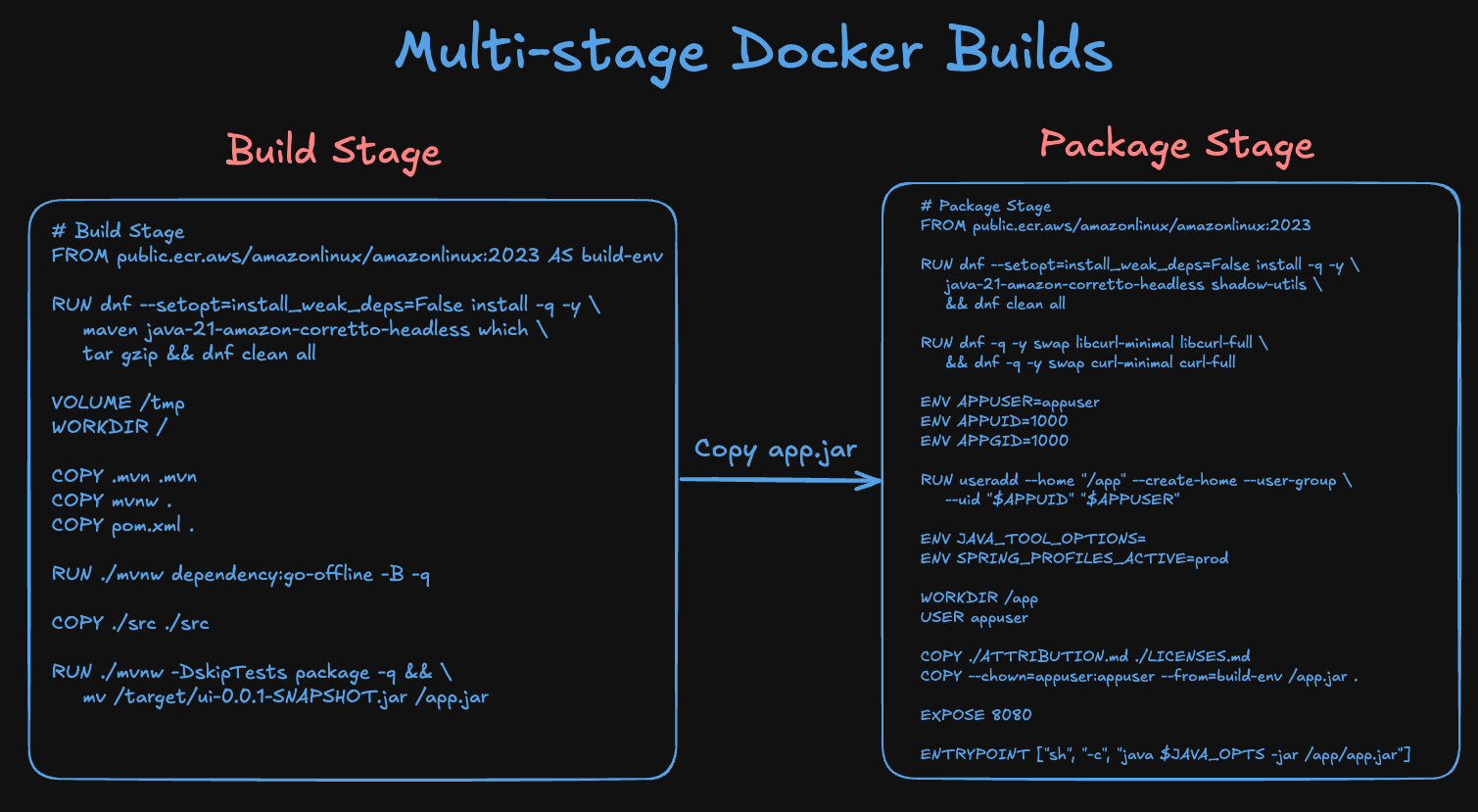

Multi-stage Docker Builds - Dockerfile Instructions

Step-02-03: Build Stage¶

# Build Stage
FROM public.ecr.aws/amazonlinux/amazonlinux:2023 AS build-env

# We tell DNF not to install Recommends and Suggests packages, keeping our
# installed set of packages as minimal as possible.
RUN dnf --setopt=install_weak_deps=False install -q -y \
    maven \
    java-21-amazon-corretto-headless \
    which \
    tar \
    gzip \
    && \
    dnf clean all

VOLUME /tmp
WORKDIR /

COPY .mvn .mvn
COPY mvnw .
COPY pom.xml .

RUN ./mvnw dependency:go-offline -B -q

COPY ./src ./src

RUN ./mvnw -DskipTests package -q && \
    mv /target/ui-0.0.1-SNAPSHOT.jar /app.jar

Compiles the Java code and builds the JAR file

Step-02-04: Package Stage¶

# Package Stage
FROM public.ecr.aws/amazonlinux/amazonlinux:2023

# We tell DNF not to install Recommends and Suggests packages, which are
# weak dependencies in DNF terminology, thus keeping our installed set of
# packages as minimal as possible.
RUN dnf --setopt=install_weak_deps=False install -q -y \
    java-21-amazon-corretto-headless \
    shadow-utils \
    && \
    dnf clean all

# use curl-full to use "telnet://" scheme
# https://docs.aws.amazon.com/linux/al2023/ug/curl-minimal.html
RUN dnf -q -y swap libcurl-minimal libcurl-full \
    && dnf -q -y swap curl-minimal curl-full

ENV APPUSER=appuser
ENV APPUID=1000
ENV APPGID=1000

RUN useradd \
    --home "/app" \
    --create-home \
    --user-group \
    --uid "$APPUID" \
    "$APPUSER"

ENV JAVA_TOOL_OPTIONS=
ENV SPRING_PROFILES_ACTIVE=prod

WORKDIR /app
USER appuser

COPY ./ATTRIBUTION.md ./LICENSES.md
COPY --chown=appuser:appuser --from=build-env /app.jar .

EXPOSE 8080

ENTRYPOINT ["sh", "-c", "java $JAVA_OPTS -jar /app/app.jar"]

✅ Runs the app securely with minimal footprint and proper user permissions

Step-03: `.dockerignore` – Clean Build Context¶

The .dockerignore file ensures that large or unnecessary files don’t get sent to Docker during image builds:

.dockerignore
├── Dockerfile
├── docker-compose.yml
├── target/
├── .idea/
├── scripts/
└── chart/

This avoids:

Accidentally copying source code, build artifacts, or configs
Slower build context uploads
Larger image layers

Step-04: Build the Docker Image¶

Run this command from the root of the project:

# Change to Directory
cd retail-store-sample-app-1.2.4/src/ui

# Verify if Dockerfile exists
ls Dockerfile
cat Dockerfile

# Build Docker Image
docker build -t retail-ui:9.0.0 .

Tag your image as needed (retail-ui is just an example)

Step-05: Run the Container¶

docker run -d --name retail-ui -p 8080:8080 retail-ui:9.0.0

Step-06: Verify It's Running¶

docker ps
http://<EC2-Instance-Public-Ip>:8080/actuator/health
http://<EC2-Instance-Public-Ip>:8080/topology

You should see "status":"UP" from the Spring Boot app

Step-07: Validation¶

Step-07-01: Multi-Stage Build Success¶

When you build the image, Docker clearly shows that it's using a multi-stage build:

docker build -t retail-ui:9.0.0 .

Example output (shortened for clarity):

 => [build-env 2/9] RUN dnf ... maven ...                   ✅ Build stage (with Maven)
 => [stage-1 2/7] RUN dnf ... java-21 ...                  ✅ Runtime stage (minimal)
 => [stage-1 7/7] COPY --from=build-env /app.jar .         ✅ Copying only JAR from build stage

Full sample output for reference - IT TOOK 110 seconds

[ec2-user@ip-172-31-91-179 ui]$ docker build -t retail-ui:9.0.0 .
[+] Building 110.1s (19/19) FINISHED                                                                                         docker:default
 => [internal] load build definition from Dockerfile                                                                                   0.0s
 => => transferring dockerfile: 1.69kB                                                                                                 0.0s
 => [internal] load metadata for public.ecr.aws/amazonlinux/amazonlinux:2023                                                           0.4s
 => [internal] load .dockerignore                                                                                                      0.0s
 => => transferring context: 180B                                                                                                      0.0s
 => [internal] load build context                                                                                                      0.2s
 => => transferring context: 5.02MB                                                                                                    0.2s
 => [build-env 1/9] FROM public.ecr.aws/amazonlinux/amazonlinux:2023@sha256:4308d53aeabb6df156feb75ff6fd7cef02f0fede70478c81d7a723667  5.3s
 => => resolve public.ecr.aws/amazonlinux/amazonlinux:2023@sha256:4308d53aeabb6df156feb75ff6fd7cef02f0fede70478c81d7a7236678cddd98     0.0s
 => => sha256:4308d53aeabb6df156feb75ff6fd7cef02f0fede70478c81d7a7236678cddd98 770B / 770B                                             0.0s
 => => sha256:02ab4eb0f2a4e9f40ed045e2d1b2602a7d3738d093b81b5594800f4aee0d835d 528B / 528B                                             0.0s
 => => sha256:a0dd29a1b2dc72f0e749685dc8d87e856e37879b0afab390e17d2ab025ed680b 662B / 662B                                             0.0s
 => => sha256:9ae3de3e5fc6c1122d692f6546a745b7ce4f1aa52c0016fa12d785f02607025f 53.84MB / 53.84MB                                       0.5s
 => => extracting sha256:9ae3de3e5fc6c1122d692f6546a745b7ce4f1aa52c0016fa12d785f02607025f                                              4.6s
 => [build-env 2/9] RUN dnf --setopt=install_weak_deps=False install -q -y     maven     java-21-amazon-corretto-headless     which   44.9s
 => [stage-1 2/7] RUN dnf --setopt=install_weak_deps=False install -q -y     java-21-amazon-corretto-headless     shadow-utils     &  35.0s
 => [stage-1 3/7] RUN dnf -q -y swap libcurl-minimal libcurl-full     && dnf -q -y swap curl-minimal curl-full                        21.5s
 => [build-env 3/9] COPY .mvn .mvn                                                                                                     0.1s
 => [build-env 4/9] COPY mvnw .                                                                                                        0.1s
 => [build-env 5/9] COPY pom.xml .                                                                                                     0.0s
 => [build-env 6/9] RUN ./mvnw dependency:go-offline -B -q                                                                            35.6s
 => [stage-1 4/7] RUN useradd     --home "/app"     --create-home     --user-group     --uid "1000"     "appuser"                      0.8s
 => [stage-1 5/7] WORKDIR /app                                                                                                         0.1s
 => [stage-1 6/7] COPY ./ATTRIBUTION.md ./LICENSES.md                                                                                  0.0s
 => [build-env 7/9] COPY ./src ./src                                                                                                   0.1s
 => [build-env 8/9] RUN ./mvnw -DskipTests package -q &&     mv /target/ui-0.0.1-SNAPSHOT.jar /app.jar                                20.6s
 => [stage-1 7/7] COPY --chown=appuser:appuser --from=build-env /app.jar .                                                             0.0s
 => exporting to image                                                                                                                 2.1s
 => => exporting layers                                                                                                                2.1s
 => => writing image sha256:6b898a0747d0f282e85c8e5638d2144768d65e1708b7d2fa744c2cb3cfefa17b                                           0.0s
 => => naming to docker.io/library/retail-ui:9.0.0                                                                                     0.0s
[ec2-user@ip-172-31-91-179 ui]$

Step-07-02: Key Observations:¶

build-env installs tools like Maven and compiles the app.
stage-1 is clean — it only installs runtime dependencies and copies the JAR.
The final image does NOT include source code or Maven, keeping it secure and lightweight.

Step-07-03: Inspect Final Image¶

You can confirm that Maven or source files don’t exist in the final image:

# List Docker containers
docker ps

# Connect to Docker Container
docker exec -it retail-ui sh

# Inside the container
which mvn          # → should return "sh: which: command not found"
ls /src            # → should say "No such file or directory"

This shows your final image is production-optimized.

Step-08: Cleanup¶

docker stop retail-ui
docker rm retail-ui
docker rmi retail-ui:9.0.0

Step-08: Docker Layer Caching (Build Optimization)¶

Docker builds images in layers, and each instruction (RUN, COPY, ENV, etc.) becomes a separate layer.

When you re-run:

docker build -t retail-ui:9.0.0 .

Docker skips redundant steps by reusing cached layers — as seen in your log:

=> CACHED [build-env 2/9] RUN dnf install ...
=> CACHED [build-env 3/9] COPY .mvn .mvn
=> CACHED [build-env 8/9] RUN ./mvnw package ...
=> CACHED [stage-1 7/7] COPY --from=build-env /app.jar .

Full sample for reference¶

It took 0.3 seconds to build

[ec2-user@ip-172-31-91-179 ui]$ docker build -t retail-ui:9.0.0 .
[+] Building 0.3s (19/19) FINISHED                                                                                           docker:default
 => [internal] load build definition from Dockerfile                                                                                   0.0s
 => => transferring dockerfile: 1.69kB                                                                                                 0.0s
 => [internal] load metadata for public.ecr.aws/amazonlinux/amazonlinux:2023                                                           0.2s
 => [internal] load .dockerignore                                                                                                      0.0s
 => => transferring context: 180B                                                                                                      0.0s
 => [internal] load build context                                                                                                      0.0s
 => => transferring context: 34.20kB                                                                                                   0.0s
 => [build-env 1/9] FROM public.ecr.aws/amazonlinux/amazonlinux:2023@sha256:4308d53aeabb6df156feb75ff6fd7cef02f0fede70478c81d7a723667  0.0s
 => CACHED [stage-1 2/7] RUN dnf --setopt=install_weak_deps=False install -q -y     java-21-amazon-corretto-headless     shadow-utils  0.0s
 => CACHED [stage-1 3/7] RUN dnf -q -y swap libcurl-minimal libcurl-full     && dnf -q -y swap curl-minimal curl-full                  0.0s
 => CACHED [stage-1 4/7] RUN useradd     --home "/app"     --create-home     --user-group     --uid "1000"     "appuser"               0.0s
 => CACHED [stage-1 5/7] WORKDIR /app                                                                                                  0.0s
 => CACHED [stage-1 6/7] COPY ./ATTRIBUTION.md ./LICENSES.md                                                                           0.0s
 => CACHED [build-env 2/9] RUN dnf --setopt=install_weak_deps=False install -q -y     maven     java-21-amazon-corretto-headless       0.0s
 => CACHED [build-env 3/9] COPY .mvn .mvn                                                                                              0.0s
 => CACHED [build-env 4/9] COPY mvnw .                                                                                                 0.0s
 => CACHED [build-env 5/9] COPY pom.xml .                                                                                              0.0s
 => CACHED [build-env 6/9] RUN ./mvnw dependency:go-offline -B -q                                                                      0.0s
 => CACHED [build-env 7/9] COPY ./src ./src                                                                                            0.0s
 => CACHED [build-env 8/9] RUN ./mvnw -DskipTests package -q &&     mv /target/ui-0.0.1-SNAPSHOT.jar /app.jar                          0.0s
 => CACHED [stage-1 7/7] COPY --chown=appuser:appuser --from=build-env /app.jar .                                                      0.0s
 => exporting to image                                                                                                                 0.0s
 => => exporting layers                                                                                                                0.0s
 => => writing image sha256:f7926260b96add6e5db99a0c0555af4c429e64dfaba7d8e1d6e4c855e018f5aa                                           0.0s
 => => naming to docker.io/library/retail-ui:9.0.0                                                                                     0.0s
[ec2-user@ip-172-31-91-179 ui]$

Step-09: Why Caching Matters¶

Benefit	Description
Faster builds	Only changed layers are rebuilt
Quicker dev feedback	Recompile only what changes (e.g., source code)
Smaller image pushes	Only new layers are pushed to the registry
Clean structure	Enforces logical, cacheable Dockerfile layout

Step-09: Clean Up (if needed)¶

If you want to rebuild from scratch and ignore cache:

docker build --no-cache -t retail-ui:10.0.0 .

Sample Output Reference¶

[ec2-user@ip-172-31-91-179 ui]$ docker build --no-cache -t retail-ui:10.0.0 .
[+] Building 101.1s (19/19) FINISHED                                                                                         docker:default
 => [internal] load build definition from Dockerfile                                                                                   0.0s
 => => transferring dockerfile: 1.69kB                                                                                                 0.0s
 => [internal] load metadata for public.ecr.aws/amazonlinux/amazonlinux:2023                                                           0.2s
 => [internal] load .dockerignore                                                                                                      0.0s
 => => transferring context: 180B                                                                                                      0.0s
 => [internal] load build context                                                                                                      0.1s
 => => transferring context: 34.20kB                                                                                                   0.0s
 => CACHED [build-env 1/9] FROM public.ecr.aws/amazonlinux/amazonlinux:2023@sha256:4308d53aeabb6df156feb75ff6fd7cef02f0fede70478c81d7  0.0s
 => [stage-1 2/7] RUN dnf --setopt=install_weak_deps=False install -q -y     java-21-amazon-corretto-headless     shadow-utils     &  34.0s
 => [build-env 2/9] RUN dnf --setopt=install_weak_deps=False install -q -y     maven     java-21-amazon-corretto-headless     which   42.3s
 => [stage-1 3/7] RUN dnf -q -y swap libcurl-minimal libcurl-full     && dnf -q -y swap curl-minimal curl-full                        20.2s
 => [build-env 3/9] COPY .mvn .mvn                                                                                                     0.1s
 => [build-env 4/9] COPY mvnw .                                                                                                        0.0s
 => [build-env 5/9] COPY pom.xml .                                                                                                     0.0s
 => [build-env 6/9] RUN ./mvnw dependency:go-offline -B -q                                                                            33.2s
 => [stage-1 4/7] RUN useradd     --home "/app"     --create-home     --user-group     --uid "1000"     "appuser"                      0.6s
 => [stage-1 5/7] WORKDIR /app                                                                                                         0.1s
 => [stage-1 6/7] COPY ./ATTRIBUTION.md ./LICENSES.md                                                                                  0.1s
 => [build-env 7/9] COPY ./src ./src                                                                                                   0.1s
 => [build-env 8/9] RUN ./mvnw -DskipTests package -q &&     mv /target/ui-0.0.1-SNAPSHOT.jar /app.jar                                21.2s
 => [stage-1 7/7] COPY --chown=appuser:appuser --from=build-env /app.jar .                                                             0.1s
 => exporting to image                                                                                                                 2.8s
 => => exporting layers                                                                                                                2.8s
 => => writing image sha256:ec768c3fda979f0aabe8f22a5c4d35019ed0fe8d95a5788ac6054a41f9ee0a0c                                           0.0s
 => => naming to docker.io/library/retail-ui:10.0.0                                                                                    0.0s
[ec2-user@ip-172-31-91-179 ui]$

Step-10: Bonus: Why Multi-Stage Builds?¶

Keeps final image small (runtime-only)
No Maven or src/ files in production image
Faster and safer deploys

Step-11: Remove All Build Cache**¶

docker builder prune

Prompts for confirmation. Add -f to skip prompt:

docker builder prune -f

Step-12: Remove ALL Build Cache (including unused images and layers)¶

docker builder prune --all

Add -f to confirm without prompt:

docker builder prune --all -f

This will clear all cache layers, including those from old builds or untagged images.

Step-13: Clean Everything Unused (Stopped containers, volumes, networks, cache, images)**¶

docker system prune

To clean everything including volumes:

docker system prune --volumes

Add -f for full cleanup with no prompt:

# List Images
docker images

# Full Clean-Up (DISASTER OPTION)
docker system prune -a --volumes -f

# List Images
docker images

Important Note: 🔥🔥🔥🔥🔥🔥🔥 Be Careful: 🔥🔥🔥🔥🔥🔥🔥🔥

These commands will remove unused containers/images, so only run them when you're sure it's safe.
