Terraform Modules - Convert VPC Terraform Resources to a re-usable Terraform Module¶
This project demonstrates how to convert a basic VPC configuration into a reusable Terraform module for better maintainability and reusability across environments.

Step-01: Project Structure¶
06\_07\_vpc\_module/
└── terraform-manifests/
├── modules/
│ └── vpc/
│ ├── datasources-and-locals.tf
│ ├── main.tf
│ ├── outputs.tf
│ ├── variables.tf
│ └── README.md
├── c1-versions.tf
├── c2-variables.tf
├── c3-vpc.tf
├── c4-outputs.tf
├── terraform.tfvars
└── README.md

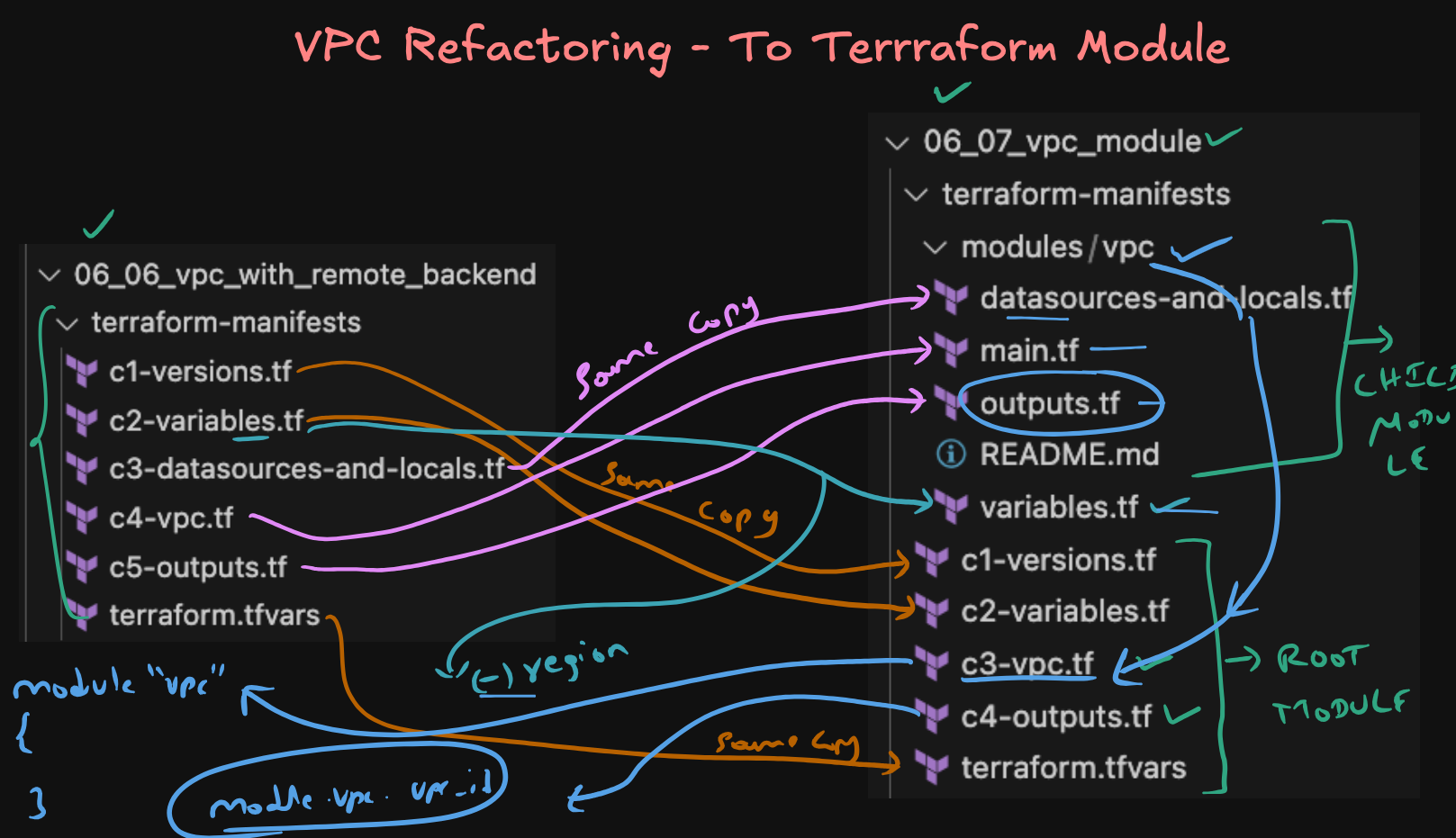

Step-02: VPC Refactoring: From Flat to Modular (06_06 → 06_07)¶

| 06_06_vpc_with_remote_backend | 06_07_vpc_module | Purpose / Transformation Description |
|---|---|---|
c1-versions.tf |
c1-versions.tf |
Same — Provider & required Terraform versions |
c2-variables.tf |
c2-variables.tf |
Same — Root-level variables passed to the module |
c3-datasources-and-locals.tf |
modules/vpc/datasources-and-locals.tf |
Moved to module — Subnet CIDRs and AZ lookup logic |
c4-vpc.tf |
modules/vpc/main.tf |
Split into reusable VPC logic inside the module |
c5-outputs.tf |
modules/vpc/outputs.tf and c4-outputs.tf |
Split — Module exports and root-level passthrough |
terraform.tfvars |
terraform.tfvars |
Same — environment-specific values for root module |
c2-variables.tf |
modules/vpc/variables.tf |
Same - Declares module-level input variables aws_region removed at module-level |
| (not applicable) | modules/vpc/README.md |
NEW — Documentation for the reusable VPC module |
| (not applicable) | c3-vpc.tf (root) |
NEW — Instantiates module "vpc" and passes inputs |
Step-03: Module Files Breakdown¶
| File | Purpose |
|---|---|
modules/vpc/main.tf |
Core VPC resource definitions |
modules/vpc/variables.tf |
Inputs required by the VPC module |
modules/vpc/outputs.tf |
Outputs exported by the module |
modules/vpc/datasources-and-locals.tf |
Contains data blocks and locals |
modules/vpc/README.md |
(Optional) Add usage documentation for the module |
Step-04: How to Use?¶
From the terraform-manifests/ folder:
```bash
Initialize Terraform¶
terraform init
Validate configuration¶
terraform validate
Plan execution¶
terraform plan
Apply changes¶
terraform apply ````

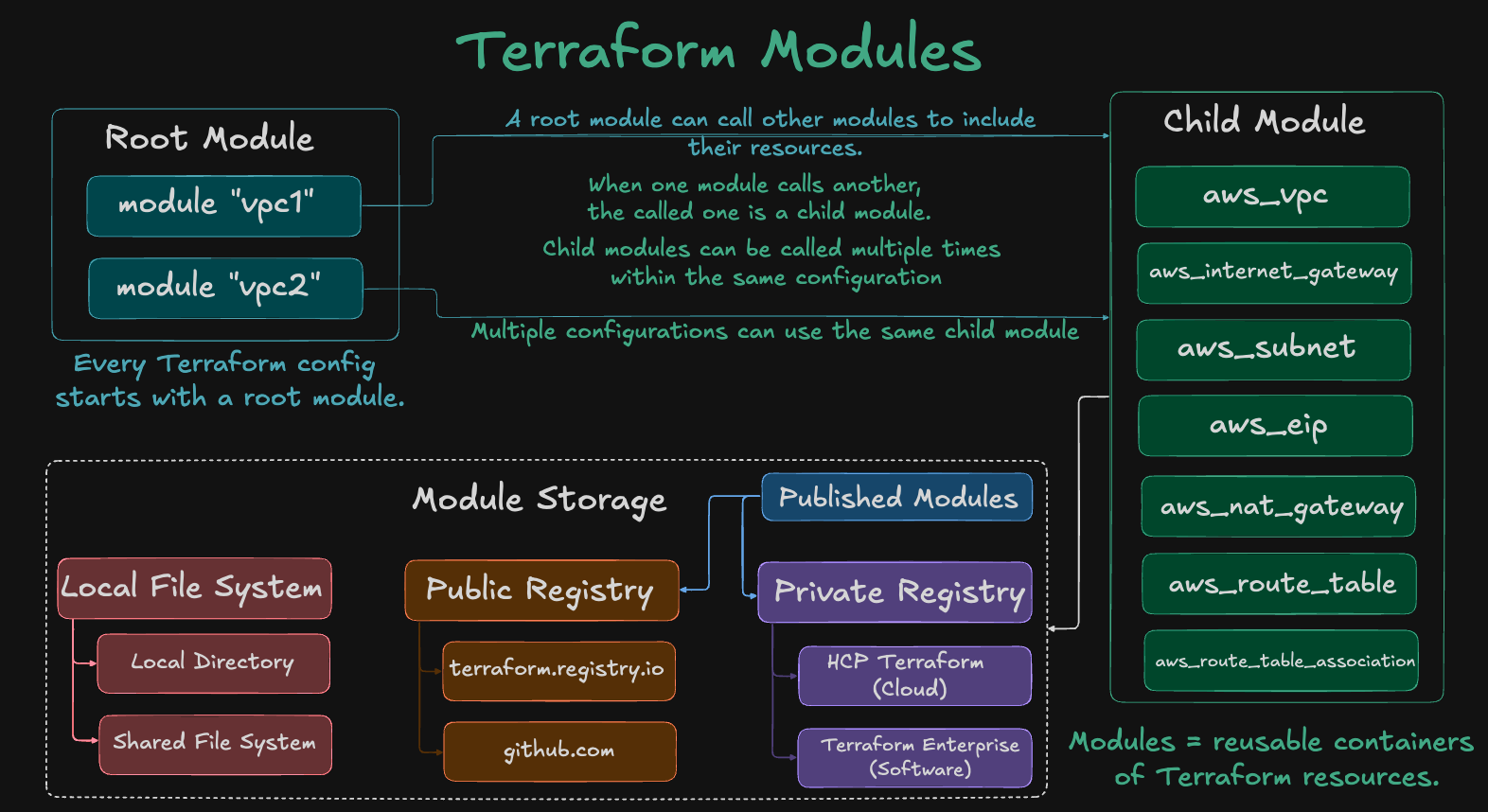

Benefits of Modularization¶
- Reusability: Same VPC module can be used across environments (dev, test, prod).
- Isolation: VPC logic is isolated from the rest of the infrastructure.
- Consistency: Centralized config leads to fewer errors and better collaboration.
- Scalability: Easy to extend module with more resources or logic.
Author: Kalyan Reddy Daida Course: DevOps Real-world Project Implementation on AWS Cloud
