Section-10-01: Amazon EBS CSI Driver Install on EKS (with Pod Identity)

Step-01 – Learning Objectives

  1. Create a trust policy file for the EBS CSI Driver IAM Role.
  2. Create the IAM Role and attach the AmazonEBSCSIDriverPolicy managed policy.
  3. Create a Pod Identity Association for the EBS CSI controller ServiceAccount.
  4. Install the Amazon EBS CSI Driver add-on using AWS CLI.
  5. Verify installation using kubectl.

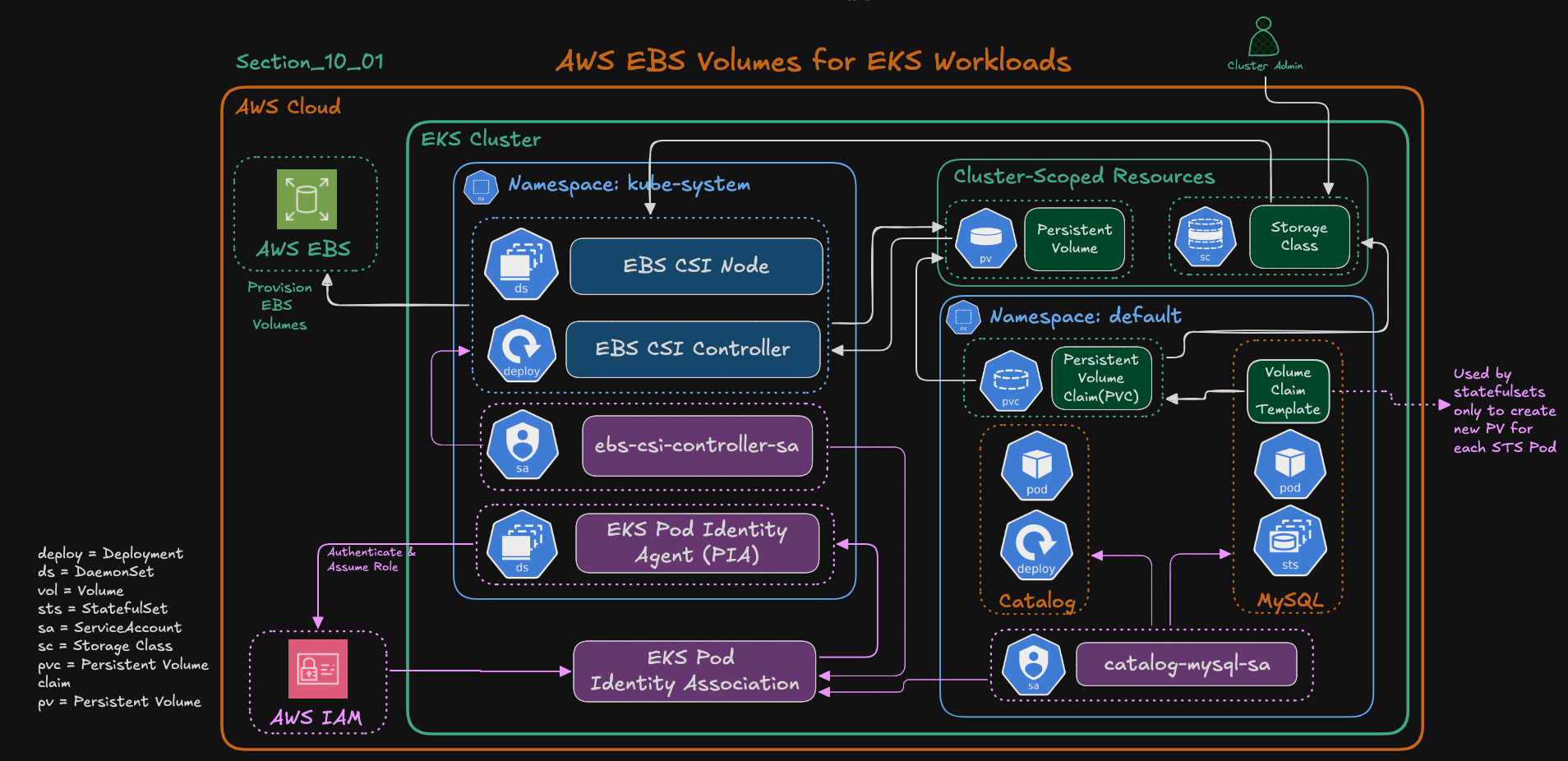

AWS EBS CSI Driver Architecture

AWS EBS CSI Driver Architecture

Step-02 – Install Amazon EBS CSI Driver (AWS CLI Method)

Step-02-01: Export Environment Variables

# Replace the placeholders below with your actual values
export AWS_REGION="us-east-1"
export EKS_CLUSTER_NAME="retail-dev-eksdemo1"
export AWS_ACCOUNT_ID=$(aws sts get-caller-identity --query Account --output text)

# Confirm values
echo $AWS_REGION
echo $EKS_CLUSTER_NAME
echo $AWS_ACCOUNT_ID

Step-02-02: Create Trust Policy File

mkdir -p iam-policy-json-files
cd iam-policy-json-files

cat <<EOF > ebs-csi-driver-trust-policy.json
{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "Service": "pods.eks.amazonaws.com"
      },
      "Action": [
        "sts:AssumeRole",
        "sts:TagSession"
      ]
    }
  ]
}
EOF

✅ This trust policy lets EKS Pods (via Pod Identity Agent) assume the role.

Step-02-03: Create IAM Role and Attach Policy

# Create IAM Role
aws iam create-role \
  --role-name AmazonEKS_EBS_CSI_DriverRole_${EKS_CLUSTER_NAME} \
  --assume-role-policy-document file://ebs-csi-driver-trust-policy.json

# Attach IAM Policy to IAM Role
aws iam attach-role-policy \
  --role-name AmazonEKS_EBS_CSI_DriverRole_${EKS_CLUSTER_NAME} \
  --policy-arn arn:aws:iam::aws:policy/service-role/AmazonEBSCSIDriverPolicy

# Verify:
aws iam list-attached-role-policies \
  --role-name AmazonEKS_EBS_CSI_DriverRole_${EKS_CLUSTER_NAME}

Step-02-04: Create Pod Identity Association (required for CLI install)

# Create EKS Pod Identity Assocication
aws eks create-pod-identity-association \
  --cluster-name ${EKS_CLUSTER_NAME} \
  --namespace kube-system \
  --service-account ebs-csi-controller-sa \
  --role-arn arn:aws:iam::${AWS_ACCOUNT_ID}:role/AmazonEKS_EBS_CSI_DriverRole_${EKS_CLUSTER_NAME}

✅ This binds the IAM role to the ebs-csi-controller-sa ServiceAccount so the EBS CSI Driver can obtain credentials through the Pod Identity Agent.

Step-02-05: Install the EBS CSI Driver Add-on

# List existing EKS add-ons
aws eks list-addons --cluster-name ${EKS_CLUSTER_NAME}

# Install EKS EBS CSI Addon
aws eks create-addon \
  --cluster-name ${EKS_CLUSTER_NAME} \
  --addon-name aws-ebs-csi-driver \
  --service-account-role-arn arn:aws:iam::${AWS_ACCOUNT_ID}:role/AmazonEKS_EBS_CSI_DriverRole_${EKS_CLUSTER_NAME}

✅ This command: * Installs the Amazon EBS CSI Driver add-on on your EKS cluster. * Associates it with the IAM Role you created earlier. * Deploys the following components automatically: * ebs-csi-controller (Deployment) * ebs-csi-node (DaemonSet)

Step-02-06: Verify Installation

# List EKS add-ons (after install)
aws eks list-addons --cluster-name ${EKS_CLUSTER_NAME}

# Describe Addon - Verify Status
aws eks describe-addon \
  --cluster-name ${EKS_CLUSTER_NAME} \
  --addon-name aws-ebs-csi-driver \
  --query "addon.status" --output text

✅ Expected: ACTIVE

kubectl get pods -n kube-system | grep ebs-csi
kubectl get ds   -n kube-system | grep ebs-csi
kubectl get deploy -n kube-system | grep ebs-csi

Example:

ebs-csi-controller-xxxx   6/6 Running
ebs-csi-node-xxxx         3/3 Running

Step-02-07: Summary

Component Command Created Purpose
IAM Role aws iam create-role Grants EBS CSI Driver AWS permissions
Policy Attachment aws iam attach-role-policy Adds AmazonEBSCSIDriverPolicy
Pod Identity Association aws eks create-pod-identity-association Binds role → ServiceAccount
EKS Add-on aws eks create-addon Deploys EBS CSI controller & node pods
Verification kubectl get pods Confirms add-on Running
