10-03: Amazon RDS MySQL Database Integration with Catalog Microservice¶

In this section, we will integrate our Catalog microservice with an Amazon RDS MySQL database instead of the in-cluster MySQL StatefulSet used in previous demos.

Step-01: Learning Objectives¶

By the end of this section, you will be able to:

Understand how to connect a Kubernetes application to a managed RDS MySQL database.
Replace in-cluster MySQL StatefulSet with a private RDS endpoint.
Use AWS Secrets Manager and the Secrets Store CSI Driver to retrieve credentials securely.
Configure ExternalName Service for DNS-based access to RDS.
Validate connectivity between your Catalog microservice and RDS instance.

Why AWS RDS MySQL Database?¶

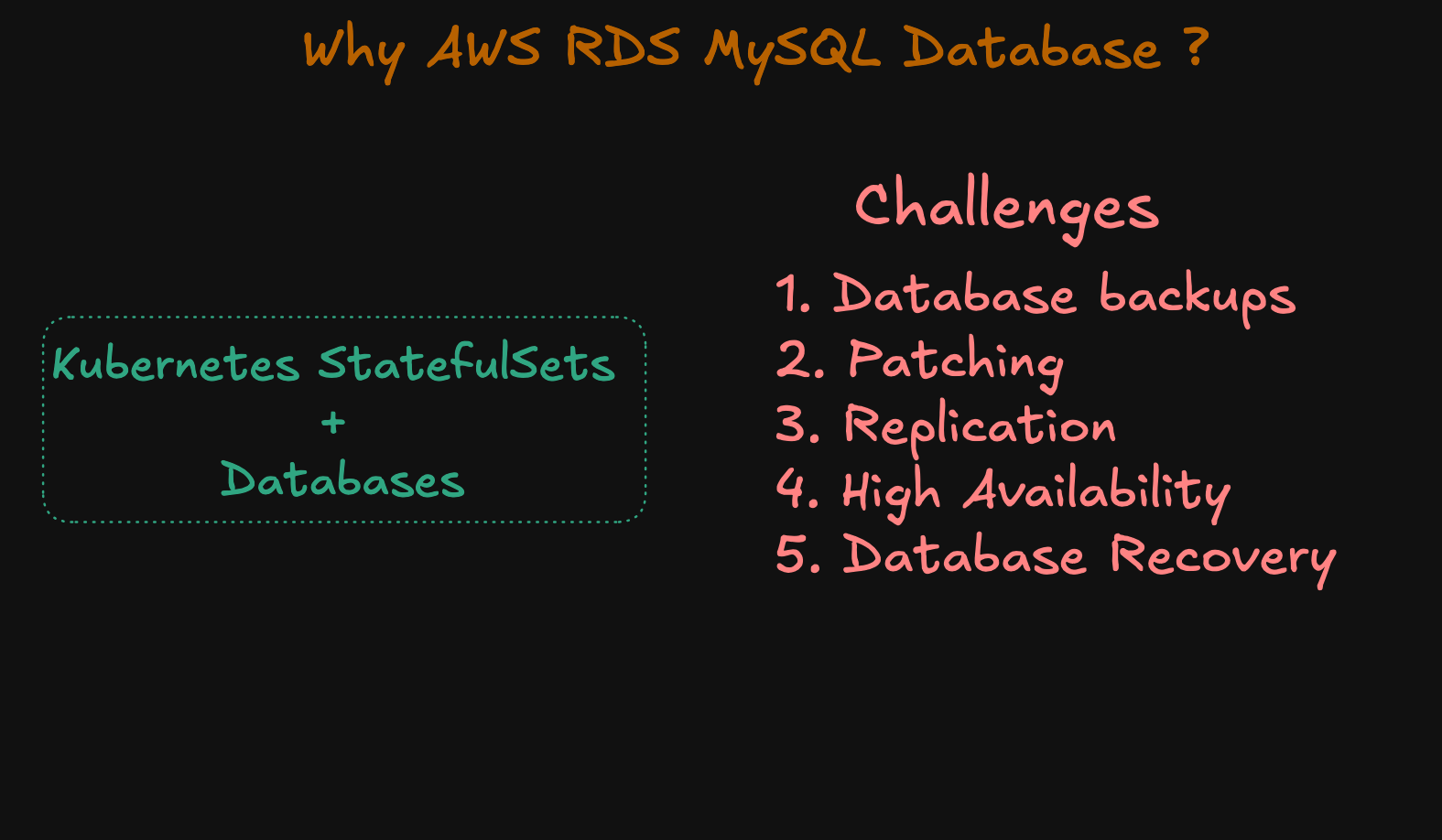

Why AWS RDS MySQL Database?

Architecture Diagram¶

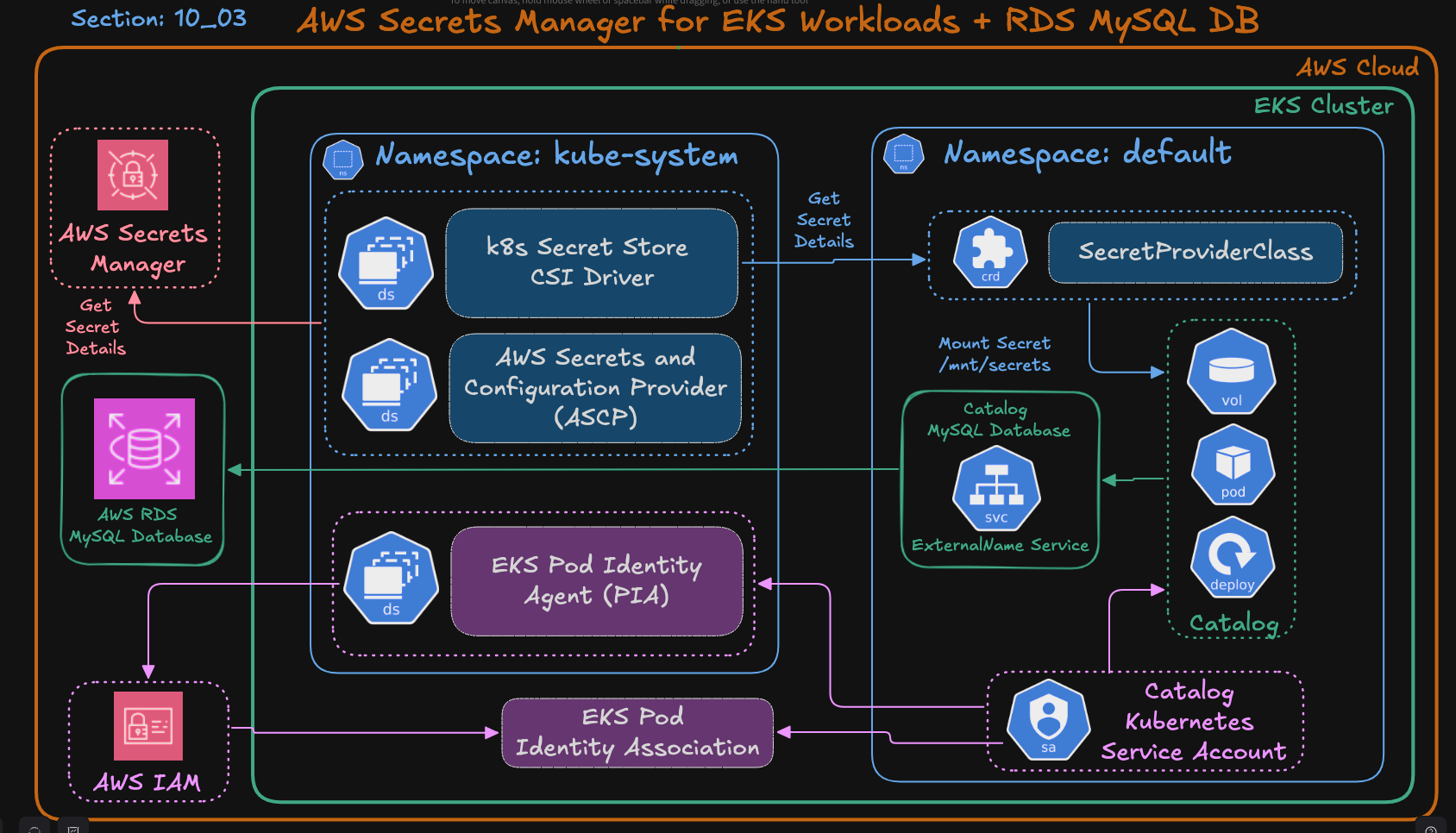

Amazon RDS MySQL Database Integration with Catalog Microservice

Traffic Flow¶

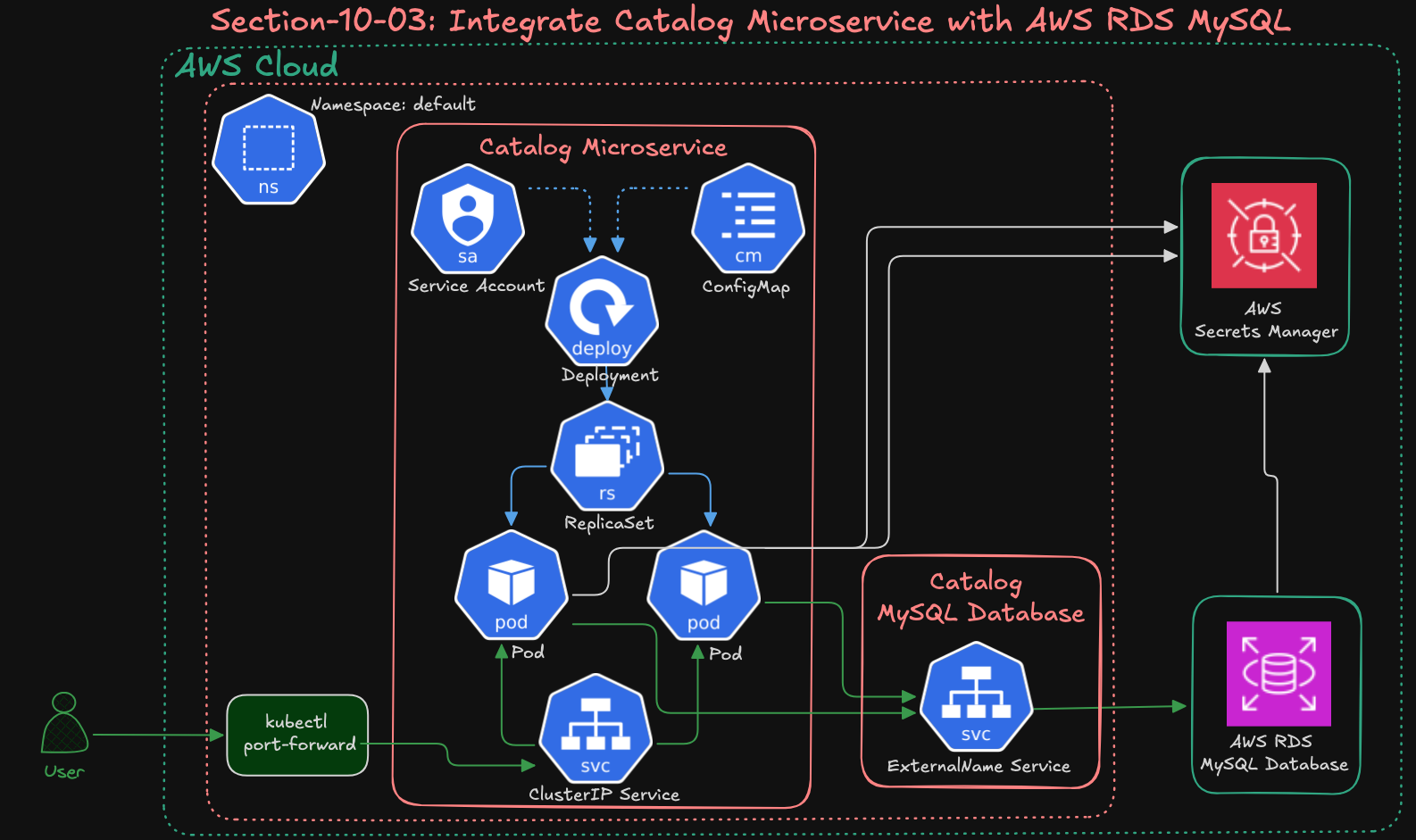

Traffic Flow: Amazon RDS MySQL Database + Catalog Microservice

Step-02: Create Amazon RDS Database (via AWS Console)¶

Step-02-01: Create VPC Security Group (for RDS)¶

We need a Security Group that allows the RDS database to accept traffic only from our EKS cluster.

Get the EKS Cluster Security Group¶

Run the following command to find your EKS Cluster Security Group ID:

aws eks describe-cluster \
  --name retail-dev-eksdemo1 \
  --query "cluster.resourcesVpcConfig.clusterSecurityGroupId" \
  --output text

Example output:

sg-092ff60d65289df59

This Security Group (sg-092ff60d65289df59 in the example) belongs to your EKS cluster and can safely be used as the source for your RDS inbound rules.

Create RDS Security Group¶

Console: EC2 → Security Groups → Create security group
Name: rds-mysql-sg
VPC: Select the same VPC as your EKS cluster
Inbound rules (choose one):
Recommended:
- Type: MySQL/Aurora (3306)
- Protocol: TCP
- Source: EKS Cluster Security Group ID (e.g., sg-092ff60d65289df59)
- Alternative (lab-only):
- Type: MySQL/Aurora (3306)
- Source: 10.0.0.0/16
- Outbound rules: Allow all (default)
- Create security group

💡 Using the EKS Cluster Security Group is the most secure option for production. The CIDR-based rule (10.0.0.0/16) is fine for quick local lab testing.

Step-02-02: Create DB Subnet Group (private subnets)¶

Console: RDS → Subnet groups → Create DB subnet group
Name: rds-private-subnets
VPC: Select the EKS VPC
Subnets: Add all private subnets (at least 2 AZs)
Create

Step-02-03: Create the RDS MySQL Instance¶

Console: RDS → Databases → Create database
Method: Standard create
Engine: MySQL (8.0)
Templates: Free tier or Dev/Test
DB instance identifier: mydb3
Master username: mydbadmin
Master password: kalyandb101
Instance class: db.t3.micro
Storage: (default is fine)
Connectivity:
VPC: EKS VPC
DB Subnet group: rds-private-subnets
Public access: No
VPC security group: Choose existing → rds-mysql-sg
(Optional) Disable Delete protection for easy cleanup
Create database

💡 We’re intentionally reusing the same creds mydbadmin / kalyandb101 for continuity with previous demos.

Step-03: Connect to RDS and Create Database Schema¶

Once the database is available, connect to the RDS instance from within your EKS cluster using a temporary MySQL client pod.

kubectl run mysql-client --rm -it \
  --image=mysql:8.0 \
  --restart=Never \
  -- mysql -h mydb3.cxojydmxwly6.us-east-1.rds.amazonaws.com -u mydbadmin -p
````

When prompted, enter the password:

kalyandb101

Inside the MySQL shell, create the `catalogdb` schema:

```sql
CREATE DATABASE catalogdb;
SHOW DATABASES;
EXIT;

Step-04: Update Kubernetes Manifests¶

We will reuse our existing Kubernetes manifests with a small modification —
replace the in-cluster MySQL Service with an ExternalName Service that points to the RDS endpoint.

01_secretproviderclass¶

NO CHANGES: 01_catalog_secretproviderclass.yaml

02_catalog_k8s_manifests¶

NO CHANGES: 01_catalog_deployment.yaml
NO CHANGES: 02_catalog_clusterip_service.yaml
NO CHANGES: 03_catalog_configmap.yaml
NO CHANGES: 04_catalog_mysql_service_accout.yaml
Service Account Usage: The catalog-mysql-sa Service Account is associated with EKS Pod Identity, which grants the Catalog microservice permission to access AWS Secrets Manager.
Through the Secrets Store CSI Driver, this service account enables the Catalog pod to securely retrieve database credentials at runtime without embedding or managing any static secrets inside Kubernetes.
NEW: 05_catalog_mysql_externalname_service.yaml
Update with your AWS RDS Endpoint:

apiVersion: v1
kind: Service
metadata:
  name: catalog-mysql
spec:
  type: ExternalName
  externalName: mydb3.cxojydmxwly6.us-east-1.rds.amazonaws.com
  ports:
    - port: 3306

Step-05: Deploy Resources¶

Deploy in the following order:

# Deploy Secret Provider Class
kubectl apply -f 01_secretproviderclass/

# Deploy Catalog Application
kubectl apply -f 02_catalog_k8s_manifests

Step-06: Verify Setup¶

Step-06-01: Verify Catalog Application Logs¶

# Verify Logs
kubectl logs -f deploy/catalog

Note: As we have only 1 catalog pod we can directly use "deploy/catalog" instead of pod name

Step-06-02: Verify Application¶

Port-forward and access Catalog service endpoints:

# kubectl port-forward
kubectl port-forward svc/catalog-service 7080:8080

# Additional Note
Port-forward local desktop 7080 → Kubernetes Cluster IP service 8080

Access in browser or use curl:

# Catalog Endpoints
http://localhost:7080/health
http://localhost:7080/catalog/topology
http://localhost:7080/catalog/products
http://localhost:7080/catalog/tags
http://localhost:7080/catalog/size

You should see successful responses indicating connectivity to RDS.

Step-06-03: Verify Database Entries in RDS¶

Now that the Catalog microservice is running and connected to RDS,
let’s log in to the RDS database from within the EKS cluster to verify data persistence.

Step-06-03-01: Launch a temporary MySQL client Pod inside EKS¶

Run the following command:

kubectl run mysql-client --rm -it \
  --image=mysql:8.0 \
  --restart=Never \
  -- mysql -h mydb3.cxojydmxwly6.us-east-1.rds.amazonaws.com -u mydbadmin -p

This command starts a temporary Pod named mysql-client using the official MySQL image.
It connects directly to your RDS endpoint (mydb3.cxojydmxwly6.us-east-1.rds.amazonaws.com).
The flag -u mydbadmin -p will prompt you to enter the database password (kalyandb101).
The Pod will be automatically deleted after you exit (--rm).

Step-06-03-02: Run SQL commands inside MySQL shell¶

Once you enter the password and connect successfully, run:

USE catalogdb;
SHOW TABLES;
SELECT * FROM products;
EXIT;

✅ This confirms that the Catalog microservice is successfully storing and reading data
from the Amazon RDS MySQL database.

Step-07: Cleanup¶

Step-07-01: Remove Kubernetes Resources¶

# Delete Secret Provider Class
kubectl delete -f 01_secretproviderclass/

# Delete Catalog Application
kubectl delete -f 02_catalog_k8s_manifests

Step-07-02: Delete RDS Instance¶

From the AWS Console → RDS → Databases → mydb3 → Delete.
From the AWS Console → RDS → Subnet groups → rds-private-subnets → Delete.

✅ Step-08: Summary¶

In this demo, we successfully:

Connected the Catalog microservice to an Amazon RDS MySQL database.
Used ExternalName Service for RDS endpoint resolution.
Retrieved credentials securely from AWS Secrets Manager via EKS Pod Identity + CSI Driver.
Verified full end-to-end connectivity and cleaned up all resources.

This completes our transition from in-cluster MySQL to managed RDS MySQL in a real-world production setup.

```
