11-01: AWS Load Balancer Controller on EKS (with Pod Identity)¶

Step-01 – Learning Objectives¶

By the end of this section, you will be able to:

Create a trust policy file for the Load Balancer Controller IAM Role.
Create and attach the AWSLoadBalancerControllerIAMPolicy to that role.
Create an EKS Pod Identity Association between the IAM Role and ServiceAccount.
Install the AWS Load Balancer Controller using Helm.
Verify successful deployment.

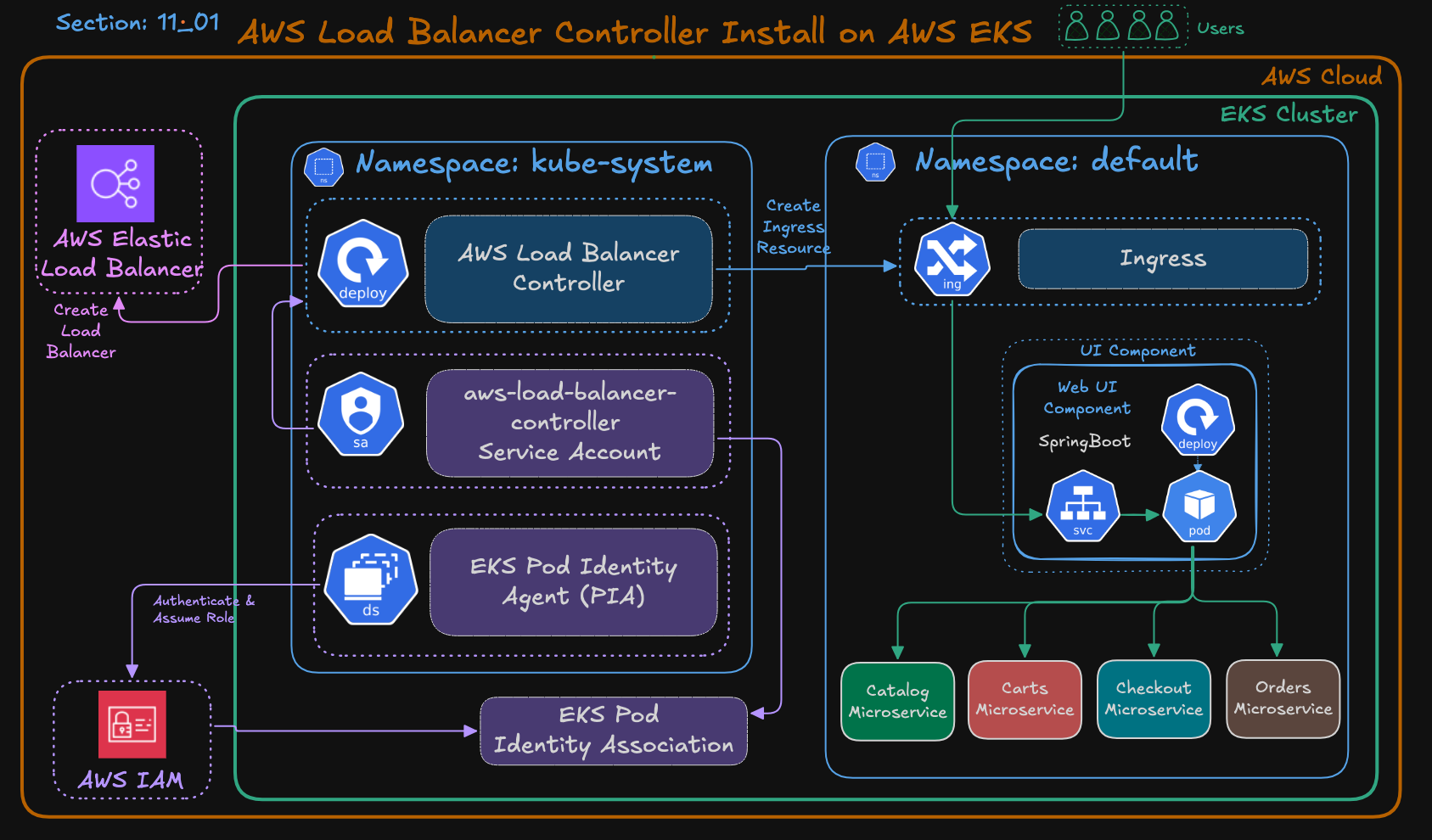

Architecture Overview¶

Architecture Overview

Ingress and Retail Store Sample Application¶

Ingress and Retail Store Sample Application

Step-02 – IAM Role and Policy Setup¶

Step-02-01: Export Environment Variables¶

# Replace the placeholders below with your actual values
export AWS_REGION="us-east-1"
export EKS_CLUSTER_NAME="retail-dev-eksdemo1"
export AWS_ACCOUNT_ID=$(aws sts get-caller-identity --query Account --output text)

# Confirm values
echo $AWS_REGION
echo $EKS_CLUSTER_NAME
echo $AWS_ACCOUNT_ID

Step-02-02: Create IAM Policy for LBC¶

mkdir -p iam-policy-json-files
cd iam-policy-json-files

Download the official IAM policy:

curl -o aws-load-balancer-controller-policy.json \
https://raw.githubusercontent.com/kubernetes-sigs/aws-load-balancer-controller/main/docs/install/iam_policy.json

Create the policy in IAM:

aws iam create-policy \
  --policy-name AWSLoadBalancerControllerIAMPolicy_${EKS_CLUSTER_NAME} \
  --policy-document file://aws-load-balancer-controller-policy.json

✅ This policy allows the Load Balancer Controller to manage AWS resources such as Elastic Load Balancers, Target Groups, and Security Groups.

Step-02-03: Create Trust Policy File¶

cat <<EOF > aws-load-balancer-controller-trust-policy.json
{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "Service": "pods.eks.amazonaws.com"
      },
      "Action": [
        "sts:AssumeRole",
        "sts:TagSession"
      ]
    }
  ]
}
EOF

✅ This trust policy allows the EKS Pod Identity Agent to assume this role on behalf of the Load Balancer Controller Pod.

Step-02-04: Create IAM Role and Attach Policy¶

# Create the IAM Role
aws iam create-role \
  --role-name AmazonEKS_LBC_Role_${EKS_CLUSTER_NAME} \
  --assume-role-policy-document file://aws-load-balancer-controller-trust-policy.json

# Attach the LBC IAM Policy
aws iam attach-role-policy \
  --role-name AmazonEKS_LBC_Role_${EKS_CLUSTER_NAME} \
  --policy-arn arn:aws:iam::${AWS_ACCOUNT_ID}:policy/AWSLoadBalancerControllerIAMPolicy_${EKS_CLUSTER_NAME}

# Verify attachment
aws iam list-attached-role-policies \
  --role-name AmazonEKS_LBC_Role_${EKS_CLUSTER_NAME}

Step-02-05: Create EKS Pod Identity Association¶

aws eks create-pod-identity-association \
  --cluster-name ${EKS_CLUSTER_NAME} \
  --namespace kube-system \
  --service-account aws-load-balancer-controller \
  --role-arn arn:aws:iam::${AWS_ACCOUNT_ID}:role/AmazonEKS_LBC_Role_${EKS_CLUSTER_NAME}

✅ This securely links the aws-load-balancer-controller ServiceAccount to the IAM Role via EKS Pod Identity.

Step-03 – Install AWS Load Balancer Controller (Helm)¶

Step-03-01: Add Helm Repo and Update¶

helm repo add eks https://aws.github.io/eks-charts
helm repo update

Step-03-02: Install Load Balancer Controller¶

# Get VPC ID
VPC_ID=$(aws eks describe-cluster \
  --name ${EKS_CLUSTER_NAME} \
  --query "cluster.resourcesVpcConfig.vpcId" \
  --output text)

# Verify VPC ID
echo $VPC_ID

# Install AWS Load Balancer Controller using HELM
helm install aws-load-balancer-controller eks/aws-load-balancer-controller \
  -n kube-system \
  --set clusterName=${EKS_CLUSTER_NAME} \
  --set region=${AWS_REGION} \
  --set vpcId=${VPC_ID} \
  --set serviceAccount.create=true \
  --set serviceAccount.name=aws-load-balancer-controller

✅ Explanation:

serviceAccount.create=true → Creates the ServiceAccount automatically during Helm installation.
serviceAccount.name → Uses the same ServiceAccount name linked to your Pod Identity association.
clusterName → Specifies the name of your EKS cluster.
vpcId → Supplies the EKS cluster’s VPC ID manually (required when IMDS auto-detection is restricted).
region → Explicitly sets the AWS Region to help the controller locate cluster and network resources when IMDS access is limited.

Step-03-03: Verify Helm Release¶

List Helm releases:

helm list -n kube-system

✅ Example Output:

NAME                        NAMESPACE    REVISION  UPDATED        STATUS    CHART                           APP VERSION
aws-load-balancer-controller kube-system 1         2025-10-08...  deployed  aws-load-balancer-controller-1.13.0  v2.13.3

Check Helm status:

helm status aws-load-balancer-controller -n kube-system

✅ Confirm STATUS: deployed and review any resource notes.

Step-04 – Verify Controller Deployment¶

# List Pods
kubectl get pods -n kube-system -l app.kubernetes.io/name=aws-load-balancer-controller

✅ Expected Output:

NAME                                           READY   STATUS    RESTARTS   AGE
aws-load-balancer-controller-b7d4fdf8c-9gxjz   1/1     Running   0          1m

Check deployment and logs:

kubectl get deployment -n kube-system aws-load-balancer-controller
kubectl logs -n kube-system -l app.kubernetes.io/name=aws-load-balancer-controller

✅ You should see:

Pod Running
No permission or assume-role errors

Step-05 – Summary¶

Component	Command	Description
IAM Policy	`aws iam create-policy`	Defines permissions for LBC
IAM Role	`aws iam create-role`	Grants EKS Pods IAM access
Pod Identity Association	`aws eks create-pod-identity-association`	Binds Role ↔ ServiceAccount
Helm Install	`helm install aws-load-balancer-controller ...`	Deploys controller via Helm
Helm Verification	`helm list`, `helm status`	Confirms release deployment
K8s Verification	`kubectl get pods`, `kubectl logs`	Confirms controller health

✅ Final Result: You’ve successfully installed the AWS Load Balancer Controller using EKS Pod Identity (no IRSA). It’s now fully configured to provision and manage Application Load Balancers (ALB) and Network Load Balancers (NLB) in your EKS environment — production-ready, secure, and following the latest AWS best practices.
