13: Terraform on AWS EKS Cluster with AddOns (LBC, EBS CSI, Secret Store CSI)¶
In this section, we build on top of our base EKS cluster from Section-07 and integrate official AWS and Kubernetes add-ons for networking, storage, identity, and secret management.
✅ AWS Load Balancer Controller (LBC) ✅ Amazon EBS CSI Driver ✅ Secrets Store CSI Driver (with ASCP) ✅ EKS Pod Identity Agent

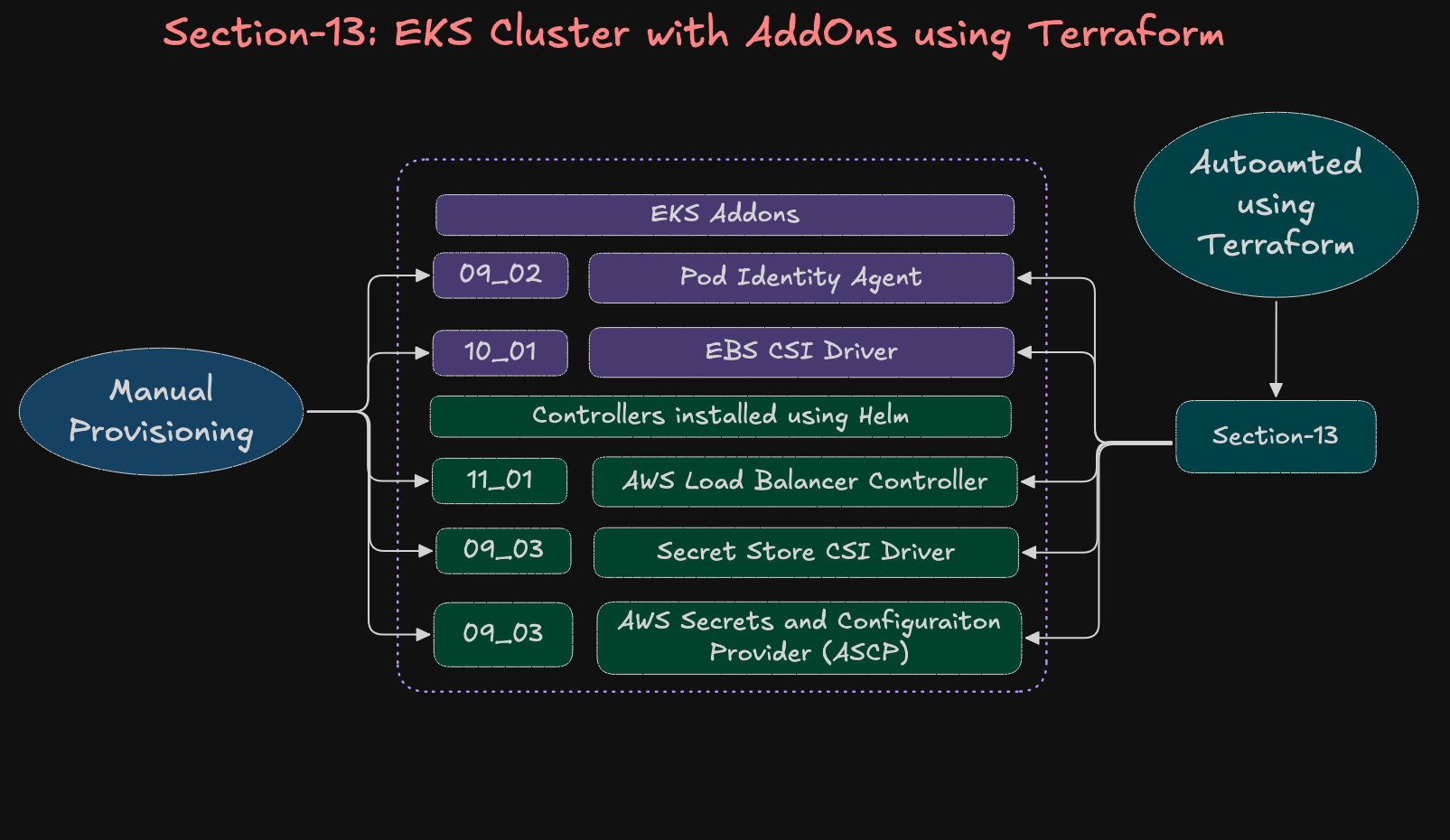

What we are going to implement ?¶
Step-01: Project Overview¶
This project enhances our base EKS setup from Section-07 by integrating official AWS and Kubernetes add-ons that power modern workloads.
| AddOn | Purpose |
|---|---|
| Pod Identity Agent | Enables Pods to assume IAM roles securely without storing credentials. |
| AWS Load Balancer Controller (LBC) | Manages ALBs/NLBs for Ingress resources and Service type LoadBalancer. |
| EBS CSI Driver | Enables dynamic provisioning of Amazon EBS volumes for Stateful workloads. |
| Secrets Store CSI Driver + ASCP | Mounts AWS Secrets Manager / SSM Parameter Store secrets directly into Pods. |
Step-02: Full Project Structure (In Order)¶
13_Terraform_EKS_Cluster_with_AddOns/
│
├── 01_VPC_terraform-manifests/ # Stage 1 - Networking foundation
│ ├── c1-versions.tf # Terraform + provider versions
│ ├── c2-variables.tf # Input variables for VPC
│ ├── c3-vpc.tf # VPC, subnets, route tables, NAT gateways, etc.
│ ├── c4-outputs.tf # VPC outputs (IDs, subnet lists, etc.)
│ ├── terraform.tfvars # Environment-specific variable values
│ │
│ └── modules/
│ └── vpc/ # Reusable VPC module
│ ├── datasources-and-locals.tf
│ ├── main.tf
│ ├── outputs.tf
│ ├── variables.tf
│ └── README.md
│
│
├── 02_EKS_terraform-manifests_with_addons/ # Stage 2 - EKS + AddOns deployment
│ ├── c1_versions.tf # Terraform and AWS provider versions
│ ├── c2_variables.tf # EKS input variables (cluster name, region)
│ ├── c3_remote-state.tf # Remote backend (S3 + DynamoDB)
│ ├── c4_datasources_and_locals.tf # Data lookups (VPC, subnets, etc.)
│ ├── c5_eks_tags.tf # Common tagging for EKS resources
│ ├── c6_eks_cluster_iamrole.tf # IAM Role for EKS Control Plane
│ ├── c7_eks_cluster.tf # Main EKS cluster resource
│ ├── c8_eks_nodegroup_iamrole.tf # IAM role for EKS node group
│ ├── c9_eks_nodegroup_private.tf # Private worker node group
│ ├── c10_eks_outputs.tf # Cluster outputs (kubeconfig, ARNs, etc.)
│
│ # --- Pod Identity Agent ---
│ ├── c11-podidentityagent-eksaddon.tf # Installs EKS Pod Identity Agent addon
│ ├── c12-helm-and-kubernetes-providers.tf # Helm & Kubernetes providers for subsequent addons
│ ├── c13-podidentity-assumerole.tf # Common IAM assume-role policy for Pod Identity
│
│ # --- AWS Load Balancer Controller (LBC) ---
│ ├── c14-01-lbc-iam-policy-datasources.tf
│ ├── c14-02-lbc-iam-policy-and-role.tf
│ ├── c14-03-lbc-eks-pod-identity-association.tf
│ ├── c14-04-lbc-helm-install.tf
│
│ # --- Amazon EBS CSI Driver ---
│ ├── c15-01-ebscsi-iam-policy-and-role.tf
│ ├── c15-02-ebscsi-eks-pod-identity-association.tf
│ ├── c15-03-ebscsi-eksaddon.tf
│
│ # --- Secrets Store CSI Driver + AWS Provider (ASCP) ---
│ ├── c16-01-secretstorecsi-helm-install.tf
│ ├── c16-02-secretstorecsi-ascp-helm-install.tf
│
│ ├── terraform.tfvars # Default variables for EKS deployment
│ │
│ └── env/ # Environment overrides
│ ├── dev.tfvars
│ ├── staging.tfvars
│ └── prod.tfvars
│
│
├── create-cluster.sh # Wrapper to apply both VPC + EKS stages
├── destroy-cluster.sh # Wrapper to destroy EKS first, then VPC
└── README.md # Documentation for the entire workflow
Execution Flow (In Order)¶
-
Stage-1 → VPC
-
Run automatically via
create-cluster.sh -
Provisions VPC, subnets, NATs, and outputs network IDs
-
Stage-2 → EKS Cluster + AddOns
-
Uses VPC outputs from remote state
- Builds EKS Cluster, NodeGroups, IAM roles
-
Installs:
EKS Pod Identity AgentAWS Load Balancer ControllerAmazon EBS CSI DriverSecrets Store CSI Driver + ASCP
-
Post-Deploy
-
Update kubeconfig
- Verify add-on pods under
kube-system -
Confirm IAM Pod Identity associations
-
Teardown
-
Run
destroy-cluster.sh - Destroys EKS first, then VPC
Step-03: Learn Each AddOn¶
Before deploying, explore how each component works.
| AddOn | Description | Reference |
|---|---|---|
| LBC | Creates and manages AWS ALBs/NLBs for Kubernetes Ingresses. | 📘 c14_* files |
| EBS CSI | Handles dynamic EBS volume provisioning for StatefulSets. | 📘 c15_* files |
| Secrets Store CSI | Integrates Secrets Manager with Kubernetes Secrets via ASCP. | 📘 c16_* files |
| Pod Identity Agent | Provides token service for Pods to assume IAM roles (replaces IRSA). | 📘 c11_* files |
Each add-on’s .tf files include:
- IAM policy & role
- Pod Identity Association
- AddOn or Helm installation
- Outputs for verification
Step-04: Configure Remote Backend (Update Your S3 Bucket and Key)¶
Before running any Terraform commands, make sure you update the S3 backend configuration in your terraform block.
Each stage (VPC and EKS) uses its own remote state path.
- File-1: 01_VPC_terraform-manifests/c1-versions.tf
- File-2: 02_EKS_terraform-manifests_with_addons/c1-versions.tf
Example:¶
terraform {
required_version = ">= 1.0.0"
required_providers {
aws = {
source = "hashicorp/aws"
version = ">= 6.0"
}
}
# Remote Backend Configuration
backend "s3" {
bucket = "tfstate-dev-us-east-1-jpjtof" # 🔹 Update your S3 bucket name
key = "vpc/dev/terraform.tfstate" # 🔹 Update key path (vpc/dev or eks/dev)
region = "us-east-1" # 🔹 Update region if required
encrypt = true
use_lockfile = true
}
}
provider "aws" {
region = var.aws_region
}
🧠 Why:
Terraform uses the S3 bucket to store and manage the remote state securely.
* Update the bucket name as per your environment
* Update the key path (e.g., vpc/staging/terraform.tfstate or eks/prod/terraform.tfstate)
Step-05: Provision the EKS Cluster¶
Step-05-01: Create VPC¶
# Change Directory
cd 01_VPC_terraform-manifests
# Initialize Terraform
terraform init
# Validate syntax
terraform validate
# Preview the plan
terraform plan
# Apply configuration
terraform apply -auto-approve
Step-05-02: Create EKS Cluster¶
# Change Directory
cd 02_EKS_terraform-manifests_with_addons
# Initialize Terraform
terraform init
# Validate syntax
terraform validate
# Preview the plan
terraform plan
# Apply configuration
terraform apply -auto-approve
Step-06: Configure kubectl¶
💡 Tip: It may take a few minutes for all add-on pods (especially ASCP and EBS CSI) to transition to Running state. Use kubectl get pods -n kube-system -w to watch in real time.
# Update kubeconfig
aws eks update-kubeconfig --name <cluster_name> --region <aws_region>
aws eks update-kubeconfig --name retail-dev-eksdemo1 --region us-east-1
# Verify nodes
kubectl get nodes
# Verify all AddOn pods
kubectl get pods -n kube-system
✅ Expected key pods:
NAME READY STATUS AGE
aws-load-balancer-controller-xxxxx 1/1 Running 5m
ebs-csi-controller-xxxxx 1/1 Running 3m
csi-secrets-store-secrets-store-csi-driver-xxxxx 3/3 Running 2m
secrets-provider-aws-secrets-store-csi-driver-provider-aws 1/1 Running 2m
eks-pod-identity-agent-xxxxx 1/1 Running 1m
Step-07: Review AddOns on AWS Console¶
- Navigate to EKS → Add-ons
- You’ll see:
eks-pod-identity-agentaws-ebs-csi-driver-
Under Workloads → Pods (kube-system), verify:
-
aws-load-balancer-controller csi-secrets-store-*secrets-provider-aws-*
✅ Summary¶
| AddOn | Install Type | Namespace | Resource Type |
|---|---|---|---|
| Pod Identity Agent | EKS AddOn | kube-system | aws_eks_addon |
| LBC | Helm | kube-system | helm_release |
| EBS CSI Driver | EKS AddOn | kube-system | aws_eks_addon |
| Secrets Store CSI + ASCP | Helm | kube-system | helm_release |
This setup ensures your EKS cluster is fully production-ready, integrating storage, networking, identity, and secret management add-ons — all automated through Terraform.
🎯 You have now successfully provisioned an enhanced EKS cluster with all essential AWS AddOns!
