16 Use ExternalDNS for Ingress Service¶
Step-01: Introduction¶
In this section, we’re enabling automatic DNS record management for our RetailStore app running on EKS. Using ExternalDNS, your cluster will auto-create and auto-update DNS records in Route53 based on Kubernetes Ingress annotations.
Pretty much:
“Deploy Ingress → ExternalDNS detects → DNS record created for you.”

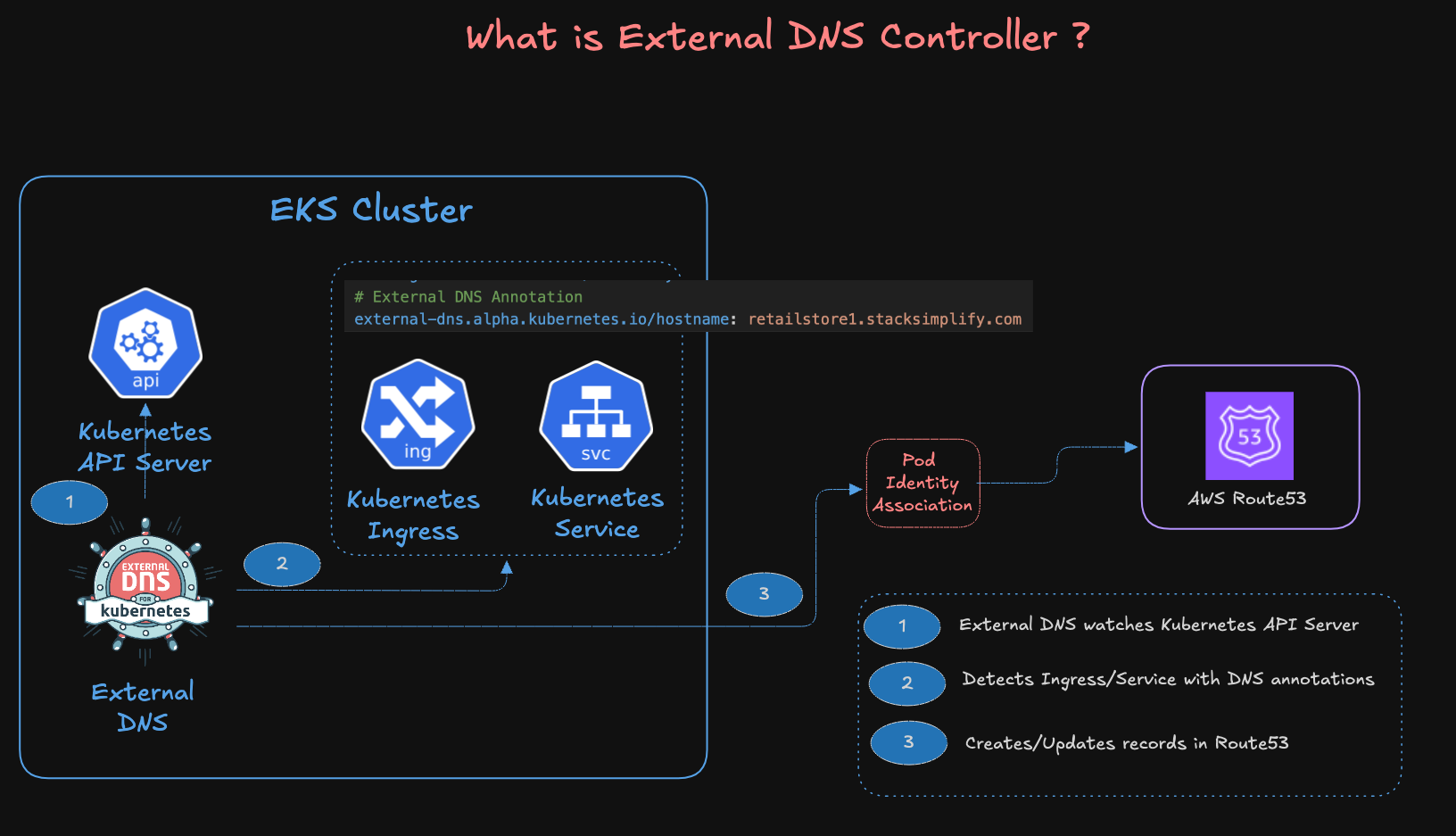

Architecture - AWS EKS cluster with External DNS¶

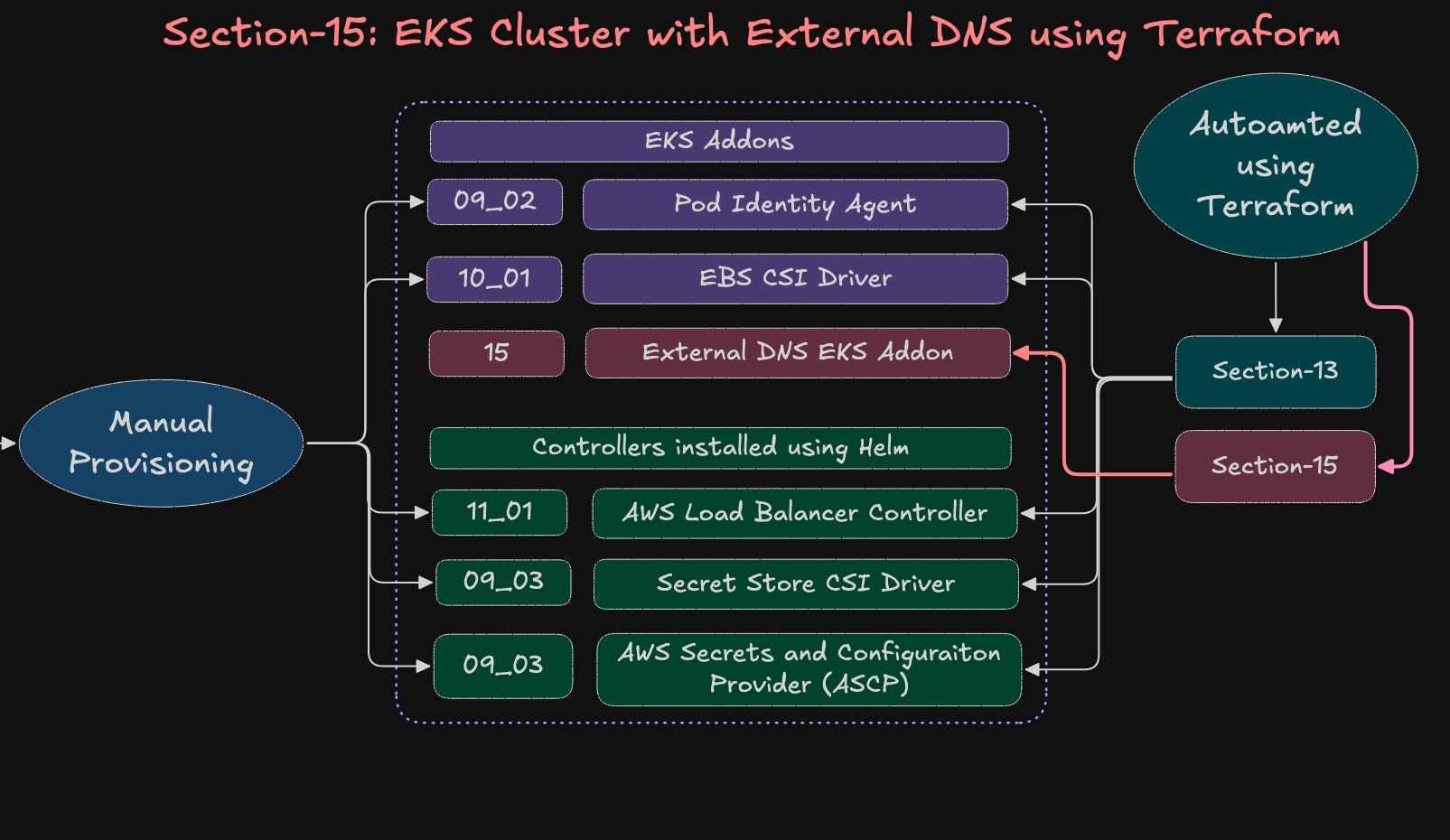

AWS EKS Cluster with External DNS¶

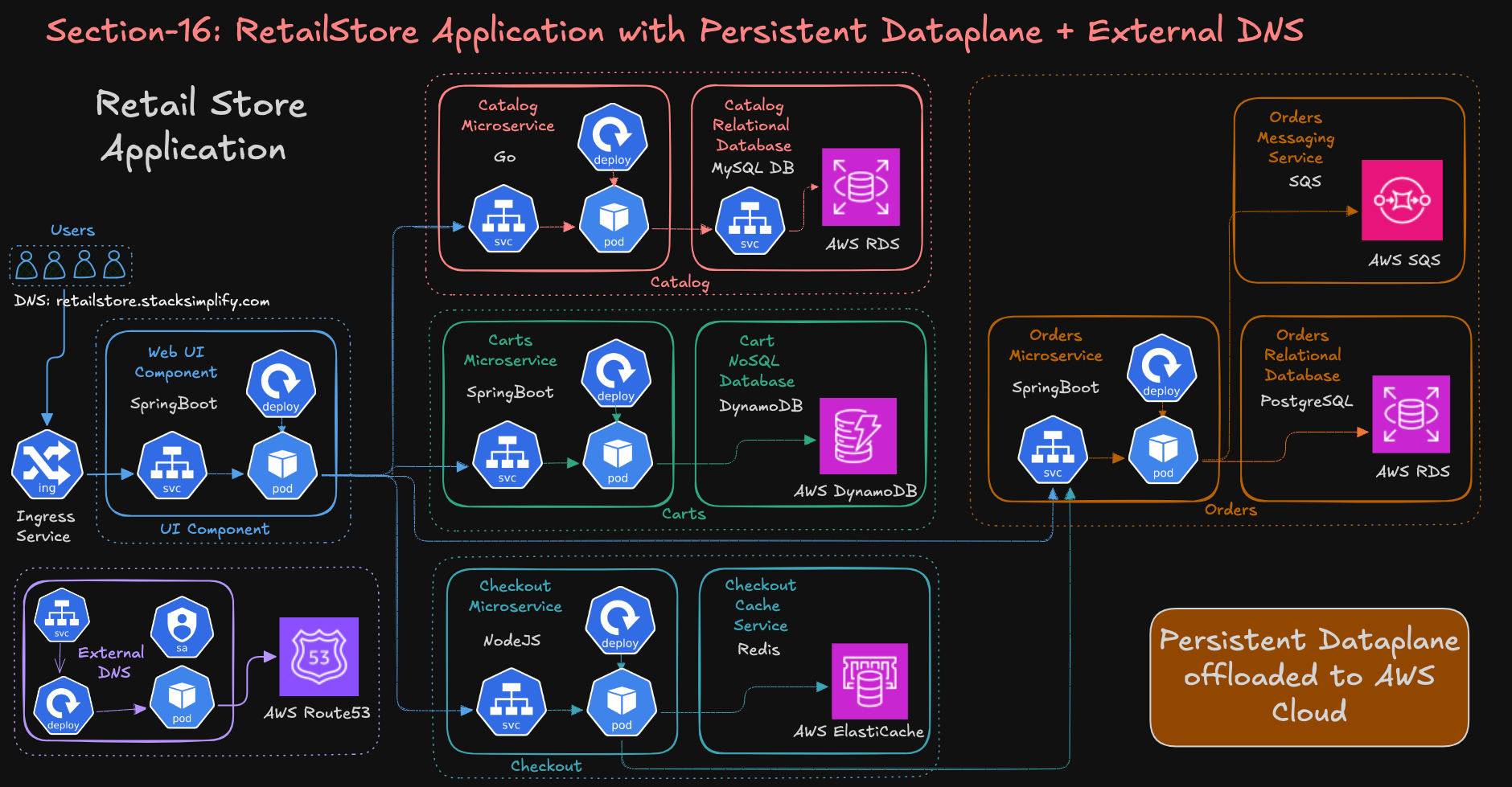

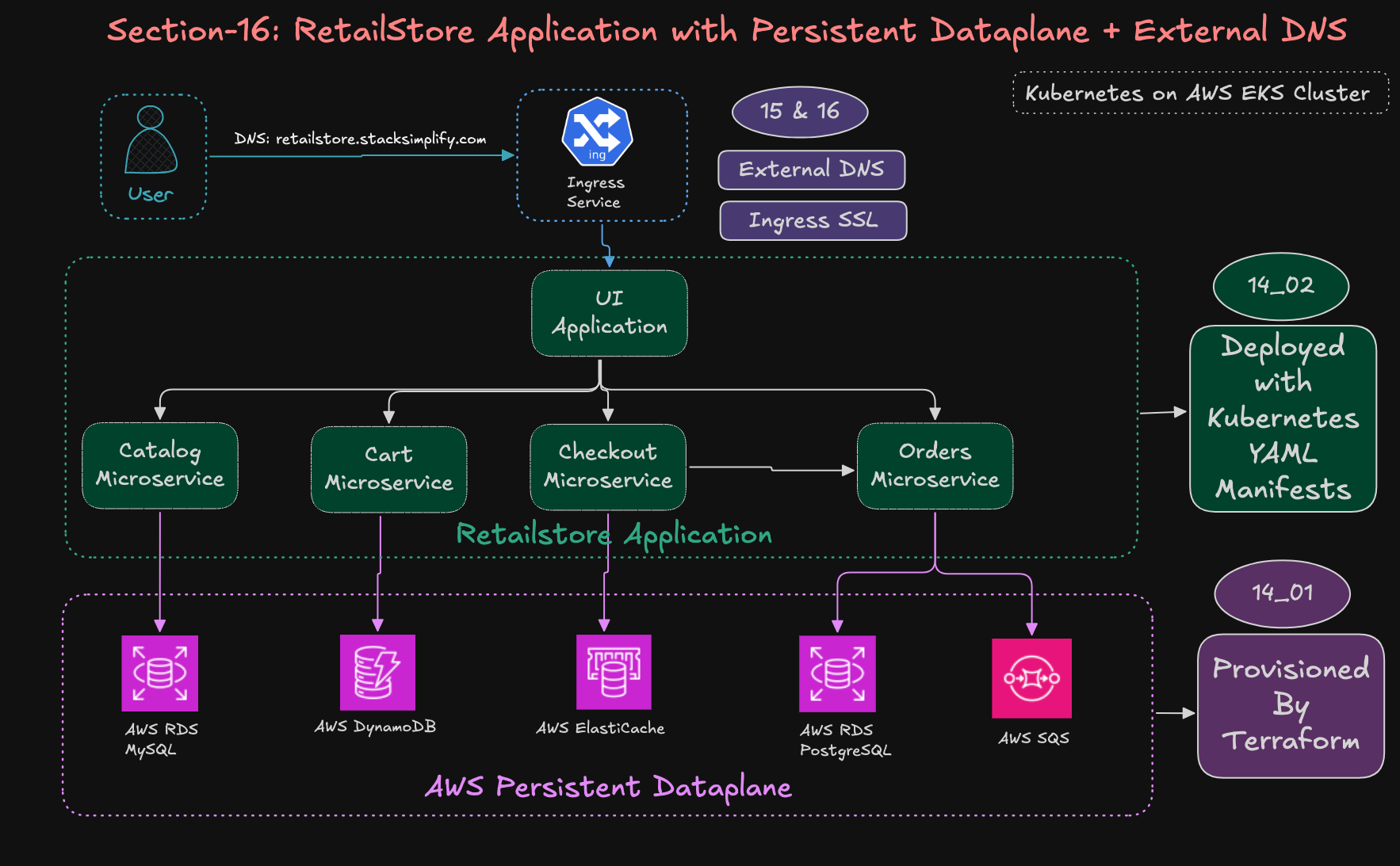

RetailStore App with Ingress + ExternalDNS¶
Step-02: Pre-requisite Checks¶
Before running this demo, confirm these are done:
-
AWS Secrets Manager secret exists ✔
retailstore-db-secret-1 -
AWS Dataplane for RetailStore is already provisioned Created in Section 14_01 → RetailStore AWS Data Plane
-
All microservices are already updated with persistent AWS endpoints
-
Catalog:
05_catalog_mysql_externalname_service.yaml - Cart:
02_cart_configmap.yaml - Checkout:
02_checkout_configmap.yaml -
Orders:
02_orders_configmap.yaml -
You MUST own a domain Super important — ExternalDNS can only work if:
-
You have a hosted zone in Route53, OR
- Your domain is registered elsewhere (GoDaddy, Namecheap) but delegated to Route53
👉 If students do not have a domain: just watch the demo.
Step-03: Update HTTP Ingress with ExternalDNS Annotation¶
Edit the file:
03_ingress/01_ingress_http_ip_mode.yaml
Add:
This tells ExternalDNS to create a Route53 record for this hostname.
Step-04: Enable HTTPS Using ACM Certificate¶
Step-04-01: Create SSL Certificate (ACM)¶
- Open AWS Certificate Manager (ACM)
- Request a certificate:
retailstore2.
- Validate the DNS entry
- Copy the Certificate ARN
Step-04-02: Update HTTPS Ingress with Certificate ARN¶
Edit:
03_ingress/02_ingress_https_ip_mode.yaml
## SSL Settings
alb.ingress.kubernetes.io/listen-ports: '[{"HTTPS":443}, {"HTTP":80}]'
# Replace below with YOUR ACM Certificate ARN
alb.ingress.kubernetes.io/certificate-arn: arn:aws:acm:us-east-1:180789647333:certificate/60a5bccd-5cb1-426a-b792-4d6d6c459edf
# Force HTTPS
alb.ingress.kubernetes.io/ssl-redirect: '443'
# External DNS Annotation
external-dns.alpha.kubernetes.io/hostname: retailstore2.stacksimplify.com
⚠️ Students must replace the certificate ARN with their own ACM ARN.
Step-05: Deploy RetailStore App¶
# Go to manifests root
cd RetailStore_k8s_manifests_with_Data_Plane
# Deploy SecretProviderClass (MySQL + PostgreSQL secrets)
kubectl apply -f 01_secretproviderclass
# Deploy all microservices
kubectl apply -R -f 02_RetailStore_Microservices
# Deploy both Ingress resources
kubectl apply -f 03_ingress
Step-06: Verification¶
# Watch ExternalDNS logs
kubectl -n external-dns logs -f -l app.kubernetes.io/name=external-dns
# Check Ingress resources
kubectl get ingress
# Check SecretProviderClass
kubectl get secretproviderclass
# Check RetailStore components
kubectl get pods
kubectl get deploy
kubectl get cm
kubectl get sa
kubectl get svc
Access the App¶
Observation¶
ExternalDNS constantly watches Kubernetes resources. When an Ingress is created or updated:
- ExternalDNS sees the hostname annotation
- It checks Route53
- Creates / updates / deletes DNS records automatically
This makes DNS mgmt fully automated.
Step-07: Clean-Up¶
# Move to section folder
cd 16_RetailStore_Microservices_ExternalDNS
# Delete everything
kubectl delete -R -f RetailStore_k8s_manifests_with_Data_Plane
# Watch logs again
kubectl -n external-dns logs -f -l app.kubernetes.io/name=external-dns
Observation¶
When Ingress resources are deleted → ExternalDNS auto-removes the Route53 DNS records too.
** Summary — What Students Learn**¶
- How ExternalDNS integrates with EKS
- How DNS auto-management works using annotations
- How ALB + Ingress + Route53 + ExternalDNS form a production-grade setup
- How to enable HTTPS using ACM certificates
- How ExternalDNS manages record lifecycle (create/update/delete)
