17_04: Karpenter Spot Interruption Handling¶
Step-01: Introduction¶
In the previous demo (17_03), we learned how to provision Spot instances with Karpenter and achieve 70% cost savings. But there's one critical question we didn't answer:
"What happens when AWS reclaims your Spot instance?"
In this demo, we'll see Karpenter's interruption handling in action - the mechanism that makes Spot instances production-ready by gracefully handling interruptions with zero downtime.
What You'll Learn¶
- How Karpenter detects Spot interruptions via SQS queue
- Graceful pod eviction and rescheduling in real-time
- How PodDisruptionBudgets maintain availability during interruptions
- Simulating interruptions for testing
- Zero-downtime migration strategies

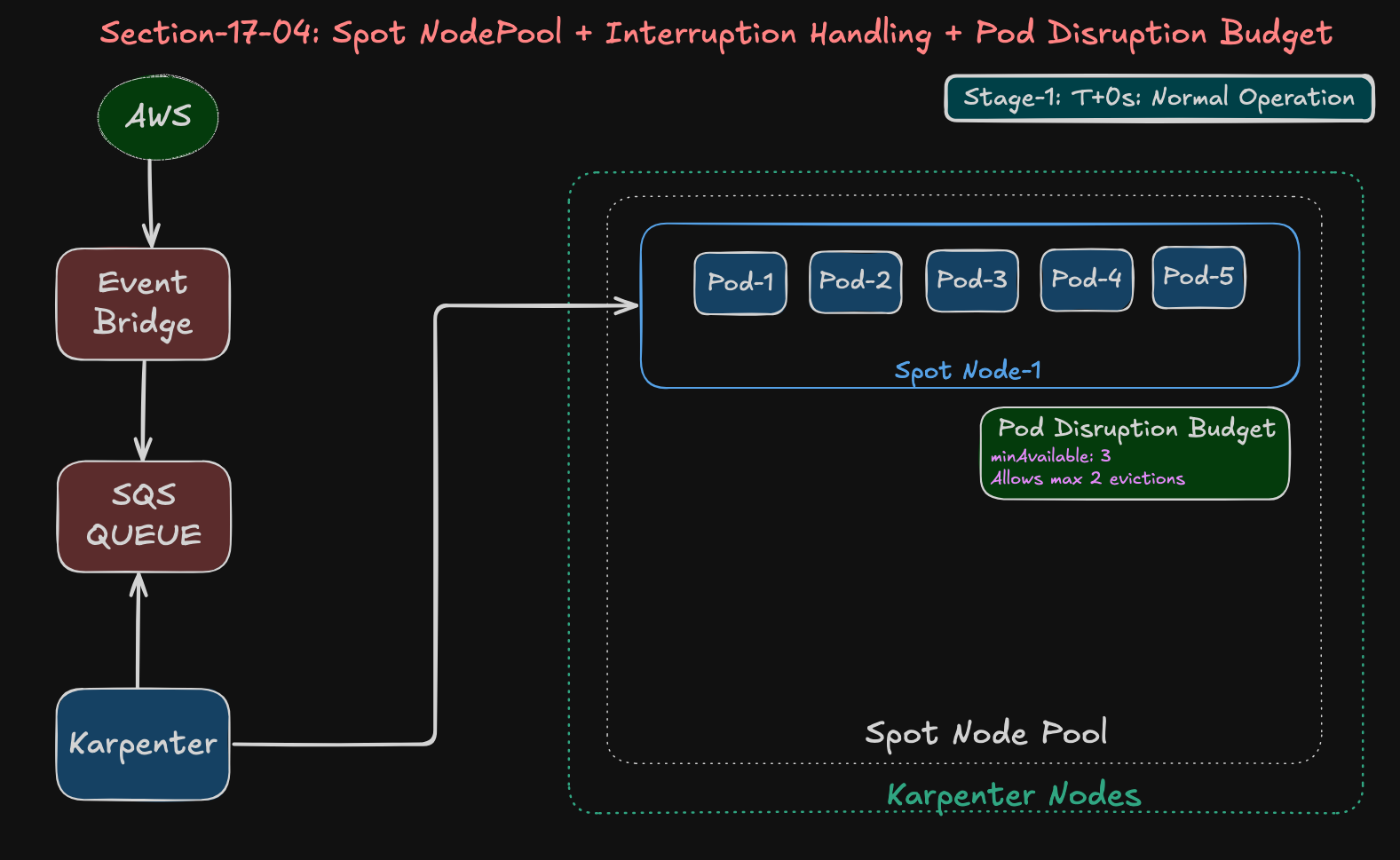

Stage-1: Karpenter Spot Instances - Interruption Handling¶

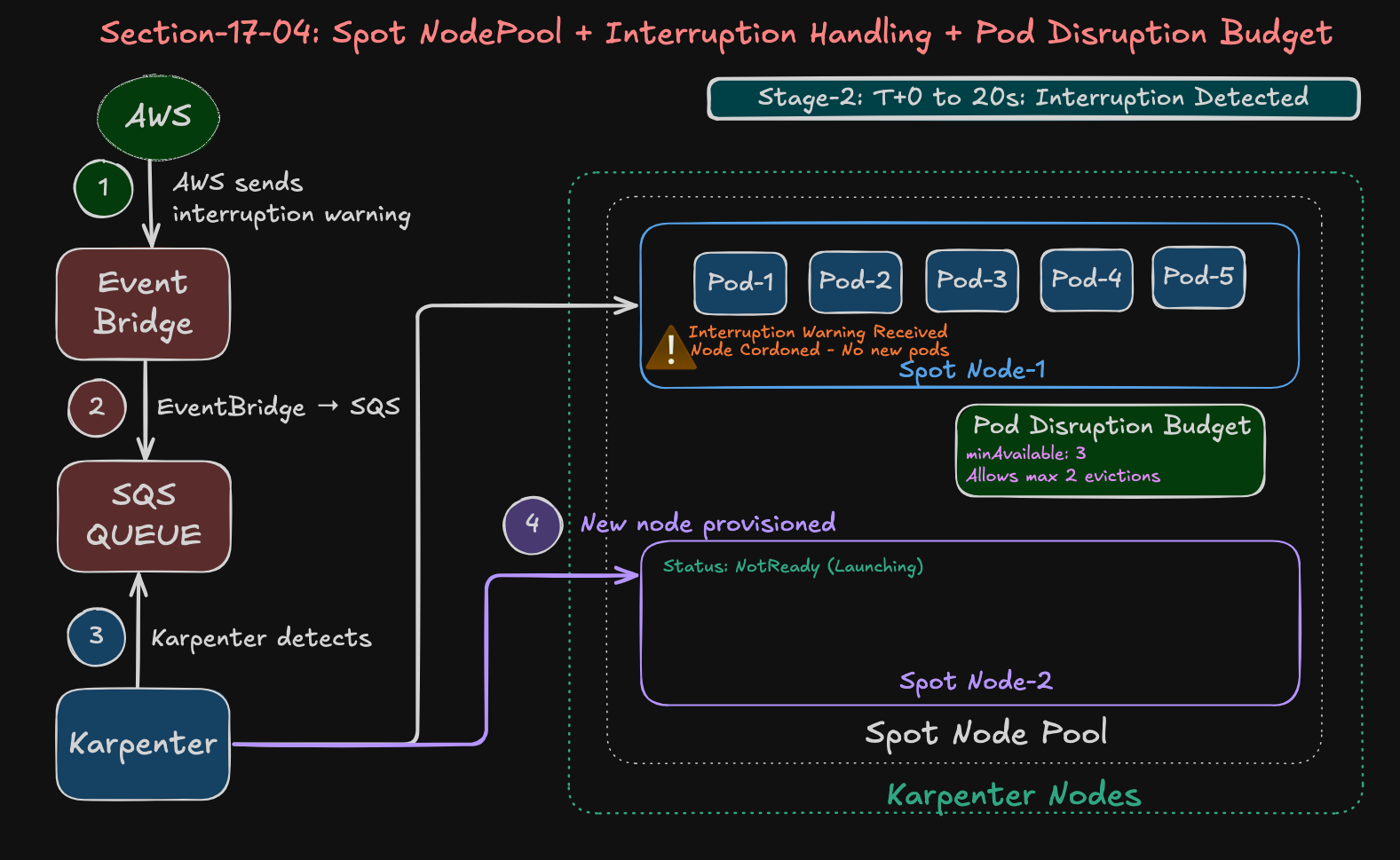

Stage-2: Karpenter Spot Instances - Interruption Handling¶

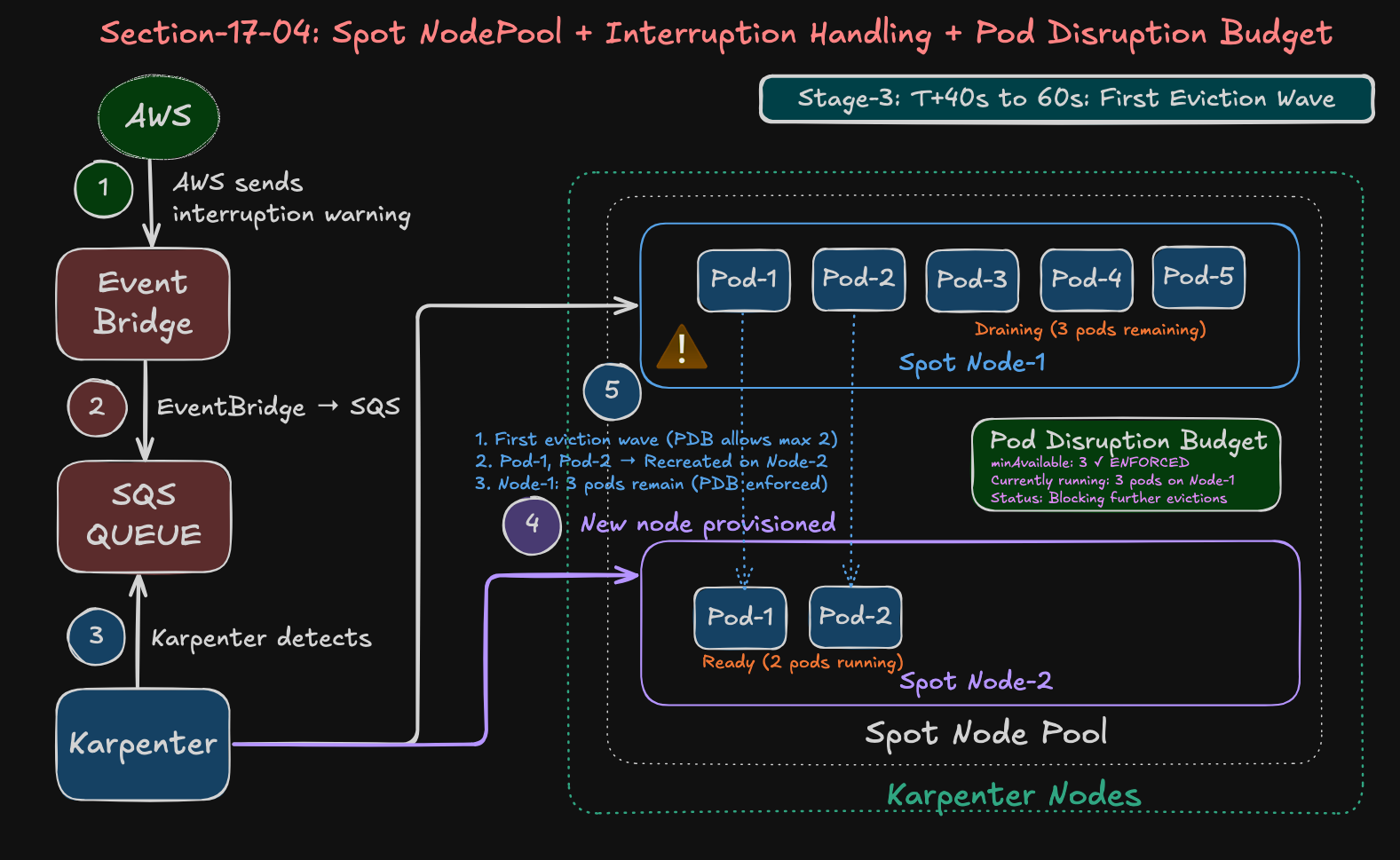

Stage-3: Karpenter Spot Instances - Interruption Handling¶

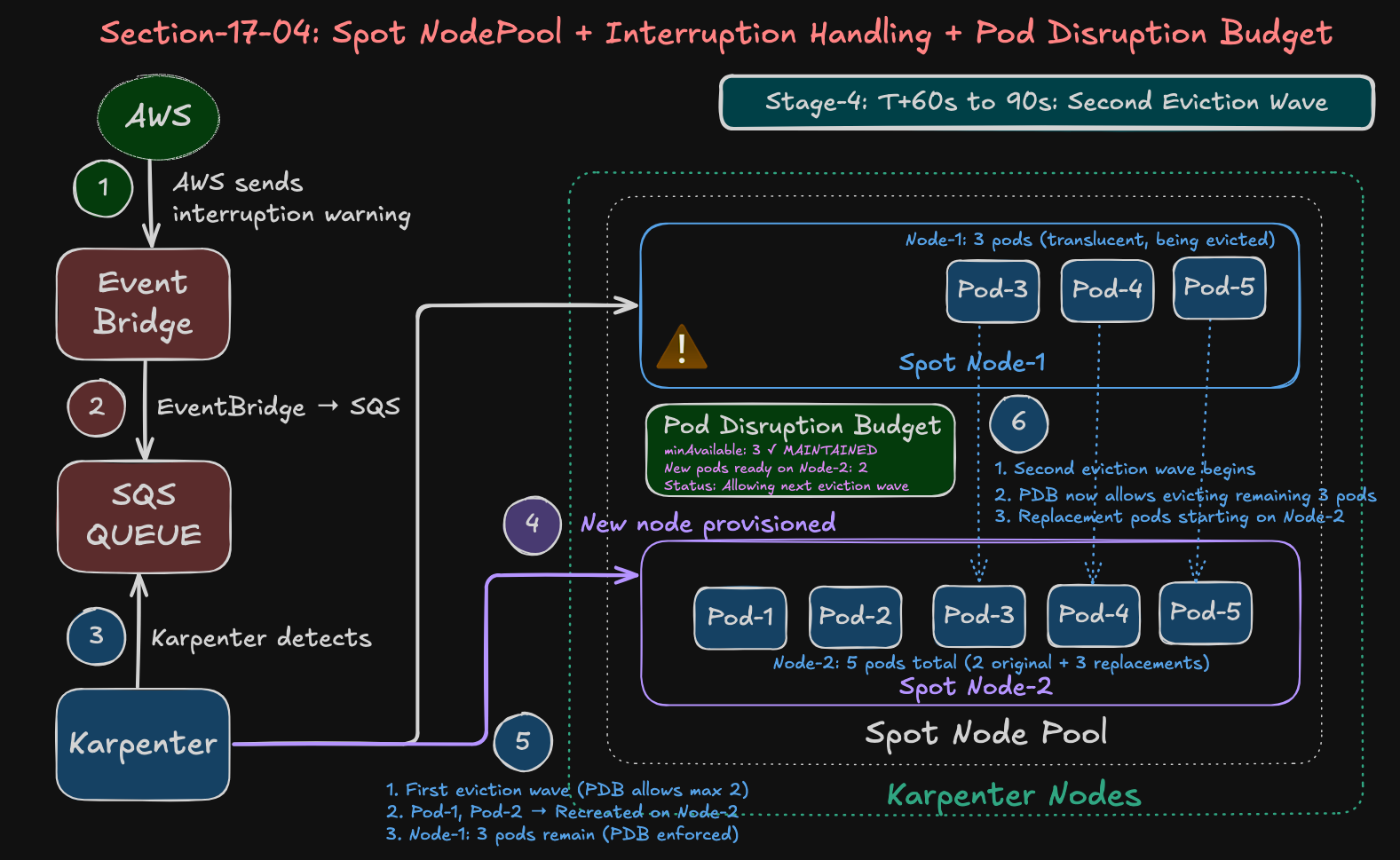

Stage-4: Karpenter Spot Instances - Interruption Handling¶

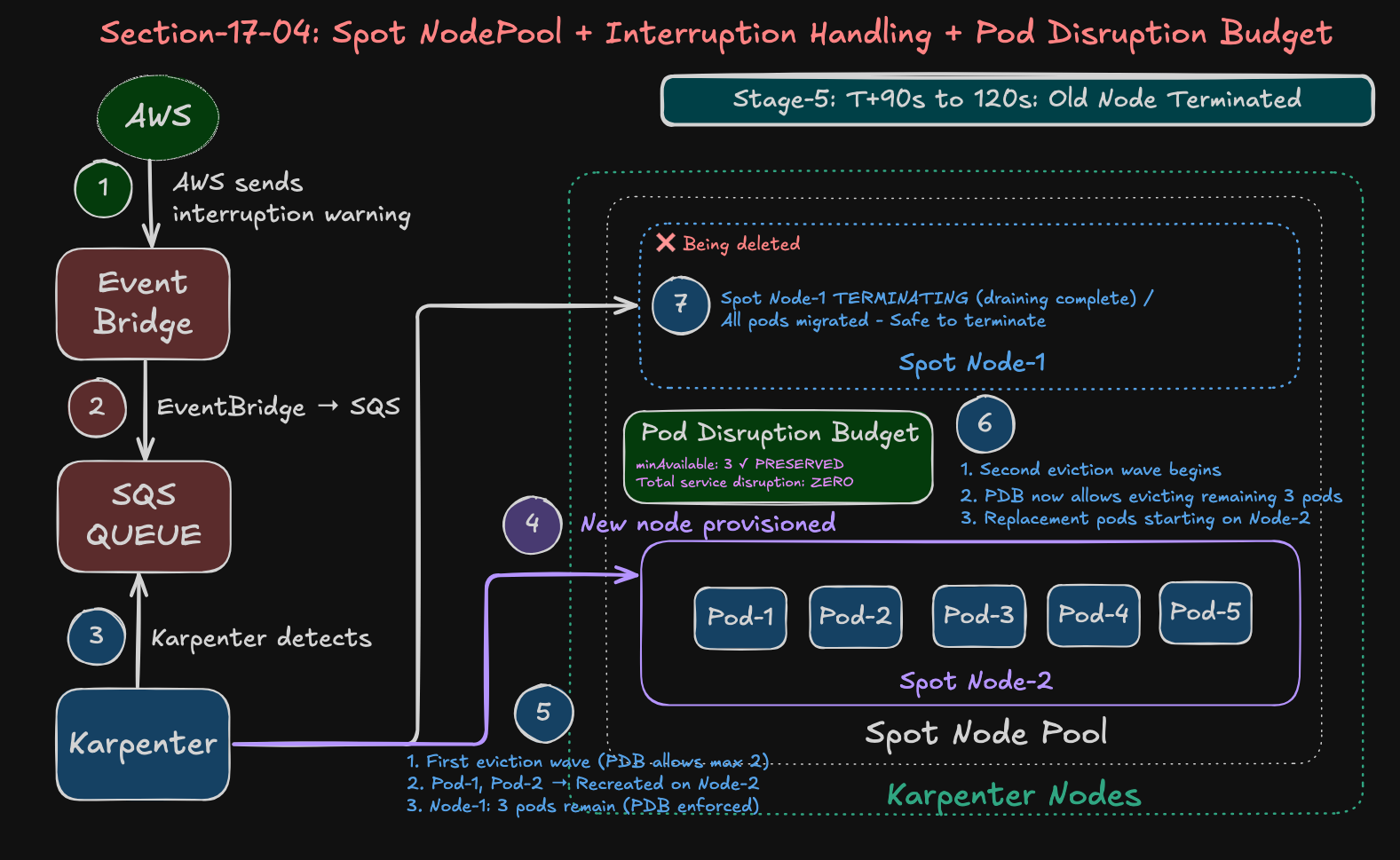

Stage-5: Karpenter Spot Instances - Interruption Handling¶

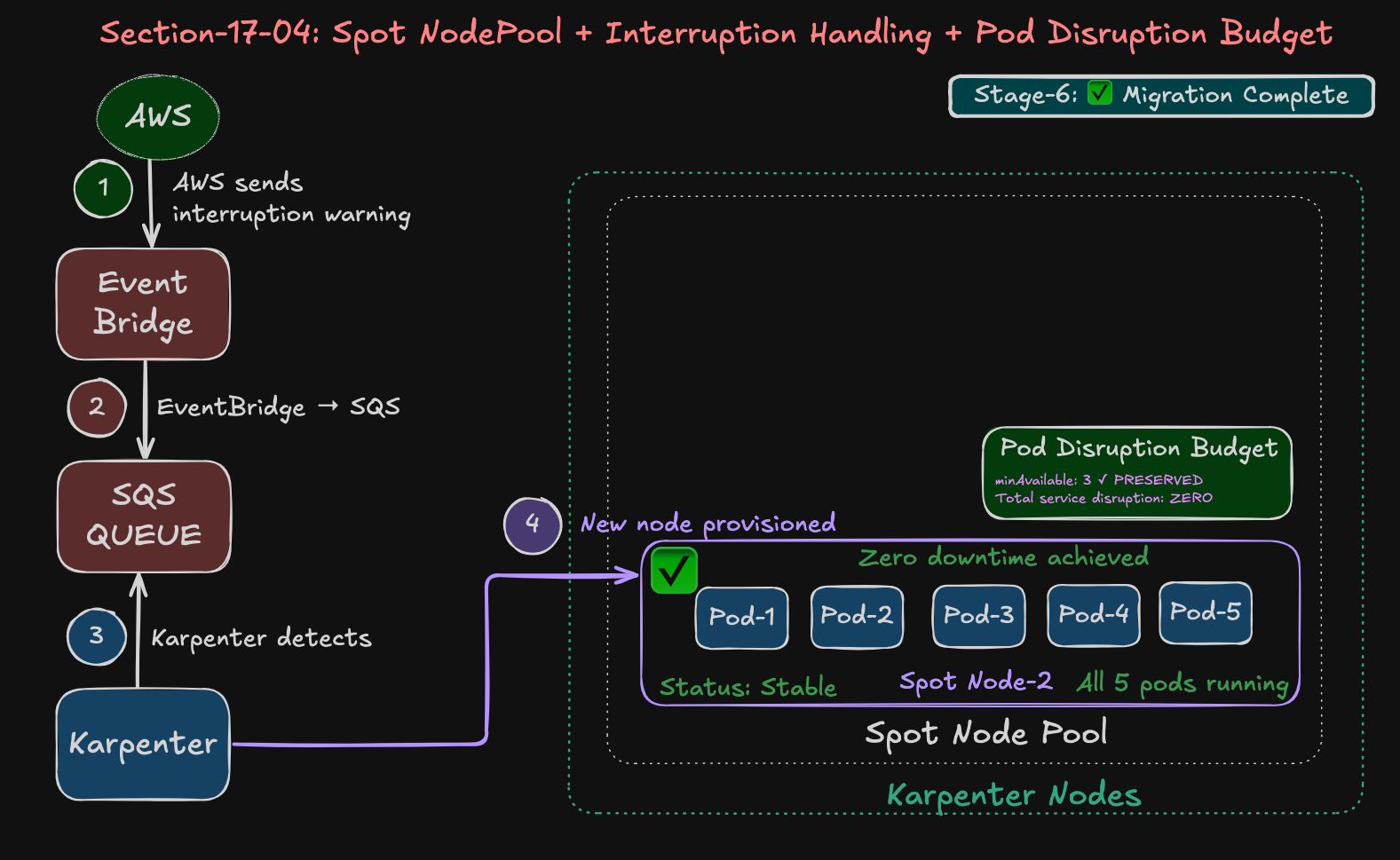

Stage-6: Karpenter Spot Instances - Interruption Handling¶
Understanding Spot Interruptions¶
The 2-Minute Warning:
T = 0s: AWS decides to reclaim instance
T = 0s: Interruption warning sent (EventBridge → SQS)
T = 120s: Instance terminates (no exceptions!)
Without Karpenter: - ❌ Pods get hard-killed after 2 minutes - ❌ Service disruption - ❌ Failed requests
With Karpenter: - ✅ Graceful pod termination - ✅ Automatic rescheduling to healthy nodes - ✅ Zero downtime
Step-02: How Karpenter Handles Interruptions¶
The Flow:
1. AWS sends interruption warning → EventBridge → SQS Queue
2. Karpenter polls SQS (every 10 seconds), detects message
3. Karpenter cordons node (stops new pod scheduling)
4. Karpenter provisions replacement node (proactive!)
5. Karpenter drains node (respects PodDisruptionBudgets)
6. Kubernetes reschedules pods to new node
7. Old node terminates after pods are safe
Key Point: Karpenter starts provisioning the new node BEFORE draining the old one - this is why there's zero downtime!
Step-03: Prerequisites¶
Ensure you have from previous demos:
✅ Karpenter installed with interruption queue (17_01)
✅ Spot NodePool deployed (17_01)
✅ SQS queue connected to EventBridge (17_01)
Quick verification:
# 1. Check Karpenter is running
kubectl get pods -n kube-system -l app.kubernetes.io/name=karpenter
# 2. Verify interruption queue configured
helm get values karpenter -n kube-system | grep interruptionQueue
# Expected: interruptionQueue: retail-dev-eksdemo1
# 3. Check SQS queue exists
aws sqs list-queues | grep -i retail-dev-eksdemo1
Step-04: Review Test Application¶
We'll deploy a simple app with 5 replicas and a PodDisruptionBudget to ensure availability during interruptions.
Key configuration in Spot_Interruption_Handling.yaml:
apiVersion: apps/v1
kind: Deployment
metadata:
name: spot-test-app
namespace: default
spec:
replicas: 5
selector:
matchLabels:
app: spot-test
template:
metadata:
labels:
app: spot-test
spec:
nodeSelector:
karpenter.sh/capacity-type: spot # ← Force Spot nodes
terminationGracePeriodSeconds: 30 # ← Allow graceful shutdown
containers:
- name: nginx
image: nginx:alpine
ports:
- containerPort: 80
resources:
requests:
cpu: 100m
memory: 128Mi
limits:
cpu: 200m
memory: 256Mi
---
# PodDisruptionBudget - THE KEY TO ZERO DOWNTIME
apiVersion: policy/v1
kind: PodDisruptionBudget
metadata:
name: spot-test-app-pdb
namespace: default
spec:
minAvailable: 3 # ← Keep at least 3 pods running during disruptions
selector:
matchLabels:
app: spot-test
Why PodDisruptionBudget (PDB) is critical: - Without PDB: All 5 pods could be evicted immediately → service down! - With PDB (minAvailable: 3): Max 2 pods evicted at a time → service stays up!
Step-05: Deploy Test Application¶
# Deploy the test app
cd 17_04_Karpenter_Spot_Interruption_Handling
kubectl apply -f kube-manifests-Spot-Interruption-Handling/Spot_Interruption_Handling.yaml
# Output
deployment.apps/spot-test-app created
poddisruptionbudget.policy/spot-test-app-pdb created
Verify pods are running:
# Watch pods get scheduled (takes ~1-2 minutes)
kubectl get pods -l app=spot-test -o wide
# Expected: All 5 pods Running on a Spot node
# NAME READY STATUS NODE
# spot-test-app-xxx 1/1 Running ip-10-0-11-246.ec2.internal
# spot-test-app-yyy 1/1 Running ip-10-0-11-246.ec2.internal
# ... (3 more)
Checkpoint: ✅ 5 pods running on Spot node
Step-06: Prepare Monitoring (Open 4 Terminals)¶
Before triggering the interruption, open 4 terminal windows to watch the magic:
Terminal 1: Karpenter Logs (Filtered)¶
kubectl logs -n kube-system -l app.kubernetes.io/name=karpenter -f | \
grep -E "interrupt|cordon|drain"
Terminal 2: Node Status¶
Terminal 3: Pod Status¶
Terminal 4: NodeClaims¶
Step-07: Simulate Spot Interruption¶
Open a 5th terminal and send the interruption message:
# Get the Spot instance ID
SPOT_INSTANCE_ID=$(kubectl get nodes -l karpenter.sh/capacity-type=spot -o json | \
jq -r '.items[0].spec.providerID' | cut -d'/' -f5)
echo "Target Instance: $SPOT_INSTANCE_ID"
# Get SQS queue URL
CLUSTER_NAME="retail-dev-eksdemo1"
QUEUE_URL=$(aws sqs get-queue-url --queue-name $CLUSTER_NAME --query QueueUrl --output text)
# Send interruption message
aws sqs send-message \
--queue-url "$QUEUE_URL" \
--message-body "{
\"version\": \"0\",
\"id\": \"test-interrupt-$(date +%s)\",
\"detail-type\": \"EC2 Spot Instance Interruption Warning\",
\"source\": \"aws.ec2\",
\"account\": \"123456789012\",
\"time\": \"$(date -u +%Y-%m-%dT%H:%M:%SZ)\",
\"region\": \"us-east-1\",
\"resources\": [
\"arn:aws:ec2:us-east-1:123456789012:instance/$SPOT_INSTANCE_ID\"
],
\"detail\": {
\"instance-id\": \"$SPOT_INSTANCE_ID\",
\"instance-action\": \"terminate\"
}
}"
echo "✅ Interruption message sent!"
echo "🔍 Watch your 4 monitoring terminals..."
Step-08: Watch the Magic Happen ✨¶
Now watch your 4 terminals! Here's what you'll see:
Terminal 1: Karpenter Logs¶
{"level":"INFO","message":"initiating delete from interruption message",
"queue":"retail-dev-eksdemo1","messageKind":"spot_interrupted",
"NodeClaim":{"name":"spot-nodepool-xjqfh"},"action":"CordonAndDrain",
"Node":{"name":"ip-10-0-11-246.ec2.internal"}}
Key events: - ✅ Message detected within 10-20 seconds - ✅ Node cordoned (no new pods) - ✅ Drain initiated
Terminal 2: Node Status¶
# T+0s: Original node running
ip-10-0-11-246.ec2.internal Ready 34m
# T+40s: New replacement node appears!
ip-10-0-11-246.ec2.internal Ready 41m
ip-10-0-12-253.ec2.internal NotReady 0s ← NEW NODE!
# T+60s: New node ready
ip-10-0-12-253.ec2.internal Ready 19s
# T+2m30s: Old node draining
ip-10-0-11-246.ec2.internal NotReady 43m
# T+3m: Old node deleted
ip-10-0-12-253.ec2.internal Ready 4m44s ← Only new node remains
Key observation: ✅ New node ready BEFORE old node fully drained = zero downtime!
Terminal 3: Pod Status¶
# T+0s: All pods on old node
spot-test-app-xxx 1/1 Running ip-10-0-11-246.ec2.internal
spot-test-app-yyy 1/1 Running ip-10-0-11-246.ec2.internal
... (5 total)
# T+40s: First 2 pods evicted (PDB allows max 2 at a time)
spot-test-app-xxx 0/1 Completed ip-10-0-11-246.ec2.internal
spot-test-app-yyy 1/1 Terminating ip-10-0-11-246.ec2.internal
spot-test-app-aaa 0/1 Pending <none> ← Replacement pods!
spot-test-app-bbb 0/1 Pending <none>
# T+60s: New pods scheduled to new node
spot-test-app-aaa 1/1 Running ip-10-0-12-253.ec2.internal
spot-test-app-bbb 1/1 Running ip-10-0-12-253.ec2.internal
# T+2m: Remaining 3 pods evicted and replaced
... (similar pattern)
# T+3m: All 5 pods running on new node ✅
spot-test-app-aaa 1/1 Running ip-10-0-12-253.ec2.internal
spot-test-app-bbb 1/1 Running ip-10-0-12-253.ec2.internal
... (5 total on NEW node)
Key observation: ✅ Always 3+ pods running (thanks to PDB) = zero downtime!
Terminal 4: NodeClaims¶
# Old NodeClaim
spot-nodepool-xjqfh t2.small spot ip-10-0-11-246.ec2.internal True
# New NodeClaim appears
spot-nodepool-s68tk t2.small spot Unknown
spot-nodepool-s68tk t2.small spot ip-10-0-12-253.ec2.internal True
# Old NodeClaim deleted
spot-nodepool-s68tk t2.small spot ip-10-0-12-253.ec2.internal True ← Only new
Step-09: Verify Success¶
After ~2-3 minutes, verify everything worked:
# Check all pods running
kubectl get pods -l app=spot-test -o wide
# Expected output:
# NAME READY STATUS RESTARTS NODE
# spot-test-app-xxx 1/1 Running 0 ip-10-0-12-253.ec2.internal
# ... (5 pods total, all Running, RESTARTS=0)
Success indicators: - ✅ All 5 pods Running - ✅ RESTARTS: 0 (clean migration, no crashes) - ✅ All on new node (different IP from original) - ✅ Old node deleted
# Verify only new Spot node exists
kubectl get nodes -l karpenter.sh/capacity-type=spot
# Expected: Only 1 node (the new one)
# NAME STATUS AGE
# ip-10-0-12-253.ec2.internal Ready 4m44s
Timeline summary: - ⚡ Detection: 10-20 seconds - ⚡ New node provisioned: 30-40 seconds - ⚡ Full migration: ~2-3 minutes - ⚡ Downtime: ZERO (PDB kept 3 pods running throughout)
Step-10: Why This Worked - The Secret Sauce¶
The PodDisruptionBudget (PDB) - The Hero¶
apiVersion: policy/v1
kind: PodDisruptionBudget
spec:
minAvailable: 3 # ← This is what prevented downtime!
What PDB does:
Without PDB:
T+20s: Karpenter drains node
→ All 5 pods evicted immediately
→ 0/5 pods running ← SERVICE DOWN! ❌
T+60s: New node ready, pods rescheduled
→ 5/5 pods running ← 40 seconds of downtime!
With PDB (minAvailable: 3):
T+20s: Karpenter drains node
→ PDB blocks: "You can only evict 2 pods, must keep 3 running!"
→ 2 pods evicted, 3 stay running ← SERVICE UP! ✅
T+40s: New node ready
→ 2 replacement pods start
→ Now 5/5 pods running (3 old + 2 new)
T+60s: PDB allows evicting remaining 3 pods (replacements ready)
→ All 5 pods now on new node ← ZERO downtime! ✅
The formula:
Other Key Components¶
1. terminationGracePeriodSeconds: 30 - Gives pods 30 seconds to shut down gracefully - Nginx handles this automatically (stops accepting new connections, completes in-flight requests) - Must be < 120s (the Spot interruption window)
2. Diverse instance types - Karpenter can pick from multiple instance families - If t3 Spot is unavailable, tries t3a, t2, c5a, etc. - Increases chance of finding replacement capacity quickly
Step-11: Clean Up¶
# Delete the test deployment
kubectl delete -f kube-manifests-Spot-Interruption-Handling/Spot_Interruption_Handling.yaml
# Output
deployment.apps "spot-test-app" deleted
poddisruptionbudget.policy "spot-test-app-pdb" deleted
Karpenter will automatically clean up the unused Spot node in ~30-60 seconds.
# Watch automatic cleanup
kubectl get nodes -l karpenter.sh/capacity-type=spot -w
# After ~30s, the node will be deleted (consolidation)
Verify complete cleanup:
kubectl get nodes -l karpenter.sh/capacity-type=spot
# Expected: No resources found
kubectl get nodeclaims
# Expected: No resources found (or only on-demand nodes)
Step-12: Production Best Practices¶
Now that you've seen it work, here's how to use this in production:
1. Always Use PodDisruptionBudgets¶
For any production deployment:
apiVersion: policy/v1
kind: PodDisruptionBudget
metadata:
name: my-app-pdb
spec:
minAvailable: 2 # At least 2 pods for HA
selector:
matchLabels:
app: my-app
Or for StatefulSets:
2. Set Appropriate Grace Periods¶
| Workload Type | Recommended |
|---|---|
| Stateless API | 30s |
| WebSocket server | 60s |
| Batch job | 90s |
Never exceed 90s - you need buffer before AWS force-terminates at 120s!
3. Set terminationGracePeriodSeconds Appropriately¶
Your application needs time to shut down gracefully: - ✅ Stop accepting new connections - ✅ Complete in-flight requests - ✅ Close database connections - ✅ Flush logs/metrics
Most web servers (nginx, Apache) handle this automatically - they respond to SIGTERM by gracefully shutting down.
For custom applications, ensure your code handles termination signals properly.
4. Mix Spot and On-Demand for Critical Apps¶
Best practice for production:
# 60% on Spot (cost savings)
apiVersion: apps/v1
kind: Deployment
metadata:
name: my-app-spot
spec:
replicas: 3
template:
spec:
nodeSelector:
karpenter.sh/capacity-type: spot
---
# 40% on On-Demand (stability)
apiVersion: apps/v1
kind: Deployment
metadata:
name: my-app-ondemand
spec:
replicas: 2
template:
spec:
nodeSelector:
karpenter.sh/capacity-type: on-demand
Result: - 60% cost savings from Spot - 40% guaranteed capacity from On-Demand - Even if all Spot nodes interrupted simultaneously, 2 pods stay up!
5. Use Diverse Instance Types¶
# In your Spot NodePool
requirements:
- key: karpenter.k8s.aws/instance-family
operator: In
values: ["t3", "t3a", "t2", "c5a", "c6a", "m5"] # ← Multiple options
Why: If t3 Spot is unavailable, Karpenter tries t3a, then t2, etc. Increases replacement node availability.
Summary¶
You just proved Spot instances are production-ready with Karpenter!
What you demonstrated: - ✅ Karpenter detects interruptions in ~10-20 seconds (SQS polling) - ✅ Proactively provisions replacement nodes - ✅ Gracefully migrates pods with zero downtime - ✅ PodDisruptionBudgets maintain service availability - ✅ Complete in ~2-3 minutes from interruption to full recovery
The magic formula:
Key takeaway for production:
Spot instances with Karpenter are NOT risky - they're a smart, cost-effective choice when you use PodDisruptionBudgets and configure appropriate grace periods for your applications.
