18: Horizontal Pod Autoscaling (HPA) for Retail Store Application¶

Step-01: Introduction¶

Horizontal Pod Autoscaling (HPA) automatically scales your application pods based on resource utilization. When load increases, Kubernetes scales pods up. When load decreases, it scales them back down automatically.

In this section, we’re bringing autoscaling to our full Retail Store microservices stack running on:

AWS RDS MySQL (Catalog)
DynamoDB (Cart)
Redis (Checkout)
PostgreSQL + SQS (Orders)

Plus we’ll schedule everything on Karpenter On-demand nodes

This section completes the full real-world scaling story of our cluster.

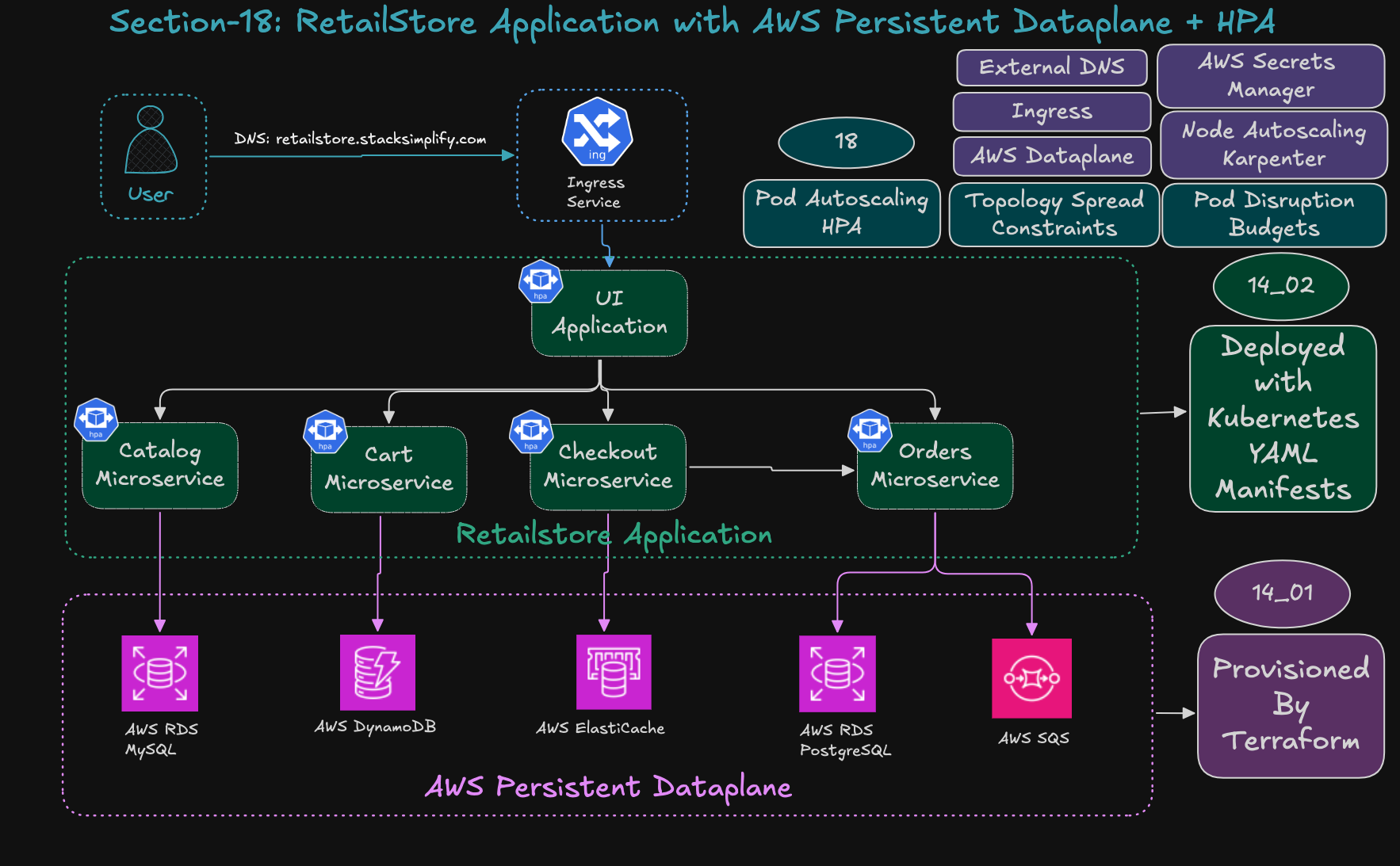

What are we going to learn?¶

What are we going to learn?? 1. Pod Autoscaling: Horizontal Pod Autoscaler 2. Pod Disruption Budgets 3. Topology Spread Constraints

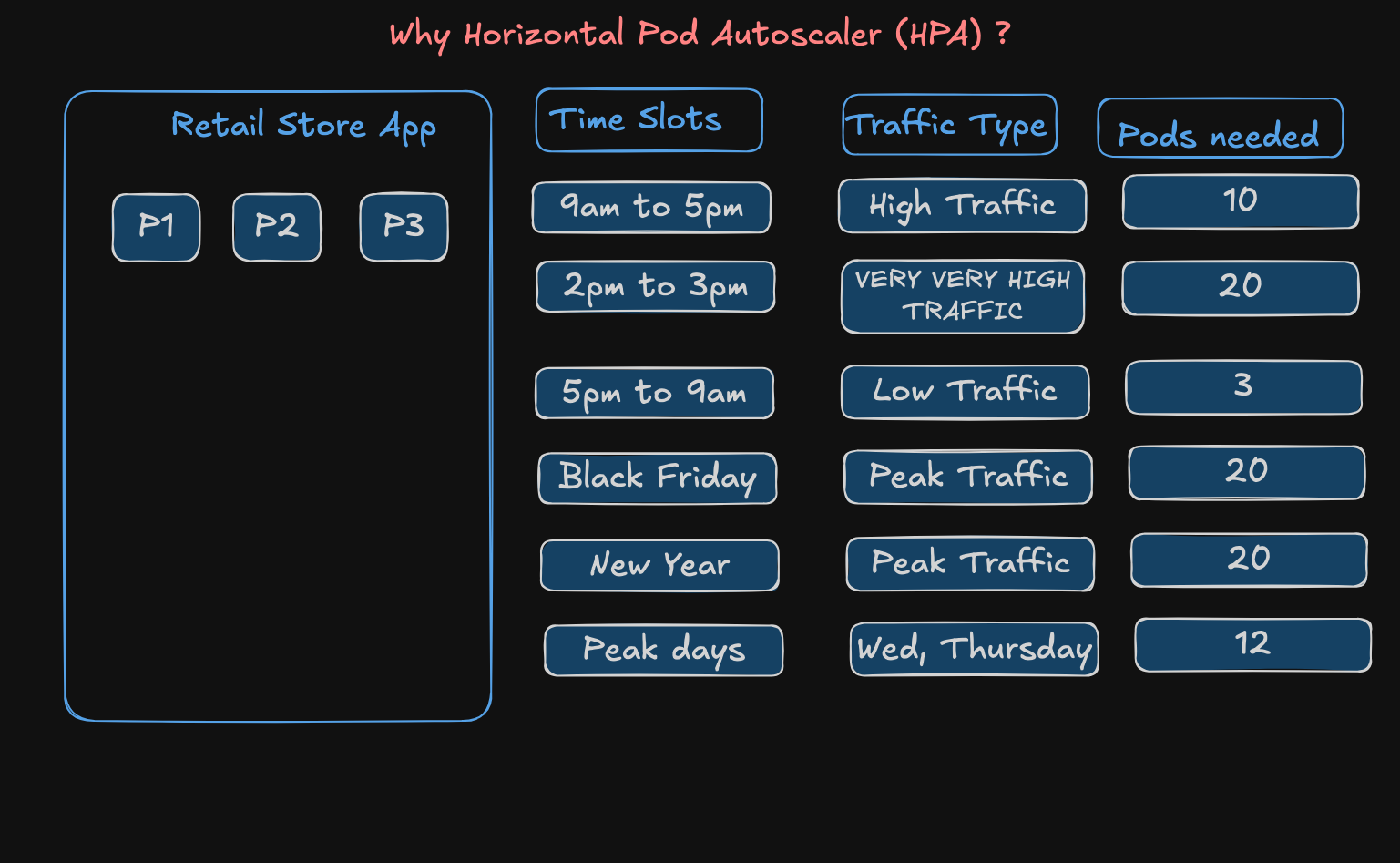

Why Horizontal Pod Autoscaler?¶

Why Horizontal Pod Autoscaler?

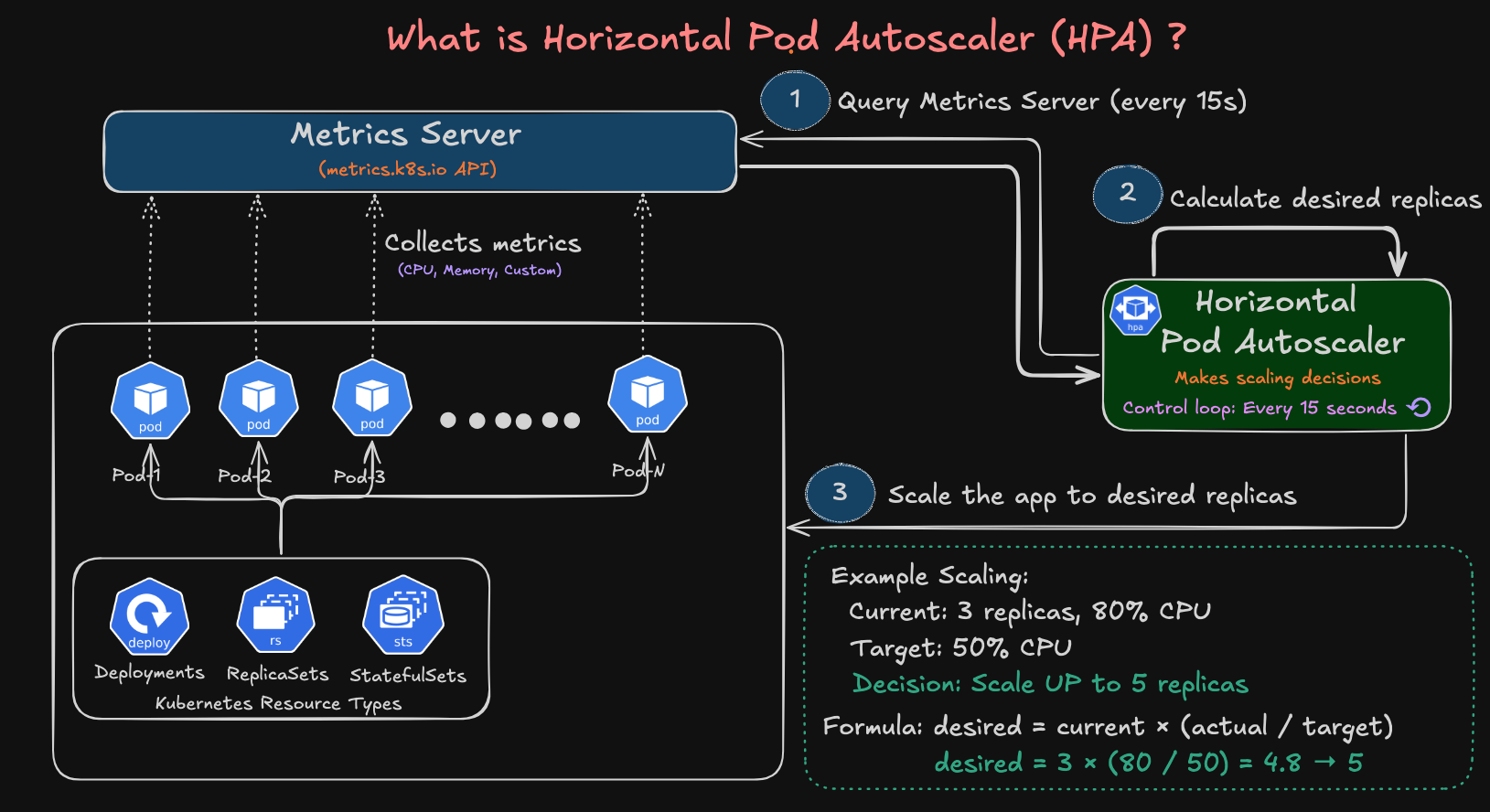

What is Horizontal Pod Autoscaler?¶

Why Horizontal Pod Autoscaler?

Project Folder Structure¶

18_Autoscaling_HPA/
├── 01_Metrics_Server_terraform-manifests
│   ├── c1_versions.tf
│   ├── c2_variables.tf
│   ├── c3_eks_remote_state.tf
│   └── c4_eksaddon_metrics_server.tf
├── 02_AWS_Data_Plane_terraform-manifests
│   ├── c1_versions.tf
│   ├── c2_variables.tf
│   ├── c3_01_vpc_remote_state.tf
│   ├── c3_02_eks_remote_state.tf
│   ├── c4_datasources_and_locals.tf
│   ├── c5_01_podidentity_assumerole.tf
│   ├── c5_02_secretstorecsi_iam_policy.tf
│   ├── c6_01_catalog_rds_mysql_security_group.tf
│   ├── c6_02_catalog_rds_mysql_dbsubnet_group.tf
│   ├── c6_03_catalog_rds_mysql_credentials.tf
│   ├── c6_04_catalog_rds_mysql_dbinstance.tf
│   ├── c6_05_catalog_sa_iam_role.tf
│   ├── c6_06_catalog_sa_eks_pod_identity_association.tf
│   ├── c7_01_cart_dynamoDB_iam_policy_and_role.tf
│   ├── c7_02_cart_eks_pod_identity_association.tf
│   ├── c7_03_cart_dynamodb_table.tf
│   ├── c8_01_checkout_redis_security_group.tf
│   ├── c8_02_checkout_redis_subnet_group.tf
│   ├── c8_03_checkout_redis_cluster.tf
│   ├── c9_01_orders_postgresql_security_group.tf
│   ├── c9_02_orders_postgresql_db_subnet_group.tf
│   ├── c9_03_orders_postgresql_dbinstance.tf
│   ├── c9_04_orders_postgresql_sa_iam_role.tf
│   ├── c9_05_orders_postgresql_sa_eks_pod_identity_association.tf
│   ├── c9_06_orders_aws_sqs_queue.tf
│   └── c9_07_orders_aws_sqs_iam_policy.tf
├── 03_RetailStore_k8s_manifests_with_Data_Plane_ScheduleAnyway
│   ├── 01_secretproviderclass
│   │   ├── 01_catalog_db_secretproviderclass.yaml
│   │   └── 02_orders_db_secretproviderclass.yaml
│   ├── 02_RetailStore_Microservices
│   │   ├── 01_catalog
│   │   │   ├── 01_catalog_service_account.yaml
│   │   │   ├── 02_catalog_configmap.yaml
│   │   │   ├── 03_catalog_deployment.yaml
│   │   │   ├── 04_catalog_clusterip_service.yaml
│   │   │   └── 05_catalog_mysql_externalname_service.yaml
│   │   ├── 02_cart
│   │   │   ├── 01_cart_service_account.yaml
│   │   │   ├── 02_cart_configmap.yaml
│   │   │   ├── 03_cart_deployment.yaml
│   │   │   └── 04_cart_clusterip_service.yaml
│   │   ├── 03_checkout
│   │   │   ├── 01_checkout_service_account.yaml
│   │   │   ├── 02_checkout_configmap.yaml
│   │   │   ├── 03_checkout_deployment.yaml
│   │   │   └── 04_checkout_clusterip_service.yaml
│   │   ├── 04_orders
│   │   │   ├── 01_orders_service_account.yaml
│   │   │   ├── 02_orders_configmap.yaml
│   │   │   ├── 03_orders_deployment.yaml
│   │   │   └── 04_orders_clusterip_service.yaml
│   │   └── 05_ui
│   │       ├── 01_ui_service_account.yaml
│   │       ├── 02_ui_configmap.yaml
│   │       ├── 03_ui_deployment.yaml
│   │       └── 04_ui_clusterip_service.yaml
│   ├── 03_ingress
│   │   └── 01_ingress_http_ip_mode.yaml
│   ├── 04_HPA
│   │   ├── 01_catalog_hpa.yaml
│   │   ├── 02_carts_hpa.yaml
│   │   ├── 03_checkout_hpa.yaml
│   │   ├── 04_orders_hpa.yaml
│   │   └── 05_ui_hpa.yaml
│   └── 05_PDB
│       ├── 01_catalog_pdb.yaml
│       ├── 02_carts_pdb.yaml
│       ├── 03_checkout_pdb.yaml
│       ├── 04_orders_pdb.yaml
│       └── 05_ui_pdb.yaml
├── 04_RetailStore_k8s_manifests_with_Data_Plane_DoNotSchedule
│   ├── 01_secretproviderclass
│   │   ├── 01_catalog_db_secretproviderclass.yaml
│   │   └── 02_orders_db_secretproviderclass.yaml
│   ├── 02_RetailStore_Microservices
│   │   ├── 01_catalog
│   │   │   ├── 01_catalog_service_account.yaml
│   │   │   ├── 02_catalog_configmap.yaml
│   │   │   ├── 03_catalog_deployment.yaml
│   │   │   ├── 04_catalog_clusterip_service.yaml
│   │   │   └── 05_catalog_mysql_externalname_service.yaml
│   │   ├── 02_cart
│   │   │   ├── 01_cart_service_account.yaml
│   │   │   ├── 02_cart_configmap.yaml
│   │   │   ├── 03_cart_deployment.yaml
│   │   │   └── 04_cart_clusterip_service.yaml
│   │   ├── 03_checkout
│   │   │   ├── 01_checkout_service_account.yaml
│   │   │   ├── 02_checkout_configmap.yaml
│   │   │   ├── 03_checkout_deployment.yaml
│   │   │   └── 04_checkout_clusterip_service.yaml
│   │   ├── 04_orders
│   │   │   ├── 01_orders_service_account.yaml
│   │   │   ├── 02_orders_configmap.yaml
│   │   │   ├── 03_orders_deployment.yaml
│   │   │   └── 04_orders_clusterip_service.yaml
│   │   └── 05_ui
│   │       ├── 01_ui_service_account.yaml
│   │       ├── 02_ui_configmap.yaml
│   │       ├── 03_ui_deployment.yaml
│   │       └── 04_ui_clusterip_service.yaml
│   ├── 03_ingress
│   │   └── 01_ingress_http_ip_mode.yaml
│   ├── 04_HPA
│   │   ├── 01_catalog_hpa.yaml
│   │   ├── 02_carts_hpa.yaml
│   │   ├── 03_checkout_hpa.yaml
│   │   ├── 04_orders_hpa.yaml
│   │   └── 05_ui_hpa.yaml
│   └── 05_PDB
│       ├── 01_catalog_pdb.yaml
│       ├── 02_carts_pdb.yaml
│       ├── 03_checkout_pdb.yaml
│       ├── 04_orders_pdb.yaml
│       └── 05_ui_pdb.yaml
├── check-topology.sh
└── README.md

Step-02: Install Metrics Server (EKS Add-On)¶

📝 HPA literally can’t work without Metrics Server — it’s the component that feeds CPU/Memory metrics to the Kubernetes API.

Step-02-01: Folder Structure¶

18_Autoscaling_HPA/
├── 01_Metrics_Server_terraform-manifests
│   ├── c1_versions.tf
│   ├── c2_variables.tf
│   ├── c3_eks_remote_state.tf
│   └── c4_eksaddon_metrics_server.tf  # EKS Add-On install for Metrics Server

Step-02-02: Run Terraform¶

terraform init
terraform validate
terraform plan
terraform apply -auto-approve

Step-03: Create AWS Data Plane¶

📝 We’re reusing the same AWS Data Plane setup from Section-14-01. If it already exists, students can skip the apply. If not, they run this folder fresh.

Step-03-01: Folder Structure¶

18_Autoscaling_HPA/
├── 02_AWS_Data_Plane_terraform-manifests
│   ├── c1_versions.tf
│   ├── c2_variables.tf
│   ├── c3_01_vpc_remote_state.tf
│   ├── c3_02_eks_remote_state.tf
│   ├── c4_datasources_and_locals.tf
│   ├── c5_01_podidentity_assumerole.tf
│   ├── c5_02_secretstorecsi_iam_policy.tf
│   ├── c6_01_catalog_rds_mysql_security_group.tf
│   ├── c6_02_catalog_rds_mysql_dbsubnet_group.tf
│   ├── c6_03_catalog_rds_mysql_credentials.tf
│   ├── c6_04_catalog_rds_mysql_dbinstance.tf
│   ├── c6_05_catalog_sa_iam_role.tf
│   ├── c6_06_catalog_sa_eks_pod_identity_association.tf
│   ├── c7_01_cart_dynamoDB_iam_policy_and_role.tf
│   ├── c7_02_cart_eks_pod_identity_association.tf
│   ├── c7_03_cart_dynamodb_table.tf
│   ├── c8_01_checkout_redis_security_group.tf
│   ├── c8_02_checkout_redis_subnet_group.tf
│   ├── c8_03_checkout_redis_cluster.tf
│   ├── c9_01_orders_postgresql_security_group.tf
│   ├── c9_02_orders_postgresql_db_subnet_group.tf
│   ├── c9_03_orders_postgresql_dbinstance.tf
│   ├── c9_04_orders_postgresql_sa_iam_role.tf
│   ├── c9_05_orders_postgresql_sa_eks_pod_identity_association.tf
│   ├── c9_06_orders_aws_sqs_queue.tf
│   └── c9_07_orders_aws_sqs_iam_policy.tf

Step-03-02: Update RetailStore Microservice AWS Dataplane Endpoints¶

Catalog -> AWS RDS Mysql: 05_catalog_mysql_externalname_service.yaml
Carts -> AWS DynamoDB: 02_cart_configmap.yaml
Checkout -> AWS ElastiCache: 02_checkout_configmap.yaml
Orders -> AWS RDS Postgresql: 02_orders_configmap.yaml
Orders -> AWS SQS Queue: 02_orders_configmap.yaml

Step-03-03: Apply Terraform¶

terraform init
terraform validate
terraform plan
terraform apply -auto-approve

Step-04: Force Retail Store Workloads to Run on Karpenter On-demand Nodes¶

Add this block to all five microservice Deployments:

      # Forces Pods to run ONLY on On-demand nodes
      nodeSelector:
        karpenter.sh/capacity-type: on-demand

Affected files:

catalog → 03_catalog_deployment.yaml
cart → 03_cart_deployment.yaml
checkout → 03_checkout_deployment.yaml
orders → 03_orders_deployment.yaml
ui → 03_ui_deployment.yaml

Step-05: Review Horizontal Pod Autoscaler (HPA) YAMLs¶

📝 Each microservice gets its own HPA object. We’ll scale based on CPU/Memory thresholds defined per service.

Folder:

│   ├── 04_HPA
│   │   ├── 01_catalog_hpa.yaml
│   │   ├── 02_carts_hpa.yaml
│   │   ├── 03_checkout_hpa.yaml
│   │   ├── 04_orders_hpa.yaml
│   │   └── 05_ui_hpa.yaml

Step-06: Review TopologySpreadConstraints¶

Review topologySpreadConstraints in all the Kubernetes Deployment files for all 5 Retail Store services

Step-06-01: Files changed as part of `topologySpreadConstraints`¶

├── 03_RetailStore_k8s_manifests_with_Data_Plane_ScheduleAnyway
│   ├── 02_RetailStore_Microservices
│   │   ├── 01_catalog
│   │   │   ├── 03_catalog_deployment.yaml
│   │   ├── 02_cart
│   │   │   ├── 03_cart_deployment.yaml
│   │   ├── 03_checkout
│   │   │   ├── 03_checkout_deployment.yaml
│   │   ├── 04_orders
│   │   │   ├── 03_orders_deployment.yaml
│   │   └── 05_ui
│   │       ├── 03_ui_deployment.yaml

Step-06-02: Sample specifications `topologySpreadConstraints`¶

# ..... deployment spec
    spec:
      # TOPOLOGY SPREAD CONSTRAINTS - Distribute pods across nodes AND availability zones
      topologySpreadConstraints:
        # Spread across nodes (within same AZ)
        - maxSkew: 1
          topologyKey: kubernetes.io/hostname
          whenUnsatisfiable: ScheduleAnyway
          labelSelector:
            matchLabels:
              app.kubernetes.io/name: ui
              app.kubernetes.io/component: service

        # Spread across availability zones
        - maxSkew: 1
          topologyKey: topology.kubernetes.io/zone
          whenUnsatisfiable: ScheduleAnyway
          labelSelector:
            matchLabels:
              app.kubernetes.io/name: ui
              app.kubernetes.io/component: service

# ........... deployment spec continued

¶

Step-07: Review Pod Disruption Budget files¶

Step-07-01: Pod Disruption Budget Files¶

│   └── 05_PDB
│       ├── 01_catalog_pdb.yaml
│       ├── 02_carts_pdb.yaml
│       ├── 03_checkout_pdb.yaml
│       ├── 04_orders_pdb.yaml
│       └── 05_ui_pdb.yaml

Step-07-02: Pod Disruption Budget YAML File¶

apiVersion: policy/v1
kind: PodDisruptionBudget
metadata:
  name: catalog-pdb
  namespace: default
  labels:
    app.kubernetes.io/name: catalog
    app.kubernetes.io/instance: catalog
    app.kubernetes.io/component: availability
    app.kubernetes.io/owner: retail-store-sample
spec:
  minAvailable: 2
  selector:
    matchLabels:
      app.kubernetes.io/name: catalog
      app.kubernetes.io/instance: catalog
      app.kubernetes.io/component: service
      app.kubernetes.io/owner: retail-store-sample

Step-08: Deploy Retail Store Application With HPA Enabled¶

Project Folder: 03_RetailStore_k8s_manifests_with_Data_Plane_ScheduleAnyway

# Change Directory
cd 03_RetailStore_k8s_manifests_with_Data_Plane_ScheduleAnyway

# Deploy YAML Files
kubectl apply -f 01_secretproviderclass
kubectl apply -R -f 02_RetailStore_Microservices
kubectl apply -f 03_ingress
kubectl apply -f 04_HPA
kubectl apply -f 05_PDB

# Verify Kubernetes Resources
kubectl get pods
kubectl get deploy
kubectl get ingress
kubectl get hpa

# Describe HPA
kubectl describe hpa catalog-hpa

# Karpenter-related resources
kubectl get nodes -o wide
kubectl get nodeclaims -o wide

# Veriy   POD TOPOLOGY DISTRIBUTION REPORT
./check-topology.sh

Step-09: HPA Testing (Memory-Based Autoscaling)¶

📝 This is the fun part — we intentionally force a scale-out event by lowering memory requests.

Step-09-01: Reduce Orders Deployment Memory (to trigger HPA)¶

# 03_orders_deployment.yaml
          resources:
            limits:
              memory: 512Mi
              cpu: 500m
            requests:
              # memory: 356Mi
              # Set low on purpose to hit 80% utilization fast
              memory: 256Mi
              cpu: 100m

Step-09-02: Apply and Verify¶

# Change Directory
cd 03_RetailStore_k8s_manifests_with_Data_Plane_ScheduleAnyway

# Re-deploy Orders Application
kubectl apply -f 02_RetailStore_Microservices/04_orders/03_orders_deployment.yaml

# Verify Kubernetes Resources
kubectl get pods | grep orders
kubectl get hpa
kubectl describe hpa orders-hpa

Step-09-03: Roll Back to Normal Values¶

requests:
  memory: 356Mi
  cpu: 100m

Step-09-04: Re-Apply and Validate¶

# Change Directory
cd 03_RetailStore_k8s_manifests_with_Data_Plane_ScheduleAnyway

# Re-deploy Orders Application
kubectl apply -f 02_RetailStore_Microservices/04_orders/03_orders_deployment.yaml

# Verify Kubernetes Resources
kubectl get pods | grep orders
kubectl get hpa
kubectl describe hpa orders-hpa

Step-10: Undeploy Application from 03_RetailStore_k8s_XXXXX_ScheduleAnyway¶

# Change Directory
cd 18_Autoscaling_HPA

# Delete Kubernetes Manifests
kubectl -R -f 03_RetailStore_k8s_manifests_with_Data_Plane_ScheduleAnyway

Step-11: Verify topologySpreadConstraints with DoNotSchedule option for Availability Zones¶

# Change Directory
cd 04_RetailStore_k8s_manifests_with_Data_Plane_DoNotSchedule

# Deploy YAML Files
kubectl apply -f 01_secretproviderclass
kubectl apply -R -f 02_RetailStore_Microservices
kubectl apply -f 03_ingress
kubectl apply -f 04_HPA
kubectl apply -f 05_PDB

# Verify Kubernetes Resources
kubectl get pods
kubectl get deploy
kubectl get ingress
kubectl get hpa

# Karpenter-related resources
kubectl get nodes -o wide
kubectl get nodeclaims -o wide

# Veriy   POD TOPOLOGY DISTRIBUTION REPORT
./check-topology.sh

Sample Output: check-topology.sh¶

Kalyans-Mac-mini:18_Autoscaling_HPA kalyanreddy$ ./check-topology.sh
╔════════════════════════════════════════════════════════════════════════════╗
║              POD TOPOLOGY DISTRIBUTION REPORT                              ║
╚════════════════════════════════════════════════════════════════════════════╝

📍 NODES AND THEIR ZONES:
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
NODE                                     ZONE
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
ip-10-0-10-16.ec2.internal               us-east-1a
ip-10-0-10-189.ec2.internal              us-east-1a
ip-10-0-10-231.ec2.internal              us-east-1a
ip-10-0-10-232.ec2.internal              us-east-1a
ip-10-0-11-233.ec2.internal              us-east-1b
ip-10-0-11-243.ec2.internal              us-east-1b
ip-10-0-12-102.ec2.internal              us-east-1c
ip-10-0-12-191.ec2.internal              us-east-1c
ip-10-0-12-206.ec2.internal              us-east-1c

🚀 PODS DISTRIBUTION BY APPLICATION:
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
APP          POD                                      NODE                                     ZONE
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
carts        carts-6d78bdf8f8-dtnjn                   ip-10-0-11-243.ec2.internal              us-east-1b
carts        carts-6d78bdf8f8-lnhpx                   ip-10-0-12-102.ec2.internal              us-east-1c
carts        carts-6d78bdf8f8-r2882                   ip-10-0-10-232.ec2.internal              us-east-1a
catalog      catalog-77675cf55c-6lrlk                 ip-10-0-10-231.ec2.internal              us-east-1a
catalog      catalog-77675cf55c-kvnrw                 ip-10-0-12-102.ec2.internal              us-east-1c
catalog      catalog-77675cf55c-pfr4r                 ip-10-0-11-243.ec2.internal              us-east-1b
checkout     checkout-877577d8f-gwqsb                 ip-10-0-12-191.ec2.internal              us-east-1c
checkout     checkout-877577d8f-qfw6j                 ip-10-0-11-243.ec2.internal              us-east-1b
checkout     checkout-877577d8f-wknkm                 ip-10-0-10-232.ec2.internal              us-east-1a
orders       orders-655774cbfd-mkr9g                  ip-10-0-11-243.ec2.internal              us-east-1b
orders       orders-655774cbfd-sg4qx                  ip-10-0-10-16.ec2.internal               us-east-1a
orders       orders-655774cbfd-zhddz                  ip-10-0-12-191.ec2.internal              us-east-1c
ui           ui-6ddcbdc6fd-mccns                      ip-10-0-11-243.ec2.internal              us-east-1b
ui           ui-6ddcbdc6fd-nfnxk                      ip-10-0-12-191.ec2.internal              us-east-1c
ui           ui-6ddcbdc6fd-tgqw9                      ip-10-0-10-16.ec2.internal               us-east-1a

📊 ZONE DISTRIBUTION SUMMARY:
━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━

📦 carts:
  us-east-1a:     1  pods ✅
  us-east-1b:     1  pods ✅
  us-east-1c:     1  pods ✅

📦 catalog:
  us-east-1a:     1  pods ✅
  us-east-1b:     1  pods ✅
  us-east-1c:     1  pods ✅

📦 checkout:
  us-east-1a:     1  pods ✅
  us-east-1b:     1  pods ✅
  us-east-1c:     1  pods ✅

📦 orders:
  us-east-1a:     1  pods ✅
  us-east-1b:     1  pods ✅
  us-east-1c:     1  pods ✅

📦 ui:
  us-east-1a:     1  pods ✅
  us-east-1b:     1  pods ✅
  us-east-1c:     1  pods ✅

━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━━
✅ Topology spread analysis complete!

💡 INTERPRETATION GUIDE:
  ✅ = Pods present in this zone (good for HA)
  ⚠️  = No pods in this zone (may want to investigate)

Kalyans-Mac-mini:18_Autoscaling_HPA kalyanreddy$

Step-12: Clean-Up¶

📝 Important for students who don’t want AWS bills hitting them later.

cd 18_Autoscaling_HPA

# Remove RetailStore app
kubectl delete -R -f 04_RetailStore_k8s_manifests_with_Data_Plane_DoNotSchedule

# Delete AWS Dataplane
cd 02_AWS_Data_Plane_terraform-manifests
terraform destroy -auto-approve

# Delete Metrics Server
cd ../01_Metrics_Server_terraform-manifests
terraform destroy -auto-approve

Step-13: Clean-Up Karpenter, EKS Cluster and VPC¶

This script destroy-cluster-with-karpenter.sh will remove projects in reverse order
04_KARPENTER_k8s-manifests
03_KARPENTER_terraform-manifests
02_EKS_terraform-manifests_with_addons

01_VPC_terraform-manifests

# Change Directory
cd 17_Autoscaling_Karpenter/17_01_Karpenter_Install

# Run Destroy Cluster with karpenter Script
./destroy-cluster-with-karpenter.sh
