20_02: End-to-End Tracing on EKS using AWS ADOT (OpenTelemetry)¶
Step-00: Introduction¶
- Implement OpenTelemetry ADOT Traces for Retail Store Application
- Traces are sent to AWS X-Ray via ADOT Collector
- View traces in AWS CloudWatch Application Signals conolse
- Includes health check filtering to reduce costs and noise
Trace Flow¶

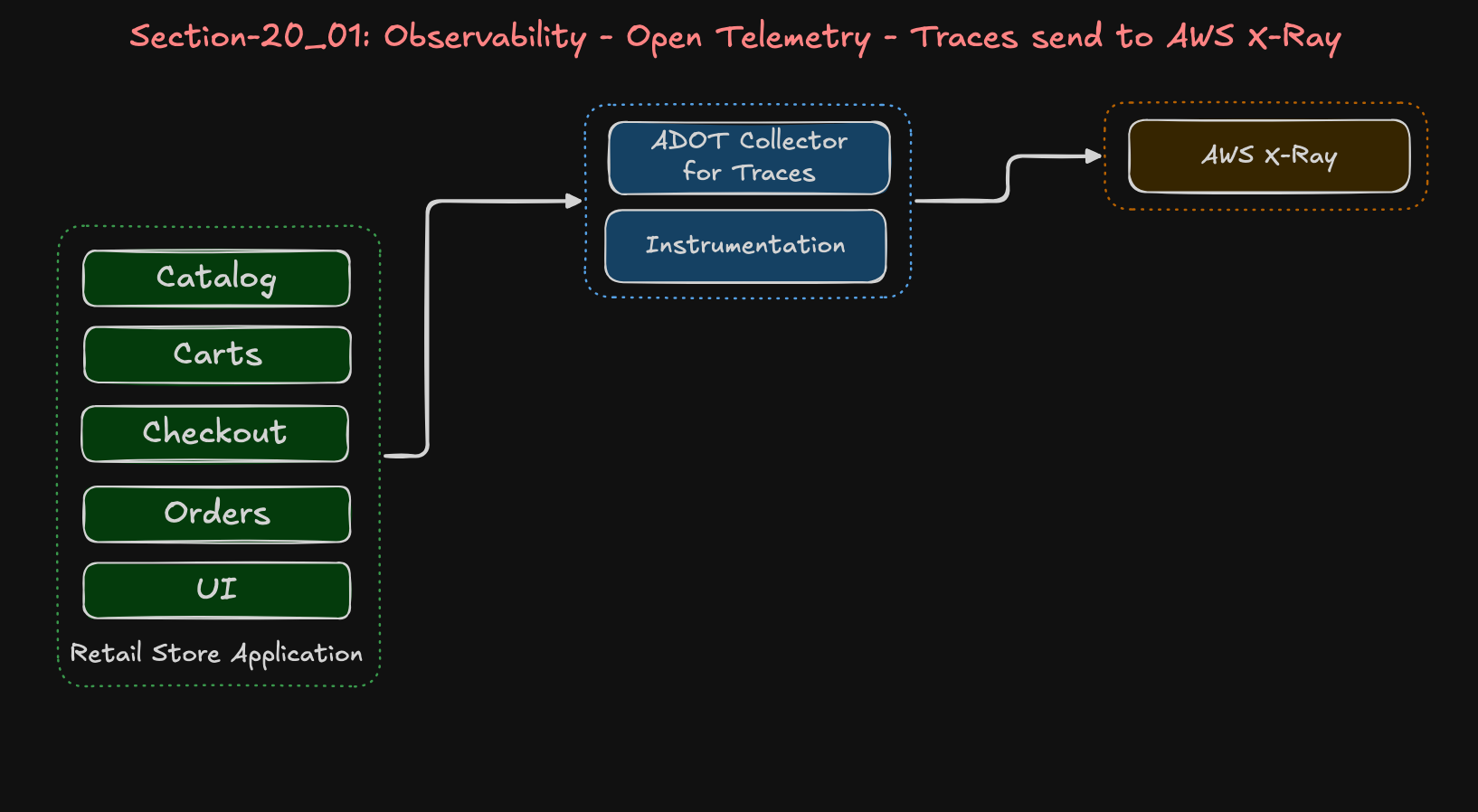

ADOT Collector Traces Architecture¶

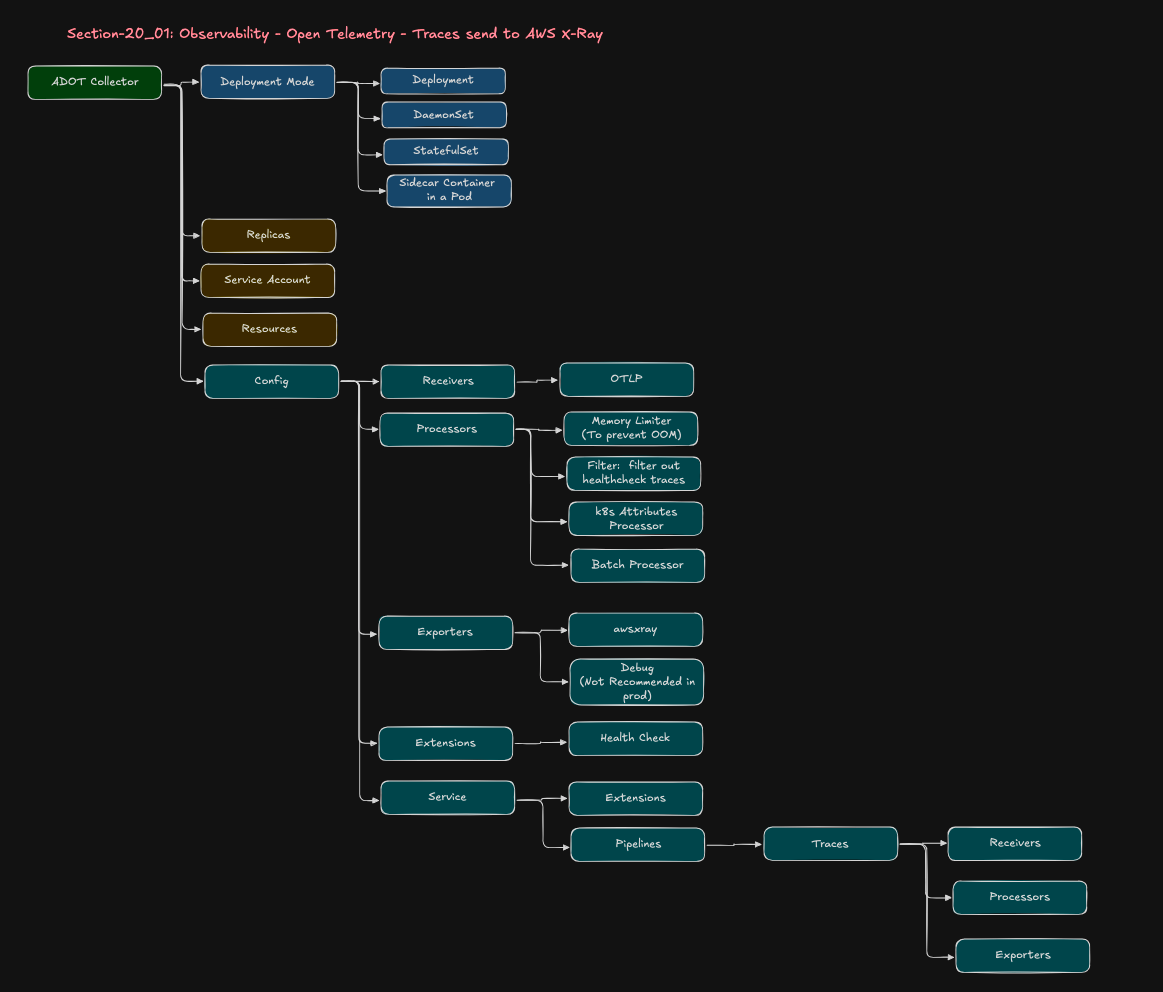

ADOT Collector YAML Structure¶

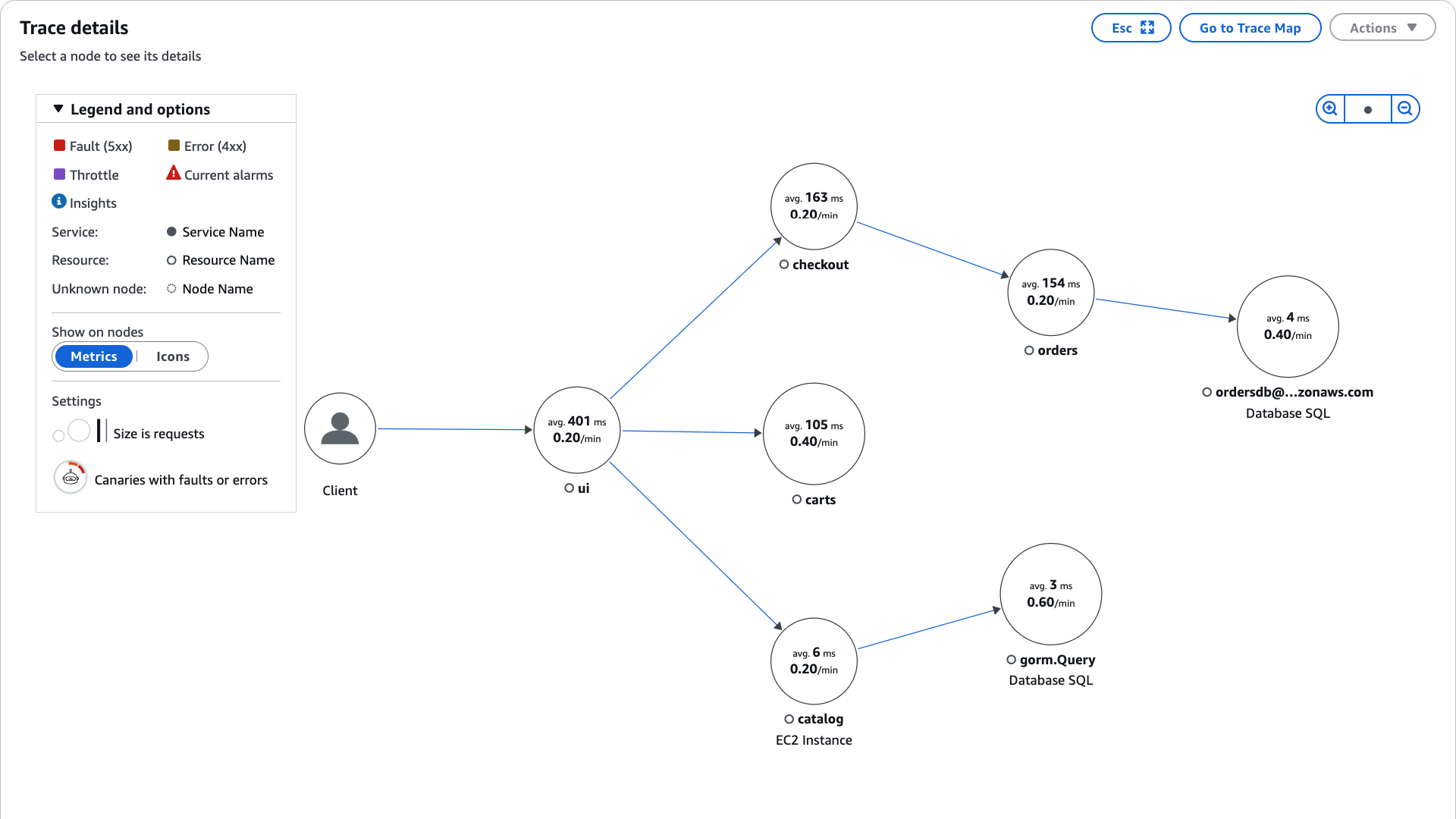

Sample Trace Map¶
Step-01: Pre-requisites¶
-
AWS VPC, EKS Cluster, Karpenter everything created as part of Section:20_01_EKS_Environment_with_ADOT - EKS Cluster
-
Open Telemetry Configurations (ADOT EKS Addon, other required EKS Addons, RBAC, Services Accounts, IAM Policy and Roles) created as part of Section:20_01_EKS_Environment_with_ADOT - 05_OPENTELEMTRY_terraform-manifests
-
Retail Store Application Data Plane created Section:20_01_EKS_Environment_with_ADOT - 01_RetailStore_AWS_Dataplane
-
Retail Store Application deployed with Open Telemetry settings enabled in custom values yaml files Section:20_01_EKS_Environment_with_ADOT - 02_RetailStore_App_Helm_AWS_Data_Plane
Step-02: Review 01_adot_collector_traces.yaml¶
- This defines how traces are received, processed, filtered, and exported to AWS X-Ray using ADOT.
- 01_adot_collector_traces.yaml
Step-03: Review 02_adot_instrumentation_traces.yaml¶
- This defines how application pods get OTEL SDK configuration without changing application code.
- 02_adot_instrumentation_traces.yaml
Important: - We are NOT using auto-instrumentation agents (Java agent, Node agent, etc.) - We are ONLY injecting OTEL SDK runtime configuration - Application code already contains manual instrumentation
Step-04: Deploy Traces ADOT Collector and Instrumentation¶
# Change Directory
cd 20_02_OpenTelemetry_Traces
# Deploy ADOT Collector and Review Logs
kubectl apply -f 01_OpenTelemetry_Traces/01_adot_collector_traces.yaml
# Verify ADOT Collector and Deployment
kubectl get opentelemetrycollector
kubectl get deploy
kubectl describe deployment adot-traces
# Verify if this collector is part of ADOT Operator installed via EKS Addon
kubectl describe deployment adot-traces | grep operator
# Review ADOT Collector Logs
kubectl get pods
kubectl logs -f <POD-NAME>
or
kubectl logs -f -l app.kubernetes.io/name=adot-traces-collector
# Deploy ADOT Instrumentation
kubectl apply -f 01_OpenTelemetry_Traces/02_adot_instrumentation_traces.yaml
# Verify ADOT Instrumentation
kubectl get instrumentation
Step-05: Review restart-retailapp.sh and run the script.¶
Note: The retail store applications are pre-built with OpenTelemetry SDK (manual instrumentation). We only need to inject the SDK runtime, not auto-instrumentation agents.
What this does:
- Injects OpenTelemetry SDK libraries into all pods in the namespace
- Provides OTLP exporter configuration from the Instrumentation resource
- Applications use their existing manual instrumentation code
- SDK gets configured to send traces to adot-traces-collector:4318
Verify Instrumentation Injection¶
- restart-retailapp.sh
# Restart Retail Apps ./restart-retailapp.sh # Verify ADOT Collector Logs kubectl logs -f -l app.kubernetes.io/name=adot-traces-collector # Verify Retail App Logs kubectl logs -f -l app.kubernetes.io/name=catalog kubectl logs -f -l app.kubernetes.io/name=carts kubectl logs -f -l app.kubernetes.io/name=checkout kubectl logs -f -l app.kubernetes.io/name=orders kubectl logs -f -l app.kubernetes.io/name=ui
Step-06: Review the CloudWatch Traces¶
- Go to AWS Cloud Watch -> Application Signals -> Traces What you'll see:*
- Complete end-to-end request flow (UI → Carts → Checkout → Orders)
- Database queries with sanitized SQL
- HTTP calls with status codes and latencies
- Kubernetes metadata (pod name, namespace, deployment, node)
Step-07: Clean-Up¶
# Delete Instrumentation
kubectl delete -f 01_OpenTelemetry_Traces/02_adot_instrumentation_traces.yaml
# Delete Traces Collector
kubectl delete -f 01_OpenTelemetry_Traces/01_adot_collector_traces.yaml
