20_03: Send Retail Store Application Logging on EKS using AWS ADOT (OpenTelemetry) to AWS CloudWatch Logs

Step-00: Introduction

  • Send Retail Store Applications logs using OpenTelemetry ADOT Collector to AWS CloudWatch Logs
  • Logs are sent to AWS CloudWatch via ADOT Collector
  • View Logs in AWS CloudWatch Log Management

Flow

Retail Apps → ADOT Collector → AWS Cloud Watch Logs

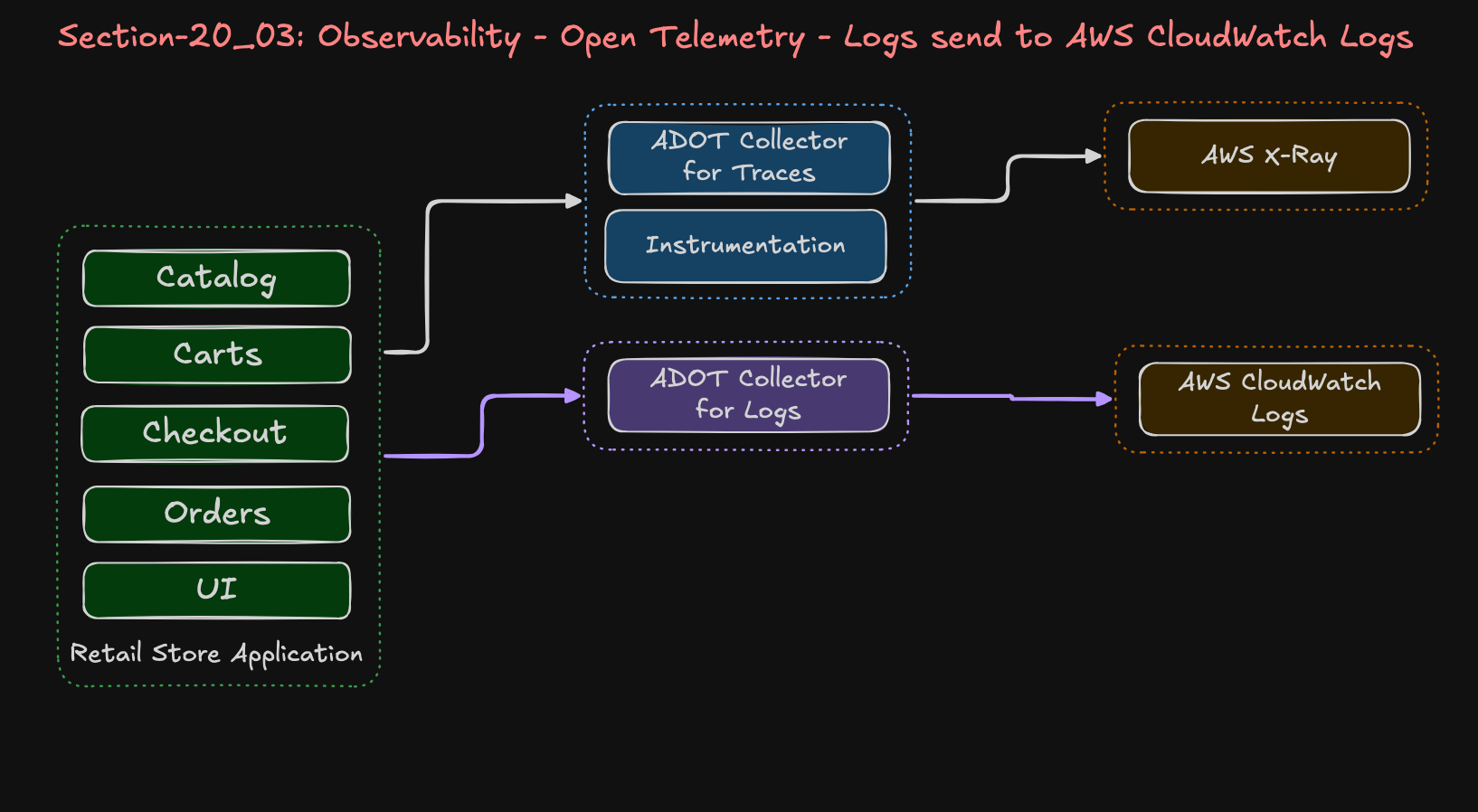

Open Telemetry Logs - Architectural Flow

Open Telemetry Logs - Architectural Flow

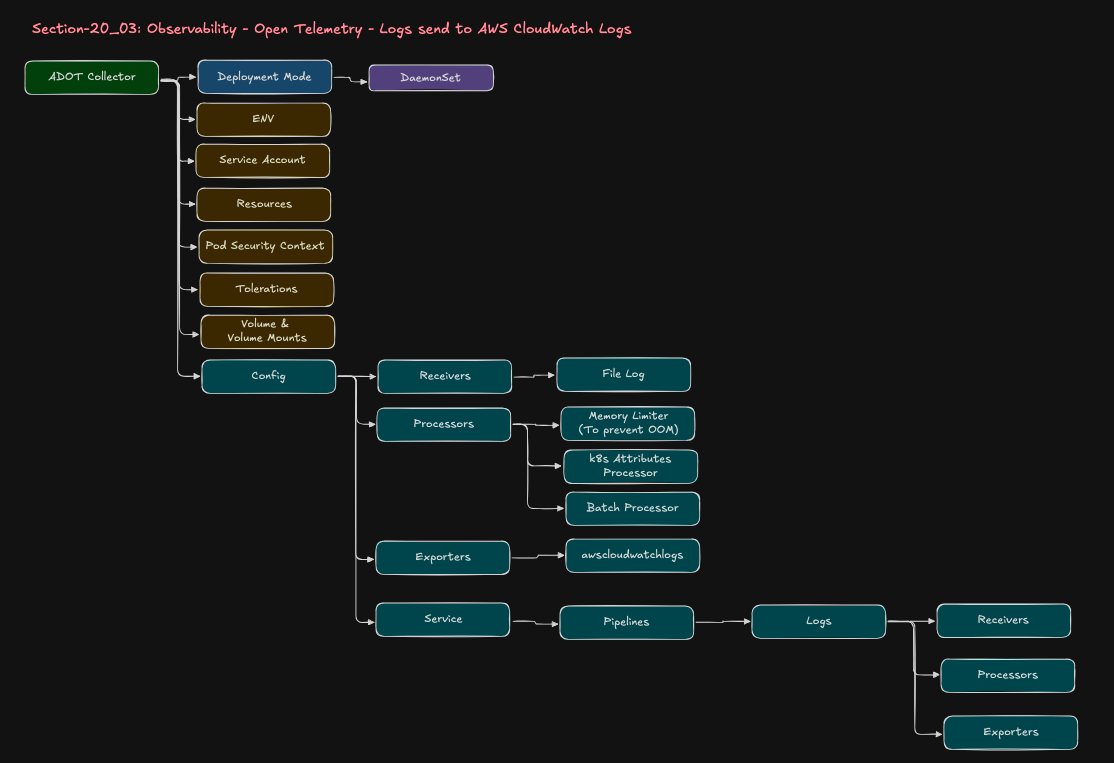

Open Telemetry Collector - Components

Open Telemetry Collector - Components

Step-01: Pre-requisites

  1. AWS VPC, EKS Cluster, Karpenter everything created as part of Section:20_01_EKS_Environment_with_ADOT - EKS Cluster

  2. Open Telemetry Configurations (ADOT EKS Addon, other required EKS Addons, RBAC, Services Accounts, IAM Policy and Roles) created as part of Section:20_01_EKS_Environment_with_ADOT - 05_OPENTELEMTRY_terraform-manifests

  3. Retail Store Application Data Plane created Section:20_01_EKS_Environment_with_ADOT - 01_RetailStore_AWS_Dataplane

  4. Retail Store Application deployed Section:20_01_EKS_Environment_with_ADOT - 02_RetailStore_App_Helm_AWS_Data_Plane

Step-02: Review Logs ADOT Collector

Step-03: Deploy Logs ADOT Collector

# Change Directory
cd 20_03_OpenTelemetry_Logs

# Deploy Logs ADOT Collector and Review Logs
kubectl apply -f 01_OpenTelemetry_Logs/01_adot_collector_logs.yaml

# Verify ADOT Collector and Daemonset
kubectl get opentelemetrycollector
kubectl get ds
kubectl describe ds adot-logs-collector
kubectl get pods

# Verify if this collector is part of ADOT Operator installed via EKS Addon
kubectl describe ds adot-logs-collector | grep operator

# Restart Retail Apps
./restart-retailapp.sh

# Review ADOT Collector Logs
kubectl get pods
kubectl logs -f <POD-NAME>
or
kubectl logs -f -l  app.kubernetes.io/name=adot-logs-collector --max-log-requests 10

Step-04: Verify Logs in CloudWatch

  • Go to AWS CloudWatch -> Logs -> Log Management

Step-05: Run Queries in Log Insights

  • Go to AWS CloudWatch -> Logs -> Log Insights
    # Query-1: Show All Logs (Latest First)
fields @timestamp, @log, @message
| sort @timestamp desc

# Query-2: Checkout HTTP requests only
fields @timestamp, @log, @message
| filter @message like /checkout/ and @message like /GET|POST|PUT|DELETE/
| sort @timestamp desc

# Query-3: Catalog HTTP requests only
fields @timestamp, @log, @message
| filter @message like /catalog/ and @message like /GET|POST|PUT|DELETE/
| sort @timestamp desc

Step-06: Clean-up

# Change Directory
cd 20_03_OpenTelemetry_Logs

# Deploy Logs ADOT Collector and Review Logs
kubectl delete -f 01_OpenTelemetry_Logs/01_adot_collector_logs.yaml

# Verify
kubectl get pods
kubectl get ds
