GitHub Actions CI: Build & Push UI Microservice to AWS ECR

This guide establishes a secure, GitOps-ready CI pipeline using GitHub Actions with OIDC authentication (no AWS keys stored in GitHub!). The pipeline automatically builds, tags, and pushes Docker images to Amazon ECR, then updates Helm values to trigger ArgoCD deployments.

Prerequisites

Before starting, ensure you have:

  • [x] AWS CLI configured with appropriate permissions
  • [x] GitHub repository with ui microservice code
  • [x] Basic understanding of Docker, ECR, and Helm
  • [x] GitHub Actions enabled in your repository

What This Pipeline Achieves

Code Change -> GitHub Actions -> Build Image -> Push to ECR -> Update Helm Values -> ArgoCD Deploys

Key Features: - Secure OIDC authentication (no long-lived AWS credentials) - Dual tagging strategy (latest + sha-commit) - GitOps-ready (auto-updates Helm values) - Fast, automated CI triggered on code changes

GitOps Full Flow (DevOps CI and CD combined flow)

Developer Pushes Code to src/ui/src/**
            |
            | (1) Triggers GitHub Actions workflow
            v
    GitHub Actions Runner
            |
            | (2) Builds Docker image
            | (3) Pushes to ECR with tags: latest + sha-a1b2c3d
            | (4) Updates chart/values-ui.yaml (tag: sha-a1b2c3d)
            | (5) Commits and pushes to Git
            v
       Git Repository (main branch)
            |
            | (6) ArgoCD polls Git every 3 minutes
            v
      ArgoCD Detects Change
            |
            | (7) Syncs and deploys new image
            v
        EKS Cluster (Running Pods)

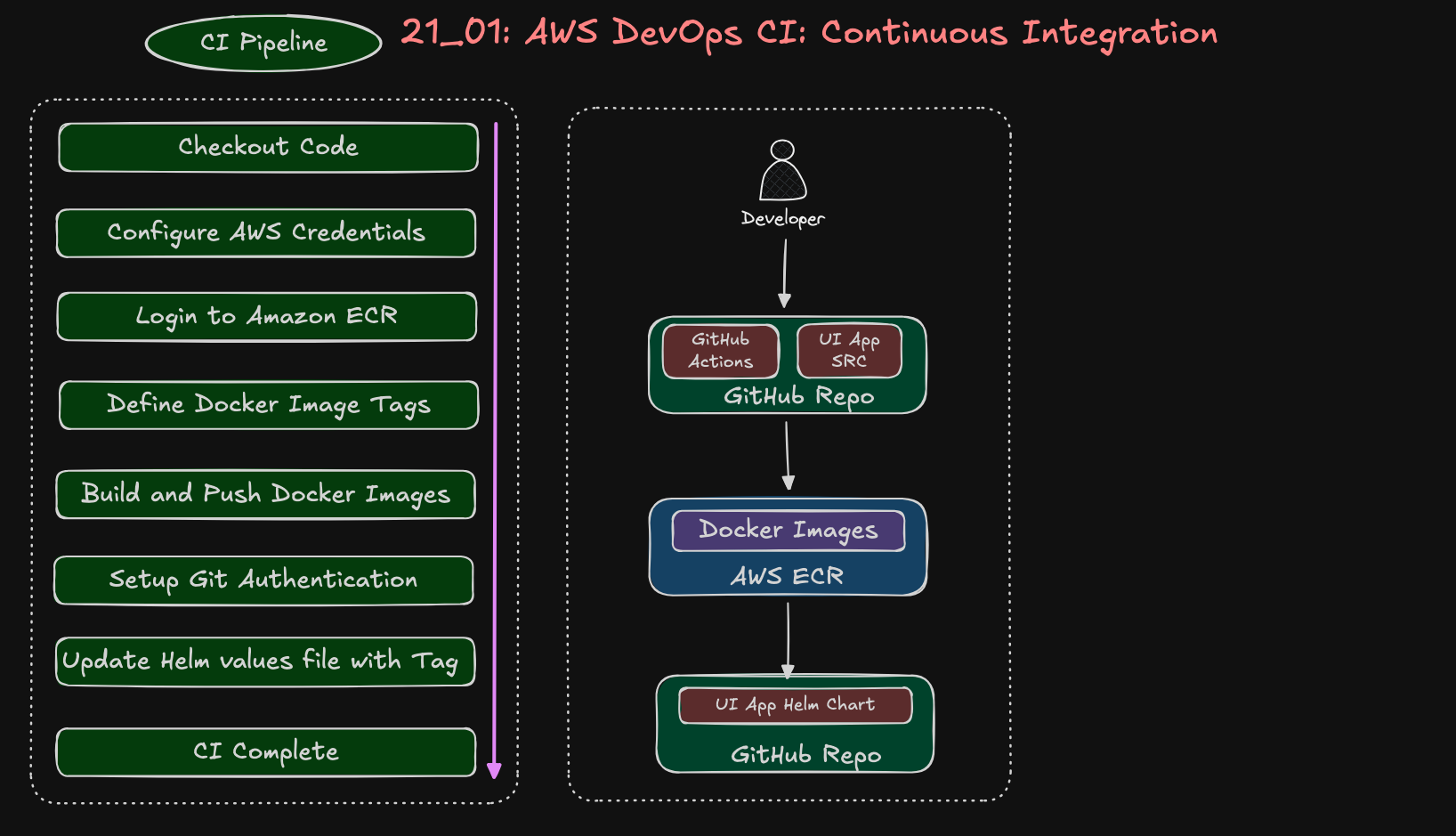

CI Pipeline Flow

CI Pipeline Flow

Other Images for Reference

CI Pipeline Flow

CI Pipeline Flow

CI Pipeline Flow

CI Pipeline Flow

Step-01: Create ECR Repository

# Create ECR repository for UI microservice
aws ecr create-repository \
  --repository-name retail-store/ui \
  --region us-east-1

# Expected output:
# {
#     "repository": {
#         "repositoryArn": "arn:aws:ecr:us-east-1:123456789012:repository/retail-store/ui",
#         "repositoryName": "retail-store/ui",
#         "repositoryUri": "123456789012.dkr.ecr.us-east-1.amazonaws.com/retail-store/ui"
#     }
# }

Note: Save the repositoryUri - you'll need it later!

Step-02: Create GitHub OIDC IAM Role

Step-02-01: Set Environment Variables

# Set your configuration
AWS_REGION="us-east-1"
ACCOUNT_ID=$(aws sts get-caller-identity --query Account --output text)
GITHUB_REPO="stacksimplify/aws-devops-github-actions-ecr-argocd3"  # UPDATE with YOUR repo
ROLE_NAME="github-actions-oidc-role-ui3"

# Verify variables are set correctly
echo "AWS Region: $AWS_REGION"
echo "Account ID: $ACCOUNT_ID"
echo "GitHub Repo: $GITHUB_REPO"
echo "IAM Role Name: $ROLE_NAME"

IMPORTANT: Replace GITHUB_REPO with your actual repository path (format: owner/repo-name)

Step-02-02: Generate Trust Policy

# Generate trust-policy.json with automatic variable substitution
cat > trust-policy.json <<EOF
{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "Federated": "arn:aws:iam::${ACCOUNT_ID}:oidc-provider/token.actions.githubusercontent.com"
      },
      "Action": "sts:AssumeRoleWithWebIdentity",
      "Condition": {
        "StringLike": {
          "token.actions.githubusercontent.com:sub": "repo:${GITHUB_REPO}:*"
        }
      }
    }
  ]
}
EOF

# Verify the generated file
echo "Trust policy created. Contents:"
cat trust-policy.json

What this does: Allows GitHub Actions from your repository to assume this IAM role using OIDC tokens (no AWS keys needed!)

Step-02-03: Create IAM Role

# Verify the trust policy before creating role
cat trust-policy.json | jq '.'

# Create the IAM role
aws iam create-role \
  --role-name $ROLE_NAME \
  --assume-role-policy-document file://trust-policy.json

# Expected output:
# {
#     "Role": {
#         "RoleName": "github-actions-oidc-role-ui3",
#         "Arn": "arn:aws:iam::123456789012:role/github-actions-oidc-role-ui3",
#         ...
#     }
# }

Copy the Role ARN - you'll need it in Step-03!

Step-02-04: Attach ECR Permissions

# Attach AWS managed policy for ECR push/pull access
aws iam attach-role-policy \
  --role-name $ROLE_NAME \
  --policy-arn arn:aws:iam::aws:policy/AmazonEC2ContainerRegistryPowerUser

# Verify policy is attached
aws iam list-attached-role-policies --role-name $ROLE_NAME

What this grants: - [x] Push images to ECR - [x] Pull images from ECR - [x] Manage ECR repositories - [x] Get ECR authentication tokens

Step-02-05: Create the OIDC Provider in Your AWS Account

# List OIDC Providers
aws iam list-open-id-connect-providers

# Create OIDC Provider
aws iam create-open-id-connect-provider \
  --url https://token.actions.githubusercontent.com \
  --client-id-list sts.amazonaws.com

# List OIDC Providers
aws iam list-open-id-connect-providers

Step-03: Configure GitHub Actions Workflow

Step-03-00: Create GitHub Repository and Copy Files

  • Repo Name: aws-devops-github-actions-ecr-argocd2
  • COPY FILES: COPY ALL FILES FROM **github-files** directory

Step-03-01: Update Workflow File

Edit .github/workflows/build-push-ui.yaml and update the role ARN:

- name: Configure AWS credentials via OIDC
  uses: aws-actions/configure-aws-credentials@v4
  with:
    role-to-assume: arn:aws:iam::<ACCOUNT_ID>:role/github-actions-oidc-role-ui3  # Replace <ACCOUNT_ID>
    aws-region: ${{ env.AWS_REGION }}

Replace <ACCOUNT_ID> with your actual AWS account ID from Step-02-01.

Step-03-02: Verify Workflow Configuration

Key workflow settings to verify:

env:
  AWS_REGION: us-east-1                    # Your region
  ECR_REPOSITORY: retail-store/ui          # Your ECR repo name

permissions:
  id-token: write   # Required for OIDC
  contents: write   # Required to commit Helm updates

Full workflow file reference: .github/workflows/build-push-ui.yaml

Step-04: Push Configuration to GitHub

# Navigate to your repository
cd aws-devops-github-actions-ecr-argocd3

# Stage all changes
git add .

# Commit with descriptive message
git commit -m "Add GitHub Actions CI workflow for UI microservice"

# Push to main branch (triggers the workflow!)
git push origin main

Note: This initial push will NOT trigger the workflow because no changes were made to src/ui/src/**. We'll test it in Step-06.

Step-05: Understanding the Workflow

What This Workflow Does

Step Action Description
1. Checkout code actions/checkout@v4 Clones repository code to GitHub Actions runner
2. Configure AWS credentials configure-aws-credentials@v4 Uses OIDC to assume IAM role (keyless auth)
3. Login to Amazon ECR amazon-ecr-login@v2 Authenticates Docker with ECR using temporary credentials
4. Define image tags Shell script Generates latest and sha-<commit> tags (e.g., sha-a1b2c3d)
5. Build and push images docker build + docker push Builds image once, pushes both tags to ECR
6. Setup Git auth Git config Configures ci-bot identity with GITHUB_TOKEN
7. Update Helm values sed + git commit/push Updates chart/values-ui.yaml with SHA tag, pushes to Git
8. CI Complete Log output Confirms successful completion

Why Two Image Tags?

The workflow pushes the same Docker image with two different tags:

1. latest Tag

  • Purpose: Convenience reference for local testing
  • Behavior: Mutable (always points to most recent build)
  • Used in: Local development, debugging
  • NOT used in: Production Helm charts

2. sha-<commit> Tag (Example: sha-a1b2c3d)

  • Purpose: Immutable reference tied to Git commit
  • Behavior: Never changes (permanent)
  • Used in: chart/values-ui.yaml (production deployments)
  • Benefits:
  • [x] Full traceability (Git commit -> Docker image -> Deployment)
  • [x] Safe rollbacks to exact versions
  • [x] Prevents "tag drift" issues

Example in Helm values file:

image:
  repository: 180789647333.dkr.ecr.us-east-1.amazonaws.com/retail-store/ui
  tag: sha-a1b2c3d  # SHA tag only (immutable)
  # NOT using "latest" - too risky for production!

GitOps Flow Explained

Developer Pushes Code to src/ui/src/**
            |
            | (1) Triggers GitHub Actions workflow
            v
    GitHub Actions Runner
            |
            | (2) Builds Docker image
            | (3) Pushes to ECR with tags: latest + sha-a1b2c3d
            | (4) Updates chart/values-ui.yaml (tag: sha-a1b2c3d)
            | (5) Commits and pushes to Git
            v
       Git Repository (main branch)
            |
            | (6) ArgoCD polls Git every 3 minutes
            v
      ArgoCD Detects Change
            |
            | (7) Syncs and deploys new image
            v
        EKS Cluster (Running Pods)

Key Principle: Git is the single source of truth for both code and deployment state!

Step-06: Test the CI Pipeline

Step-06-01: Make a Code Change

Let's update the UI version to trigger the workflow:

# Sync your local repo (always pull latest first!)
git pull origin main
or
./git-pull.sh

# Option 1: Use provided script
./update-ui-home-html.sh V102

# Option 2: Manual edit
# Edit src/ui/src/home.html and change the version:

Find this line:

<h1 class="text-4xl sm:text-5xl font-bold text-white mb-6">
  The most public <span class="text-primary-400">Secret Shop - Version: V101</span>
</h1>

Change to:

<h1 class="text-4xl sm:text-5xl font-bold text-white mb-6">
  The most public <span class="text-primary-400">Secret Shop - Version: V102</span>
</h1>

Step-06-02: Commit and Push

# Stage changes
git add src/ui/src/home.html

# Commit with version in message
git commit -m "Update UI to Version V102"

# Push to trigger workflow
git push origin main

or
./git-push.sh

SUCCESS: Workflow will trigger automatically because we modified src/ui/src/**

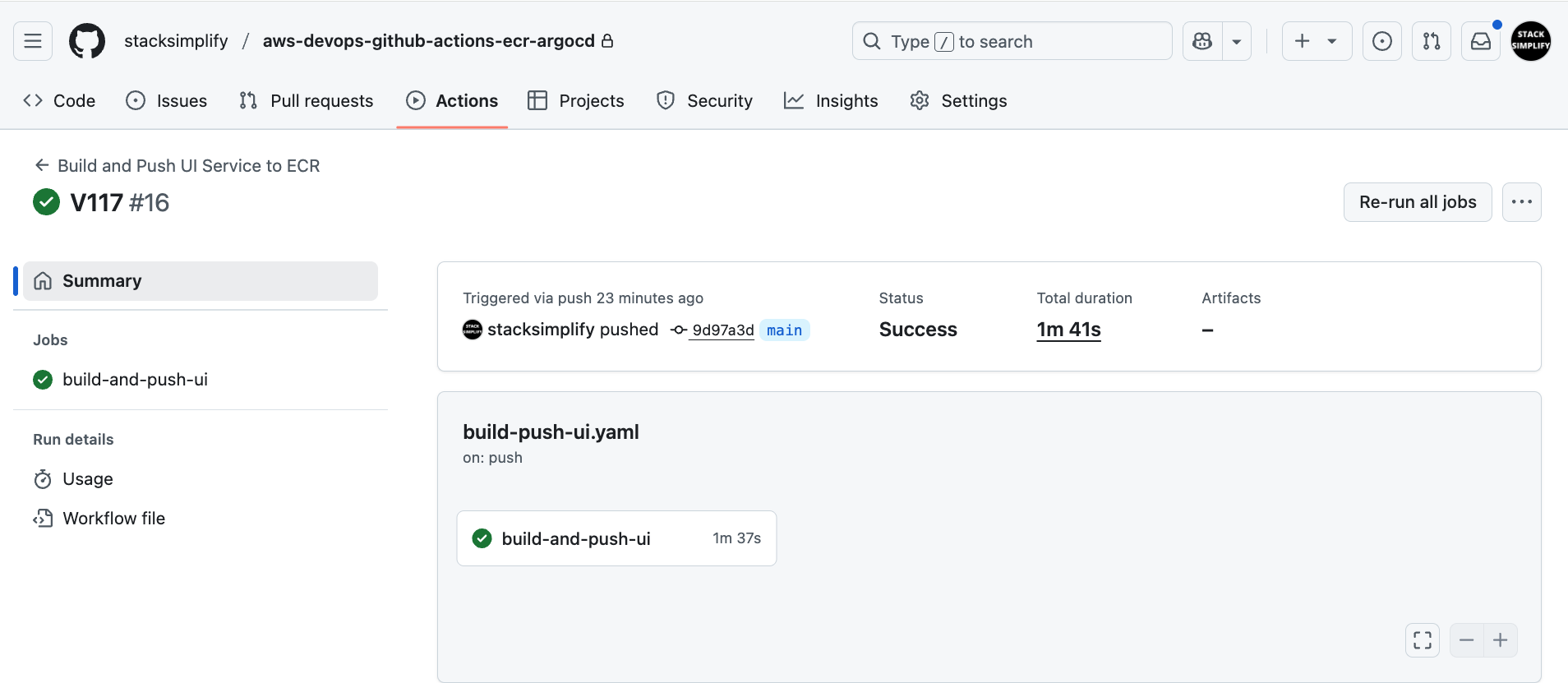

Step-07: Monitor GitHub Actions Workflow

Step-07-01: Watch the Pipeline

  1. Go to your GitHub repository
  2. Click Actions tab
  3. You should see a new workflow run: "Build and Push UI Service to ECR"

Live example: GitHub Actions for this Repo

Expected timeline: - Checkout code: ~5 seconds - Configure AWS + Login ECR: ~10 seconds - Build Docker image: ~20-40 seconds - Push to ECR: ~10-20 seconds - Update Helm values: ~5 seconds - Total: ~1-2 minutes

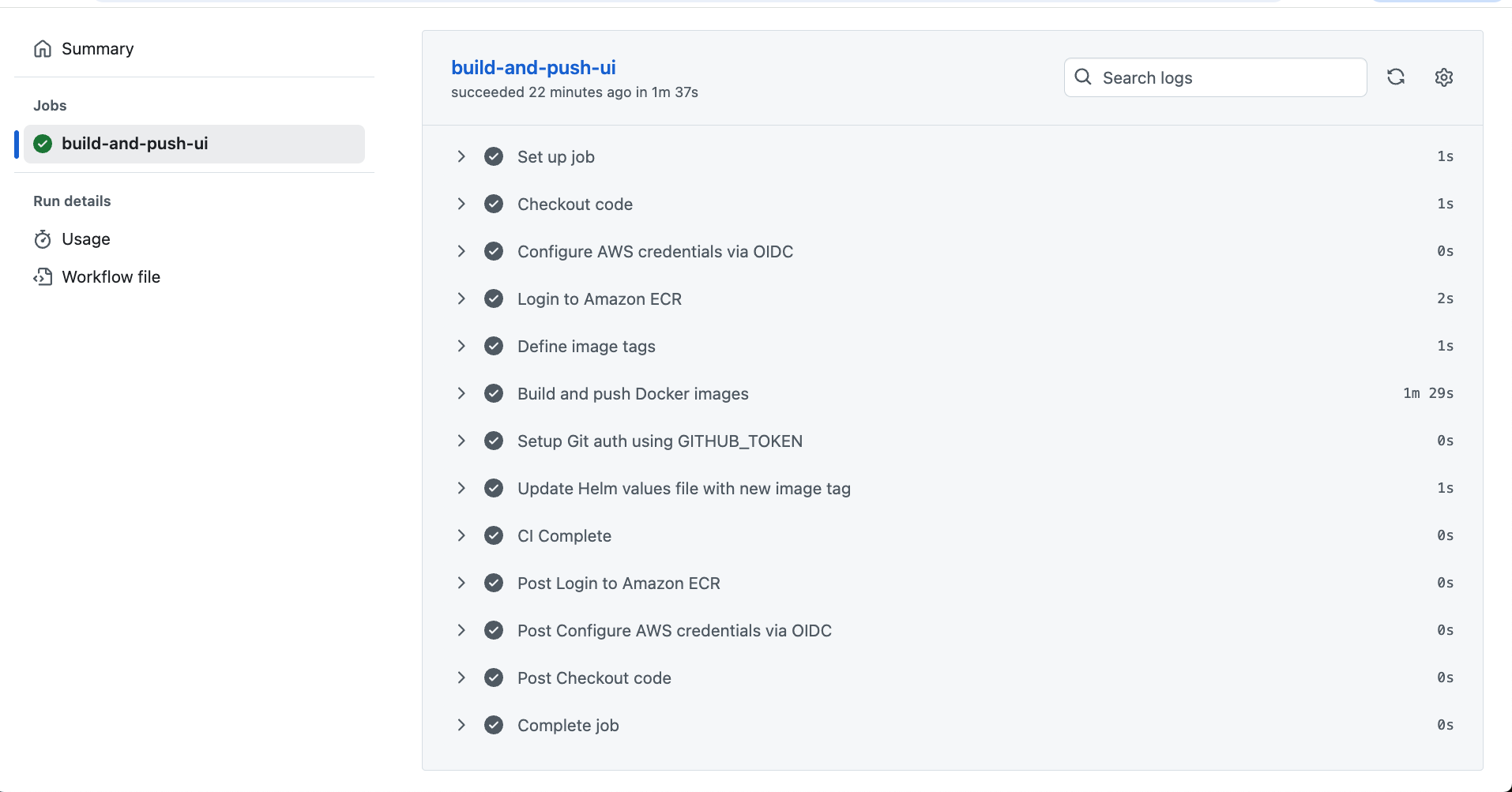

Step-07-02: Verify Successful Completion

Look for these success indicators in the logs:

[PASS] Checkout code
[PASS] Configure AWS credentials via OIDC
[PASS] Login to Amazon ECR
[PASS] Define image tags
[PASS] Build and push Docker images
[PASS] Setup Git auth using GITHUB_TOKEN
[PASS] Update Helm values file
[PASS] CI Complete

Step-08: Validate CI Outputs

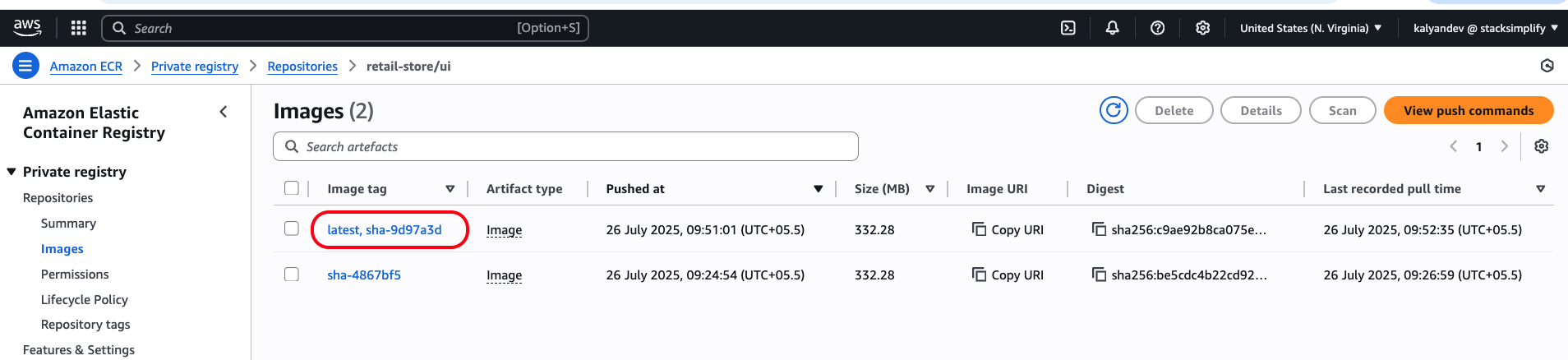

Step-08-01: Verify ECR Image

Option 1: AWS Console 1. Go to Amazon ECR -> Repositories -> retail-store/ui 2. You should see two new image tags: - latest - sha-a1b2c3d (your actual commit SHA)

Option 2: AWS CLI

# List all images in the repository
aws ecr describe-images \
  --repository-name retail-store/ui \
  --region us-east-1

# Expected output:
# {
#     "imageDetails": [
#         {
#             "imageTags": ["latest", "sha-a1b2c3d"],
#             "imagePushedAt": "2025-01-02T...",
#             "imageSizeInBytes": 123456789
#         }
#     ]
# }

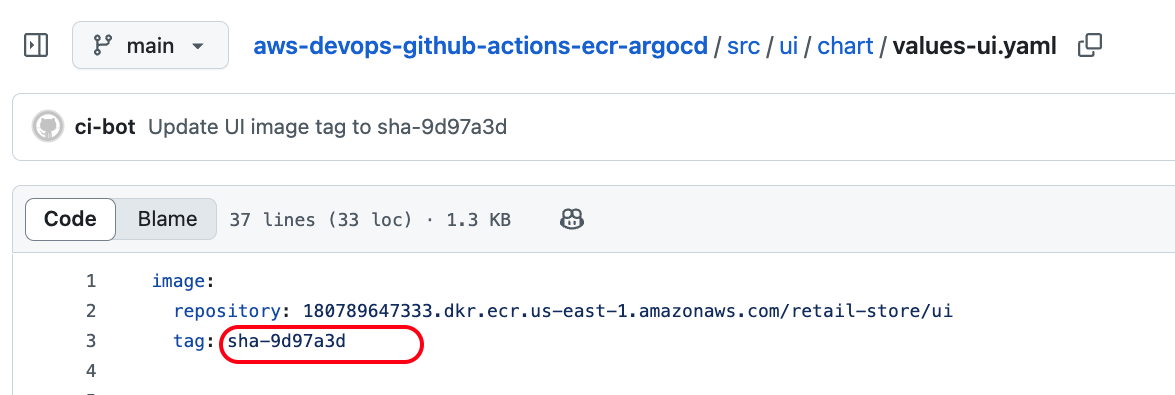

Step-08-02: Verify Updated Helm Values File

Option 1: GitHub Web UI 1. Navigate to src/ui/chart/values-ui.yaml 2. Look for the image.tag field 3. It should show the new SHA tag that was just pushed

Option 2: Git Pull and Check Locally

# Pull latest changes (includes the automated commit)
git pull origin main

# View the updated values file
cat src/ui/chart/values-ui.yaml | grep -A 2 "image:"

# Expected output:
# image:
#   repository: 180789647333.dkr.ecr.us-east-1.amazonaws.com/retail-store/ui
#   tag: sha-a1b2c3d

Option 3: Check Git Commit History

# View recent commits
git log --oneline -5

# You should see a commit from "ci-bot":
# a1b2c3d Update UI image tag to sha-a1b2c3d
# ...

Step-08-03: Understanding the Image URIs

Your Docker images are now available at these URIs:

# Latest tag (mutable)
180789647333.dkr.ecr.us-east-1.amazonaws.com/retail-store/ui:latest

# SHA tag (immutable - used in production)
180789647333.dkr.ecr.us-east-1.amazonaws.com/retail-store/ui:sha-a1b2c3d

Troubleshooting

Issue 1: Workflow Not Triggering

Symptom: No workflow run appears after pushing code

Causes & Solutions:

Cause Solution
Changes not in src/ui/src/** Verify you modified files in the correct path
Workflow file syntax error Check .github/workflows/build-push-ui.yaml with a YAML validator
Workflow disabled Go to Actions -> Enable workflows if disabled

Issue 2: OIDC Authentication Fails

Symptom: Error: "Not authorized to perform sts:AssumeRoleWithWebIdentity"

Solutions:

# 1. Verify OIDC provider exists in IAM
aws iam get-open-id-connect-provider \
  --open-id-connect-provider-arn arn:aws:iam::$ACCOUNT_ID:oidc-provider/token.actions.githubusercontent.com

# 2. If not found, create it:
aws iam create-open-id-connect-provider \
  --url https://token.actions.githubusercontent.com \
  --client-id-list sts.amazonaws.com \
  --thumbprint-list 6938fd4d98bab03faadb97b34396831e3780aea1

# 3. Verify trust policy has correct GitHub repo
aws iam get-role --role-name github-actions-oidc-role-ui3 | jq '.Role.AssumeRolePolicyDocument'

# 4. Ensure repository name matches exactly (case-sensitive!)

Issue 3: ECR Push Failed

Symptom: Error: "denied: User is not authorized to perform ecr:PutImage"

Solution:

# Verify policy is attached
aws iam list-attached-role-policies --role-name github-actions-oidc-role-ui3

# Re-attach if missing
aws iam attach-role-policy \
  --role-name github-actions-oidc-role-ui3 \
  --policy-arn arn:aws:iam::aws:policy/AmazonEC2ContainerRegistryPowerUser

Issue 4: Git Push to Helm Values Failed

Symptom: Error: "fatal: could not read Username"

Causes: - GITHUB_TOKEN permissions insufficient - Repository settings blocking pushes from Actions

Solution: 1. Go to Repository Settings -> Actions -> General 2. Scroll to Workflow permissions 3. Select "Read and write permissions" 4. Save changes and re-run workflow

Issue 5: Docker Build Fails

Symptom: Error during "Build and push Docker images" step

Debug steps:

# Test Docker build locally
cd src/ui
docker build -t test-ui .

# Check Dockerfile syntax
cat Dockerfile

# Verify all required files exist
ls -la

Success Checklist

After completing all steps, verify:

  • [x] ECR repository retail-store/ui exists
  • [x] IAM role github-actions-oidc-role-ui3 created with OIDC trust policy
  • [x] ECR push policy attached to IAM role
  • [x] GitHub Actions workflow file updated with correct role ARN
  • [x] Workflow triggered on code push to src/ui/src/**
  • [x] Two image tags pushed to ECR (latest + sha-<commit>)
  • [x] Helm values-ui.yaml updated with SHA tag
  • [x] Git commit from ci-bot visible in repository history

Next Steps

Now that your CI pipeline is working:

  1. Set up ArgoCD to watch the chart/values-ui.yaml file
  2. Configure Auto-Sync in ArgoCD to deploy on Git changes
  3. Test the full CD flow by making another UI change
  4. Replicate for other microservices (catalog, cart, checkout, assets)

Additional Resources

Summary

You've successfully built a production-ready CI pipeline with:

  • Zero secrets stored in GitHub (OIDC-based authentication)
  • Immutable image tagging (SHA-based versioning)
  • GitOps-ready workflow (auto-updates Helm values)
  • Fast, automated builds (triggers on code changes)
  • ECR integration (secure, private container registry)

Your images are now ready for ArgoCD to deploy to EKS!

📬 Stay Updated — Weekly Terraform tips, Kubernetes guides & cost optimization strategies.

🎉 New Course
Ultimate DevOps Real-World Project Implementation on AWS
$15.99 $84.99 81% OFF
DEVOPS2026FEB
Enroll Now on Udemy →
🎉 Offer
