ArgoCD Deployment for Retail UI (Helm-based GitOps)¶

This guide covers deploying the retail-ui microservice using ArgoCD + Helm in a GitOps-driven CI/CD workflow.

Step-01: Introduction¶

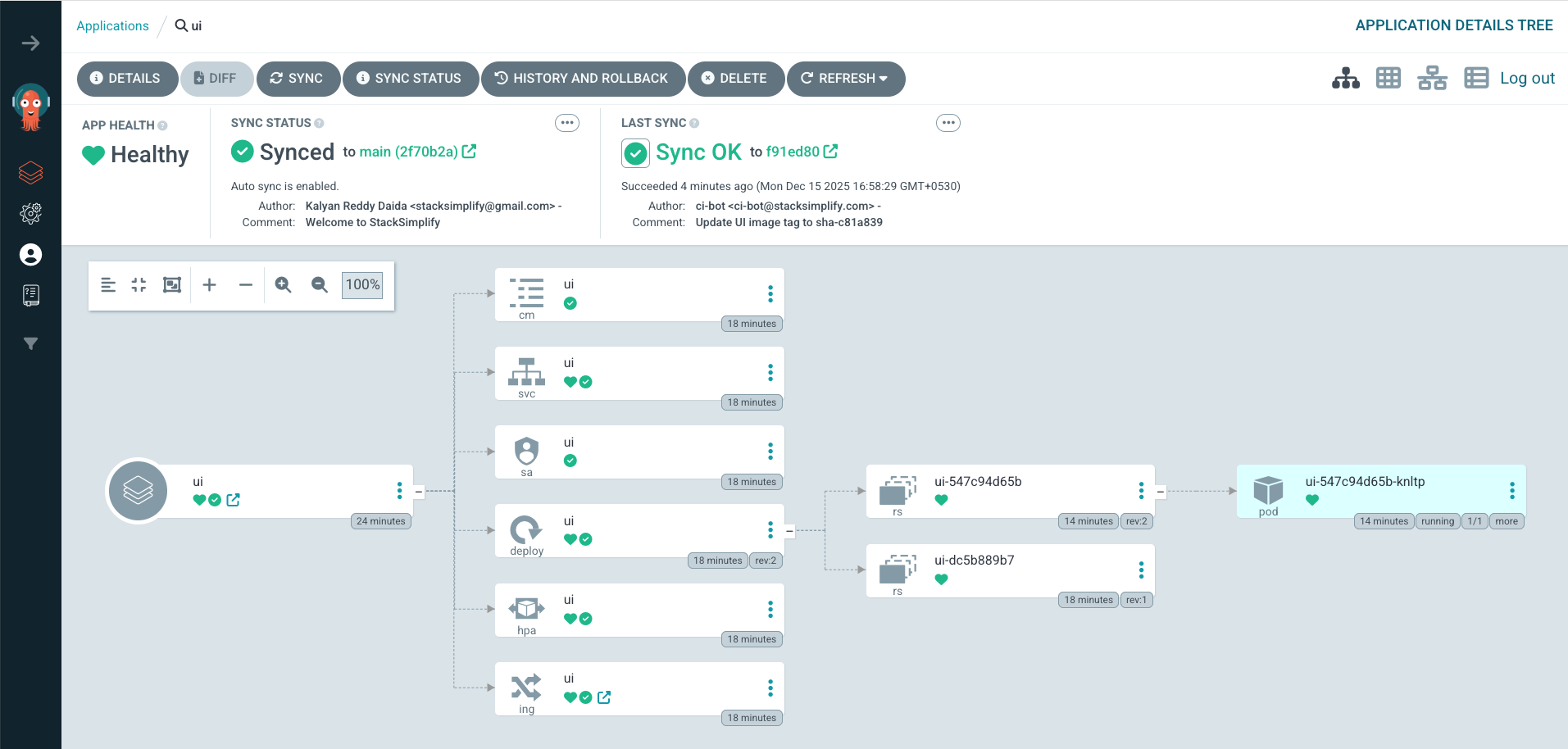

ArgoCD Retail UI Application

This example demonstrates using ArgoCD to deploy a Helm-based microservice (ui) from a GitHub repo into an EKS cluster.

Step-02: Add Git Repository Authentication (Only for Private Repos)¶

Skip this step if your GitHub repo is public. In this demo, the repository aws-devops-github-actions-ecr-argocd3 will be made public by the time you're implementing it, so authentication won’t be required in most cases.

ArgoCD can access public repos without any authentication.

If your repository is private, ArgoCD needs credentials to clone the repo and fetch manifests. Without this, you'll see errors like:

ComparisonError: failed to load target state: authentication required

✅ You can fix this by registering your private Git repo with ArgoCD using:

A GitHub Personal Access Token (PAT), or
SSH key-based authentication (advanced)

Step-02-00: Install ArgoCD CLI¶

ArgoCD CLI Installation

# MacOs ArgoCD Install
brew install argocd

Step-02-01: Get ArgoCD Admin Password¶

kubectl get secret argocd-initial-admin-secret -n argocd \
  -o jsonpath="{.data.password}" | base64 --decode && echo

# ArgoCD - port-forward to access via localhost
kubectl port-forward svc/argocd-server -n argocd 8080:443

# Login to ArgoCD
argocd login localhost:8080 --username admin --password <copied-password> --insecure

# Verify argocd version
argocd version

Step-02-03: Register Your GitHub Repo with ArgoCD¶

# Template: Register Your GitHub Repo with ArgoCD
argocd repo add https://github.com/stacksimplify/aws-devops-github-actions-ecr-argocd3.git \
  --username <your-github-username> \
  --password <your-personal-access-token> \
  --name aws-devops-github-actions-ecr-argocd3


argocd repo add https://github.com/stacksimplify/aws-devops-github-actions-ecr-argocd3.git \
  --username stacksimplify \
  --password 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 \
  --name aws-devops-github-actions-ecr-argocd3

✅ Once added, verify in the ArgoCD UI:

Go to Settings → Repositories
Confirm repo shows as "Successful" under Connection Status

How to get Github Personal Access Token?¶

Go to Github -> Settings -> Developer Settings
Go to Personal Access Tokens -> Tokens (classic) -> Generate new token

Step-03: Review ArgoCD Application Manifest¶

This file is located at: argocd-manifests/application-ui.yaml

apiVersion: argoproj.io/v1alpha1
kind: Application
metadata:
  name: ui
  namespace: argocd
spec:
  project: default
  source:
    repoURL: https://github.com/stacksimplify/aws-devops-github-actions-ecr-argocd3.git
    targetRevision: main
    path: src/ui/chart
    helm:
      valueFiles:
        - values-ui.yaml
  destination:
    server: https://kubernetes.default.svc
    namespace: default
  syncPolicy:
    automated:
      prune: true    # Auto-delete resources not in Git
      selfHeal: true # Auto-sync if drift detected
    syncOptions:
      - CreateNamespace=true

This file is located at: argocd-manifests/application-ui.yaml It defines how ArgoCD should deploy the retail-ui microservice using your Git repository and Helm chart.

Breakdown of Key Fields:¶

`metadata.name` & `metadata.namespace`¶

name: ui
namespace: argocd

This tells ArgoCD:

The application is called ui
It will be managed by the ArgoCD instance running in the argocd namespace

`source`¶

repoURL: https://github.com/stacksimplify/aws-devops-github-actions-ecr-argocd3.git
targetRevision: main
path: src/ui/chart

This defines where ArgoCD should pull the deployment configuration from:

repoURL: The GitHub repo where your Helm chart lives
targetRevision: Branch name (usually main)
path: Directory path to the Helm chart within the repo

`helm.valueFiles`¶

helm:
  valueFiles:
    - values-ui.yaml

This tells ArgoCD which values file to use when rendering the Helm chart. You're overriding defaults in values.yaml with EKS-specific settings in values-ui.yaml.

`destination`¶

server: https://kubernetes.default.svc
namespace: default

This tells ArgoCD where to deploy the app:

server: Deploy into the same Kubernetes cluster where ArgoCD is installed
namespace: Target namespace (default for now; can be retailapps later)

`syncPolicy`¶

automated:
  prune: true
  selfHeal: true
syncOptions:
  - CreateNamespace=true

These settings control how and when ArgoCD syncs the application:

automated: Enables automatic sync on any Git change
prune: Deletes old resources no longer defined in Git
selfHeal: Restores drift if someone manually edits the app in the cluster
CreateNamespace=true: Creates the target namespace if it doesn't exist

Summary¶

This manifest makes your app fully Git-driven and self-healing:

You control deployments via Git commits
ArgoCD ensures what's in Git is always what's in the cluster

Step-04: Deploy ArgoCD Application¶

kubectl apply -f argocd-manifests/application-ui.yaml

Step-05: Review Application in ArgoCD UI¶

Port-forward ArgoCD UI:

kubectl port-forward svc/argocd-server -n argocd 8080:443

Open your browser:

https://localhost:8080

Login:

Username: admin
Password: (from step 2 or script output)

# Get ArgoCD Admin Password
kubectl get secret argocd-initial-admin-secret -n argocd \
  -o jsonpath="{.data.password}" | base64 --decode && echo

Verify the application is Synced and Healthy

What Does "Synced" Mean?¶

ArgoCD compares Git state with cluster state
If the app is not present or is outdated, it deploys it
If the app is already up to date, it reports Synced
ArgoCD will auto-correct any drift if selfHeal: true is enabled

🎉 🎉 🎉 You're now running GitOps-based CD with ArgoCD, EKS, Helm, and GitHub Actions!
